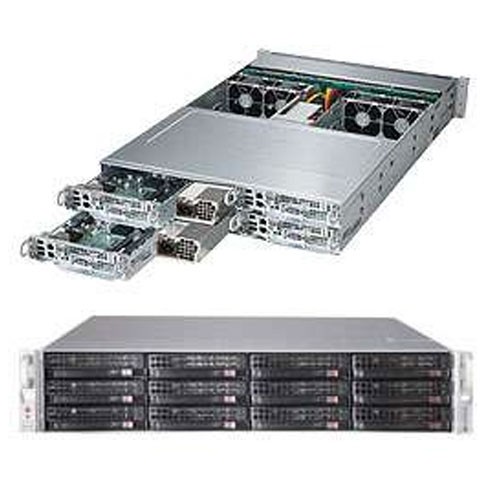

Supermicro Super X9DRT-PIBF Server motherboard and CSE-827HQ+-R2K04B 2U Rackmount Chassis.
|
Product SKU
| |
|---|---|
| SYS-6027PR-HC0FR | • SuperServer 6027PR-HC0FR (Black) |
|
Motherboard
| |
|---|---|
| Super X9DRT-PIBF | |
|
Processor/Cache (per node)
| |
|---|---|
| CPU | • Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 (up to 135W TDP *) |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| Note | • † BIOS version 3.0 or above is required |
|
* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
|
System Memory (per node)
| |
|---|---|
| Memory Capacity | • 16x 240-pin DDR3 DIMM slots • Supports up to 1TB DDR3 ECC LRDIMM • Supports up to 512GB DDR3 ECC Registered memory (RDIMM) |
| Memory Type |
• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V and 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
|
On-Board Devices
| |
|---|---|
| Chipset | • Intel® C602 chipset |
| Infiniband | • Mellanox ConnectX-3 FDR Infiniband 56Gb/s Controller |
| SAS | • LSI 3008 SAS3 (12Gbps) controller;
RAID 0, 1, 10 support • Note: In order to support the LSI RAID Controllers, both CPU socket must be populated |
| IPMI |
• Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers |
• Intel® i350 Dual Port Gigabit Ethernet |
| Graphics | • Matrox G200eW |
|
Input/Output (per node)
| |
|---|---|
| SAS | • 3x SAS3 (12Gbps) ports |
| LAN | • 2x RJ45 Gigabit Ethernet LAN ports |
| Infiniband | • 1 external QSFP Infiniband connector |
| USB |
• 2x USB 2.0 ports total (2x rear) |
| VGA | • 1x VGA port |
| Serial Port / Header |
• 1x Fast UART 16550 port / 1 Header (internal) |
| Others | • 1x SATADOM support on the motherboard
|
|
Chassis
| |
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-827HQ+-R2K04B |
|
Dimension and Weight
| |
|---|---|
| Height | • 3.47" (88mm) |
| Width | • 17.25" (438mm) |
| Depth | • 30.5" (774mm) |
| Gross Weight | • 90 lbs (40.9kg) |
| Available Color | • Black |
|
Front Panel
| |
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | • Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
|
Expansion Slots (per node)
| |
|---|---|
| PCI-E |
• 1x PCI-E 3.0 x16 Low-profile slot |
| 0 Slot | • 1x "0 slot" (x16) (Both CPUs need to be installed for full access to PCI-E slots) |
|
Drive Bays (per node)
| |
|---|---|
| Hot-swap |
• 3x 3.5" Hot-swap SAS/SATA HDD trays |
|
System Cooling
| |
|---|---|
| Fans |
• 4x 8cm heavy duty PWM fans with optimal fan speed control |
|
Power Supply (76mm width)
| |
|---|---|
| 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1000W/2000W |
| Dimension
(W x H x L) |
• 76 x 40.4 x 336 mm |
| Input | • 100-127 Vac / 12-9.5 A / 50-60 Hz • 200-220 Vac / 10-9.5 A / 50-60 Hz • 220-230 Vac / 10-9.8 A / 50-60 Hz • 230-240 Vac / 10-9.8 A / 50-60 Hz • 200-240 Vac / 11.8-10 A / 50-60 Hz (UL/cUL only) |
| +12V | • Max: 83.3A & Min: 0A (100-127 Vac) • Max: 150A & Min: 0A (200-220 Vac) • Max: 165A & Min: 0A (220-230 Vac) • Max: 166.7A & Min: 0A (230-240 Vac) • Max: 166.7A & Min: 0A (200-240 Vac)(UL/cUL only) |
| +5Vsb | • Max: 1A / Min: 0A |
| Output Type | • 27 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
|
System Bios
| |
|---|---|
| Bios Type |
• 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature: 10°C to 35°C (50°F to 95°F) |
