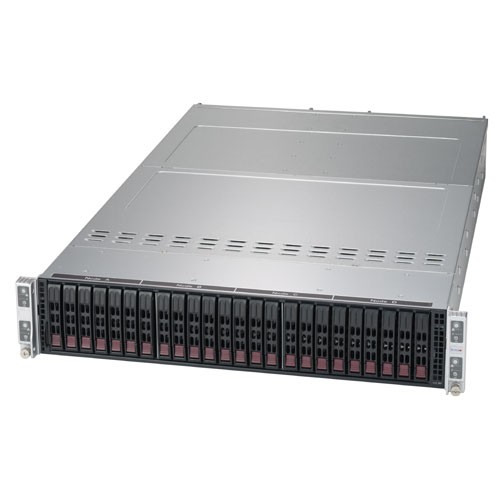

  • Supermicro 2U Rackmount SYS-6029TP-HTR - Angle

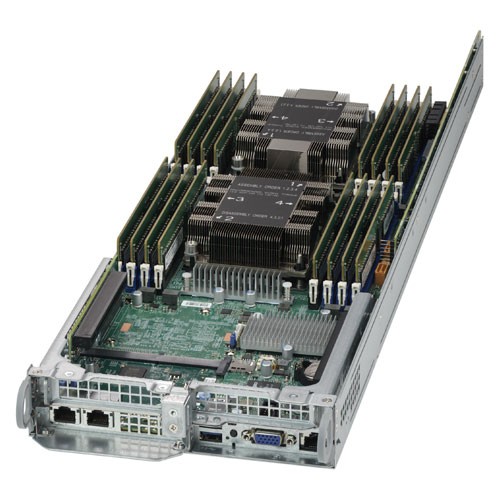

  • Supermicro 2U Rackmount SYS-6029TP-HTR - Node

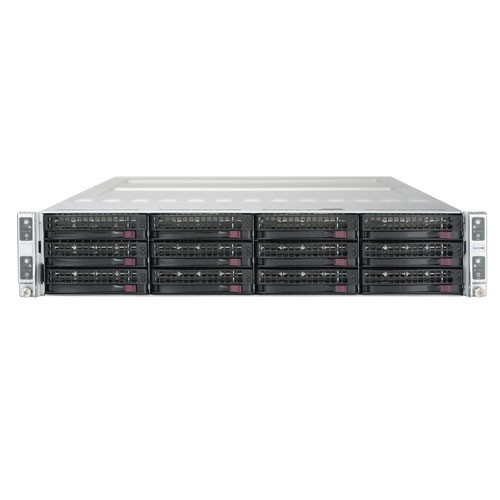

  • Supermicro 2U Rackmount SYS-6029TP-HTR - Front

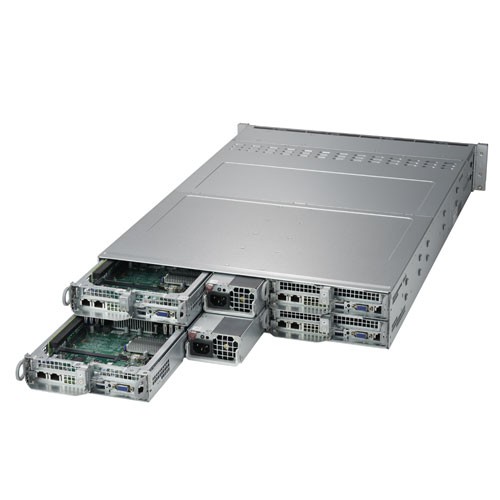

  • Supermicro 2U Rackmount SYS-6029TP-HTR - Back

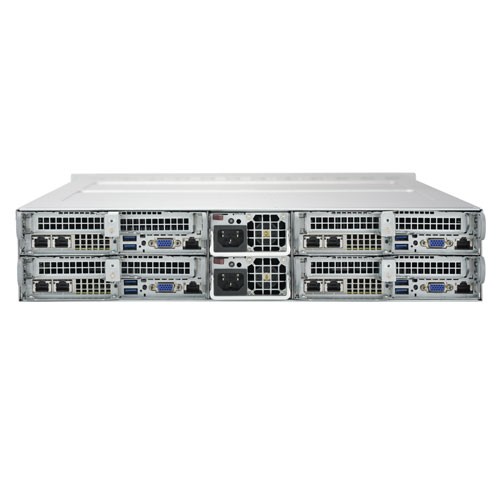

  • Supermicro 2U Rackmount SYS-6029TP-HTR - Rear

Supermicro 2U TwinPro SuperServer SYS-6029TP-HTR

Call for price.
SKU:SYS-6029TP-HTR

Quick Overview:

Key Features:
• Compute Intensive Application | HPC/Data Center |
   Enterprise Server | Financial Analysis |
   Mission-Critical Applications
• Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
• 2 PCI-E 3.0 x16 slots
• Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
• 3 Hot-swap 3.5" SATA3 drive bays
• 2200W Redundant Power Supplies Titanium Level (96%)


Details

Supermicro SuperServer SYS-6029TP-HTR
Product SKU
• SuperServer 6029TP-HTR (Black)
Motherboard
     Super X11DPT-PS
Processor/Cache (per node)
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-165W with IVR
Cores • Up to 28 Cores with Intel® HT Technology
System Memory (per node)
Memory Capacity • 16 DIMM slots
• Up to 2TB ECC 3DS LRDIMM, 2TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10 support
Network
Connectivity
• Must bundle with at least one SIOM network card
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video • ASPEED AST2500 BMC
Input/Output (per node)
SATA • 3 SATA3 (6Gbps) ports
LAN • 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
VGA • 1 VGA port
Serial Port / Header • 1 Fast UART 16550 port / 1 Header (internal)
Others • 2 SATADOM support on the motherboard
System BIOS
BIOS Type • AMI 32MB SPI Flash ROM
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM,SPM,SUM
• SuperDoctor® 5
• Watchdog
Power Configurations   • ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 5+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature
• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Omni-Path Fabric CPUs  • Do not support
Chassis
Form Factor • 2U Rackmount
Model CSE-217HQ+-R2K20BP2
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.25" (438mm)
Depth • 28.5" (724mm)
Gross Weight • 90 lbs (40.9kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• UID button
LED • Power status LED
• Hard drive activity LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express

• 2 PCI-E 3.0 x16 Low-profile slots
• 1 SIOM card support

(Note: Must bundle with Network Card)

Drive Bays (per node)
Hot-swap

• 3 Hot-swap 3.5" SATA3 HDD trays

System Cooling
Fans • 4 Heavy duty 8cm PWM fans with optimal fan speed control
Power Supply
  2200W Redundant Power Supplies with PMBus
Total Output Power
and Input
• 1200W with Input 100-127Vac
• 1800W with Input 200-220Vac
• 1980W with Input 220-230Vac
• 2090W with Input 230-240Vac
• 2090W with Input 200-220Vac
• 2200W with Input 220-240Vac (for UL/cUL use only)
• 2090W with Input 230-240Vdc (for CCC only)
AC Input
Frequency
• 50-60Hz
Dimension
(W x H x L)
• 76 x 40 x 336 mm
+12V • Max: 100A / Min: 0A (100-127Vac)
• Max: 150A / Min: 0A (200-220Vac)
• Max: 165A / Min: 0A (220-230Vac)
• Max: 174.17A / Min: 0A (230-240Vac)
• Max: 183.3A / Min: 0A (220-240Vac)
5Vsb • Max: 1A / Min: 0A
Output Type • Backplanes (gold finger)
Certification • 80 Plus Titanium Level
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.


• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
