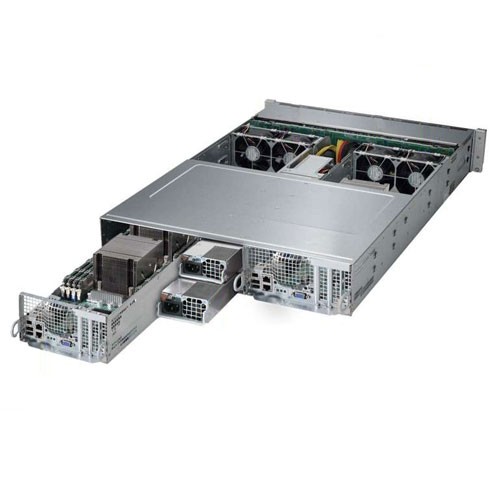

Details
or 6x SAS3) per node using Supermicro Super X10DRT-PT Server Motherboard and CSE-827HD+-R1K68B 2U Rackmount Chassis.
|
Product SKU
| |
|---|---|
| SYS-6028TP-DNCTR | • SuperServer 6028TP-DNCTR (Black) |
|
Motherboard
| |
|---|---|
| Super X10DRT-PT | |
|

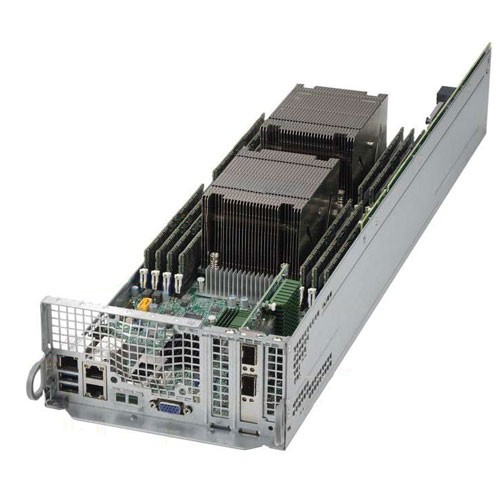

Processor/Cache (per node)
| |
|---|---|
| CPU | • Dual Socket R3 (LGA 2011) • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required |
|
* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
|
System Memory (per node)
| |
|---|---|
| Memory Capacity | • 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type |
• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| |
|---|---|
| Chipset | • Intel® C612 chipset |
| SAS | • LSI 3008 SAS3 (12Gbps) controller;
RAID 0, 1, 10 support • Note: In order to support NVMe drives, both CPU socket must be populated |
| IPMI |
• Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers |
• Intel® X540 Dual port 10GBase-T |
| Graphics | • ASPEED AST2400 BMC |
|

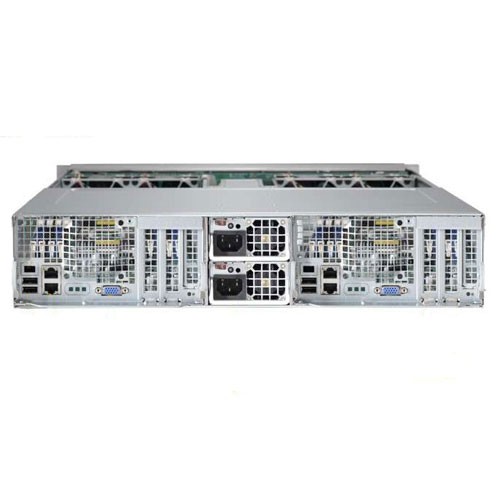

Input/Output (per node)
| |
|---|---|
| SAS | • 6x SAS3 (12Gbps) ports |
| LAN | • 2x RJ45 10GBase-T ports |
| USB |
• 2x USB 3.0 ports total (2x rear) |
| VGA | • 1x VGA port |
| Serial Port / Header |
• 1x Fast UART 16550 port / 1 Header (internal) |
| Others | • 1x mSATA (full size) and one SATADOM support on the daughter card
|
|
Chassis
| |
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-827HD+-R1K68B |
|
Dimension and Weight
| |
|---|---|
| Height | • 3.47" (88mm) |
| Width | • 17.25" (438mm) |
| Depth | • 30.5" (774mm) |
| Gross Weight | • 85 lbs (38.6kg) |
| Available Color | • Black |
|
Front Panel
| |
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | • Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
|
Expansion Slots (per node)
| |
|---|---|
| PCI-E |
• 1x PCI-E 3.0 x16 slot |
|
Drive Bays (per node)
| |
|---|---|
| Hot-swap |

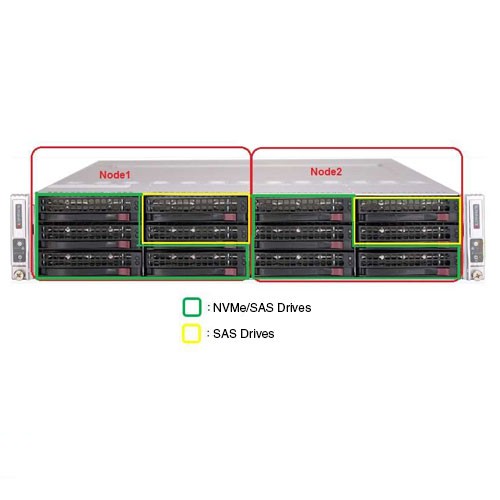

• 6x 3.5" Hot-swap drive bays: Up to 4x NVMe + 2x SAS3 or 6x SAS3 Note: NVMe support requires 2 CPUs installed |
|
System Cooling
| |
|---|---|
| Fans |
• 4x 8cm heavy duty PWM fans with optimal fan speed control |
|
Power Supply (76mm width)
| |
|---|---|
| 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | • 800W/1600W |
| Dimension (W x H x L) |
• 76 x 40.4 x 336 mm |
| Input | • 100-140Vac / 10-7A / 50-60Hz • 180-240Vac / 11-8A / 50-60Hz |
| +12V | • Max: 66A / Min: 0A (100-127Vac) • Max: 133A / Min: 0A (200-240Vac) |
| +5Vsb | • Max: 4A / Min: 0A |
| Output Type | • 27 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
|
System Bios
| |
|---|---|
| Bios Type |
• 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature: 10°C to 35°C (50°F to 95°F) |
