Supermicro 2U Twin2 SuperServer SYS-6029TR-HTR - Angle

More Views

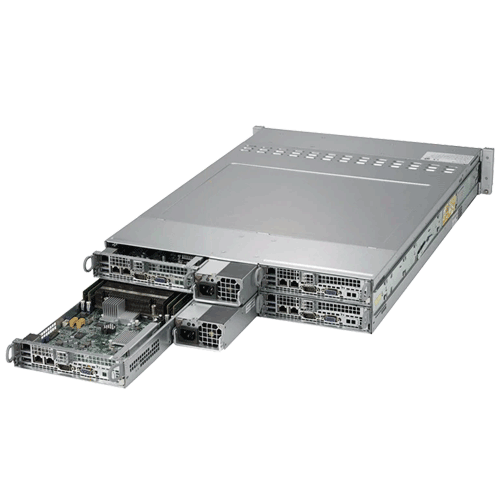

  • Supermicro 2U Twin2 SuperServer SYS-6029TR-HTR - Angle

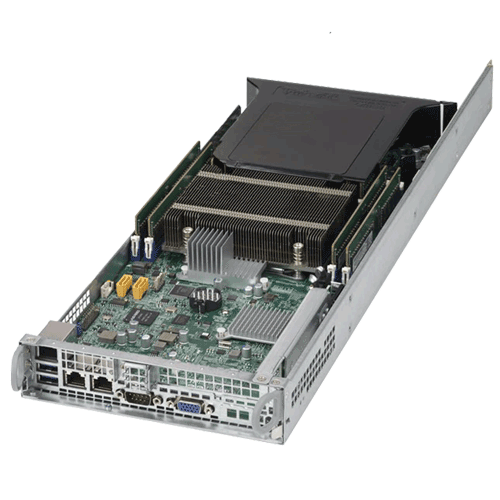

  • Supermicro 2U Twin2 SuperServer SYS-6029TR-HTR - Node

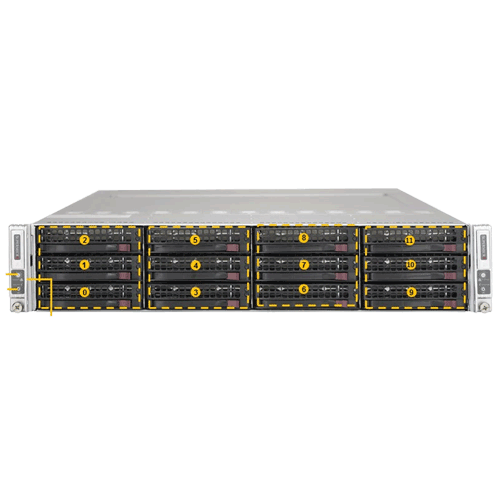

  • Supermicro 2U Twin2 SuperServer SYS-6029TR-HTR - Front

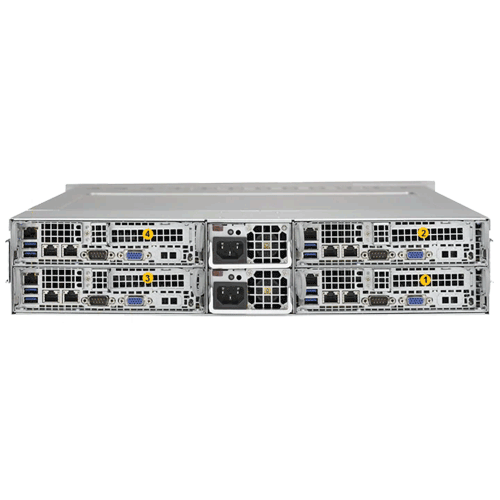

  • Supermicro 2U Twin2 SuperServer SYS-6029TR-HTR - Rear

Supermicro 2U Twin2 SuperServer SYS-6028TR-HTR

Call for price.
SKU:SYS-6028TR-HTR

Quick Overview:

Key Features:
• Four hot-pluggable systems (nodes) in a 2U form factor
• Supports Intel® Xeon® Scalable Processors
• Up to 1TB of memory
• 3 Hot-swap 3.5" SATA3 drive bays
• 4x 8cm heavy duty PWM fans
• Up to 1600W Redundant Power Supplies Titanium Level (96%)

Details

Supermicro 2U Twin2 SuperServer SYS-6029TR-HTR

Product SKU
SYS-6029TR-HTR • SuperServer 6029TR-HTR (Black)
Motherboard (Four per System)
  • Super X11DPT-L
Processor/Cache (per node)
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-140W
Cores/Cache • Up to 22 Cores with Intel® HT Technology
System Memory (per node)
Memory Capacity • 8 DIMM slots
• Up to 1TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices (per node)
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5 support
Network Controllers • Intel® C621 chipset
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• ASPEED AST2500 BMC
Input/Output (per node)
SATA • 3 SATA3 (6Gbps) ports
LAN • 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports total (rear)
VGA • 1 VGA port
Serial Port/Header • 1 COM Port (1 rear)
Others • TPM 2.0 Header
System BIOS
BIOS Type

• AMI 32Mb SPI Flash ROM with UEFI
Management
Software

• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
• Watchdog
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 2U Rackmount
Model • CSE-827HQ-R1K68BP3
Dimension and Weight
Width • 17.25" (438mm)
Height • 3.47" (88mm)
Depth • 28.5" (724mm)
Gross Weight • 52.1 lbs (23.63kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button
LEDs

• Power status LED
• HDD activity LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express

• 1 PCI-E 3.0 x16 Low-profile slot
Drive Bays/Storage (per Node)
Hot-swap

• 3 Hot-swap 3.5" SATA3 HDD trays
Others

• 2 SATA DOM
• 1 PCI-E 3.0 x4 NVMe or 1 SATA M.2 (22110/2280) support via BPN-ADP-6SATA3M2-1UL

* M.2 and SuperDOM are for OS boot
System Cooling
Fans

• 4x 8cm heavy duty PWM fans with optimal fan speed controlled
Power Supply(76mm Width)
  1600W 1U Redundant Power Supplies with PMBus
Total Output Power • 800W/1600W
Dimension
(W x H x L)
 • 76 x 40.4 x 336 mm
Input • 100-140Vac / 10-7A / 50-60Hz
• 180-240Vac / 11-8A / 50-60Hz
+12V • Max: 67A / Min: 0A (100-140Vac)
• Max: 133A / Min: 0A (180-240Vac)
+5Vsb • Max: 1A / Min: 0A
Output Type • 27 Pairs Gold Finger Connector
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec.




 • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
