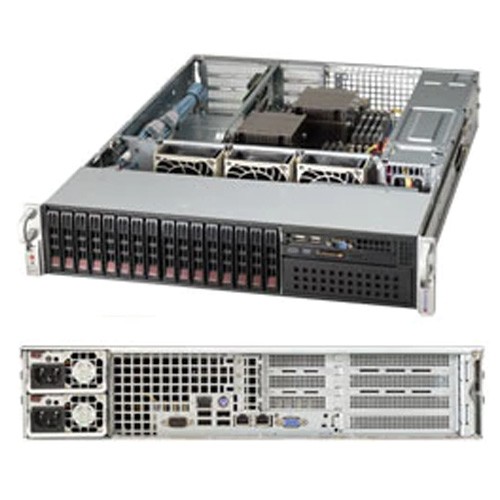

Supermicro 2U SuperChassis CSE-213A-R740WB
|
Product SKU
| |
|---|---|
| CSE-213A-R740WB | • SuperChassis 213A-R740WB (black) |
|
Form Factor
| |
|---|---|
| • 2U chassis supports SMCI Proprietary WIO motherboards; max. motherboard size - 12" x 13", 13" x 13.68" | |
| Processor Support
|
|
|---|---|
| • Supports dual, single Intel® / AMD processors | |
|
Dimensions
| |
|---|---|
| Height | • 17.2" (437mm) |
| Width | • 3.5" (89mm) |
| Depth | • 24.8" (630mm) |
| Gross Weight | • 50 lbs (22.7kg) |
| Available Color | • Black |
|
Expansion Slots
| • 4x Full-height, Full-length and 3x Low-profile expansion slots |
|---|
|
Drive Bays
| Hot-swap | • 16x 2.5" SAS / SATA Hot-swap drive bays SAS or enterprise SATA HDD only recommended |
|---|---|
| Peripheral Bay | • 1x 5.25" peripheral Drive Bay • 1x Slim Optical Drive Bay • 1x USB/COM Port Bay |
|
Backplane
| • 2U Direct Attached Backplane, features: |
|---|---|
| • 3Gb/6Gb support • SES-2 Enclosure Management Support • SAS/SATA support • Four SFF 8087 connectors |
|
|
Peripheral Drives
| DVD-ROM | • 1x Slim DVD-ROM Drive, 2x USB + 1x COM port (option) |
|---|
|
Front Panel
| Buttons | • Power On/Off button • System Reset button |
LEDs |
• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Information LED • Power fail LED |
|---|
|
Motherboard (for CSE-213A-R740WB )
| |
|---|---|
| • X10DDW-i • X10DRW-E • X10DRW-N • X10SRW-F • X9DRW-iF • X10DDW-iN • X10DRW-ET • X10DRW-NT • X9DRW-3F |
|
|
System Cooling
| |
|---|---|
| Fans | • 3x 80mm 7,000 RPM 4-pin PWM fans |
|
System Monitoring
| |
|---|---|
• Chassis intrusion switch |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C ~ 35°C (41°F ~ 95°F) |
| Non-Operating Temperature Range |
• -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Relative Humidity Range |
• 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply with Power Distributor
| |
|---|---|
• 740W (1+1) Redundant high-efficiency power supply with PMBus |
|
| AC Input | • 100-240 V, 50-60 Hz, 9-3.5 Amp |
| DC Outputt | • 4 Amp @ +5V standby |
| With Power Distributor |
• +5V: 45 Amp |
| Certification | • Platinum Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• USA - UL listed |
