Details

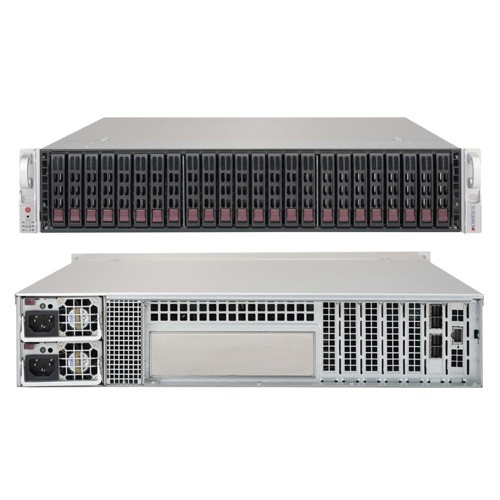

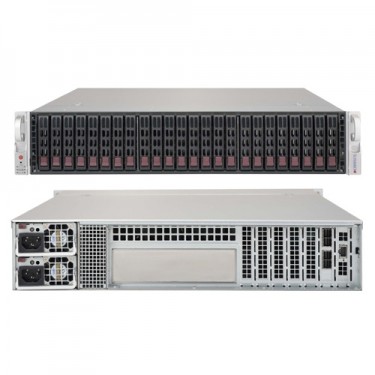

Supermicro 2U Storage JBOD Chassis CSE-216BE2C-R741JBOD
|
Product SKU
| |
|---|---|
| CSE-216BE2C-R741JBOD | • SuperChassis 216BE2C-R741JBOD |
|
Form Factor
| |
|---|---|
| • 2U JBOD storage chassis | |
|
Dimensions
| |
|---|---|
| Height | • 3.5" (89 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 24.8" (630 mm) |
| Gross Weight | • 60 lbs (27.22 kg) |
| Available Color | • Black |
|
Qualified SAS Controllers
| • AOC-SAS3-9300-8E: • AOC-SAS3-9380-8E: |
|---|
|
Drive Bays
| • 24 x 2.5" hot-swap HDD bay for JBOD solution |
|---|
|
Backplane
| • 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD |
|---|
|
Front Panel
| Buttons | • Power On/Off button • System Reset Button • Unit Identification (UID) button |
LEDs
|
• 1 Network Activity LEDs |
|---|
|
System Cooling
| |
|---|---|
| Fans | • 3 x 80x38mm hot-swap cooling fan(s) |
|
System Monitoring
| |
|---|---|
• IPMI |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 740W Redundant Platinum Power Supply W/PMbus |
|
| Power Efficiency | • 94% |
| Total Output Power and Input |
• 740W with Input 100 - 240Vac |
| AC Input Frequency |
• 50-60Hz |
| Dimensions (L x W x H) |
• 336 x 76 x 40 mm |
| Output Type | • Backplanes (gold finger) |
| +12V | • Max: 61.7A / Min: 0.2A (100Vac - 240Vac) |
| +5Vsb | • Max: 4A / Min: 0A |
| Power Distributor | • PDB-PT216-2824 |
| Certification | • Platinum Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
