Details
|
Product SKU
| |
|---|---|

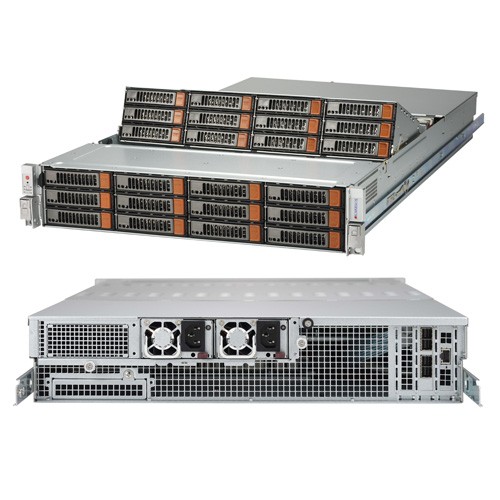

| CSE-826SE1C-R1K02JBOD | • SuperChassis 826SE1C-R1K02JBOD |
|
Form Factor
| |
|---|---|
| • 2U SAS3 Simply double JBOD storage enclosure | |
|
Dimensions
| |
|---|---|
| Height | • 3.5" (89 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 34" (863.6 mm) |
| Gross Weight | • 82 lbs (37.19 kg) |
| Available Color | • Black |
|
Qualified SAS Controllers
| • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller |
|---|
|
Drive Bays
| • 24 x 3.5" hot-swap drive bay |
|---|
|
Backplane
| • 12-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD and 4x NVMe/SAS3/SATA3 storage devices |
|---|
|
Front Panel
| Buttons | • Power On/Off button • Unit Identification (UID) button |
LEDs |
• 1 Network Activity LEDs • Fan Fail/System Over Heat LED • Power Status LED • Power Fail LED • Unit Identification (UID) LED |
|---|
|
System Cooling
| |
|---|---|
| Fans | • 5 x 8cm hot-swap redundant PWM cooling fan(s) |
|
System Monitoring
| |
|---|---|
• IPMI |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 800/1000W Redundant Single Output Power Supply Titanium Level, CRPS 203mm length |
|
| Power Efficiency | • 96% |
| Total Output Power and Input |
• 800W with Input 100 - 127Vac |
| AC Input Frequency |
• 50-60Hz |
| Dimensions (L x W x H) |
• 203 x 73.5 x 40 mm |
| Output Type | • Backplanes (gold finger) |
| +12V | • Max: 66.7A (100Vac - 127Vac) |
| +12Vsb | • Max: 2.1A / Min: 0A |
| Power Distributor | • PDB-PT226S-8824 |
| Certification | • Titanium Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
