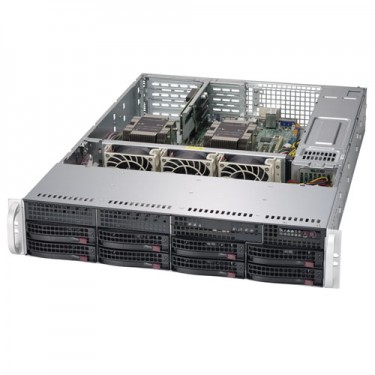

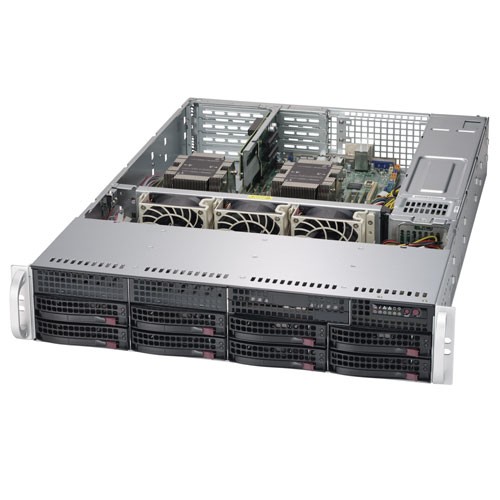

Supermicro SuperServer SYS-6029P-WTR
Product SKU |
|
|---|---|
| SYS-6029P-WTR | • SuperServer 6029P-WTR (Black) |
Motherboard |
|
|---|---|
| Super X11DDW-L | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s • Support CPU TDP 70-205W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
• 12 DIMM slots • Up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C621 chipset |
| SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| Network Connectivity |
• Dual 1GbE LAN ports from Intel C621 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | • ASPEED AST2500 BMC |

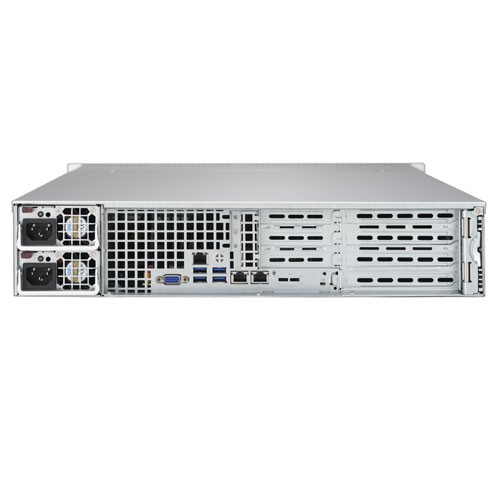

Input/Output |
|
|---|---|
| SATA | • 12 SATA3 (6 Gbps) ports |
| LAN | • 2 RJ45 Gigabit Ethernet ports • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 4 USB 3.0 ports (rear) |
| Video | • 1 VGA port |
| DOM | • 2 SuperDOM (Disk on Module) ports |
System BIOS |
|
|---|---|
| BIOS Type | • AMI 32Mb SPI Flash ROM |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM, SPM, SUM • SuperDoctor® 5 • Watchdog |
| Power Configurations | • ACPI Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
| FAN | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature |
• Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-825TQC-R1K03WB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 62 lbs (28.1 kg) |
| Available Color | • Black |

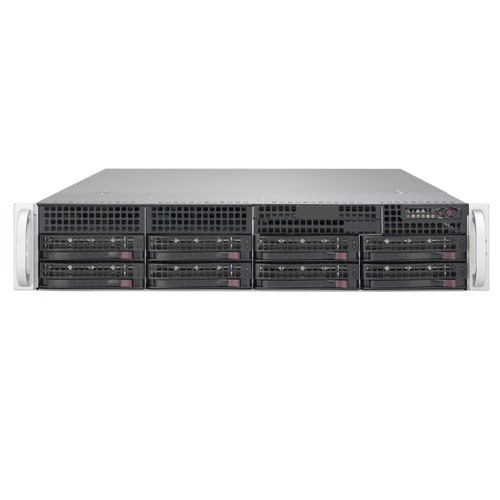

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • UID button |
| LED |
• Power status LED • Hard drive activity LED • Network activity LEDs • System information (overheat/UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 4 PCI-E 3.0 x8 (FHHL) slots |
Drive Bays |
|
|---|---|
| Hot-swap |
• 8 Hot-swap 3.5" SAS/SATA drive bays with SGPIO |
| Internal | • 2 Fixed 3.5" drive bays |
Peripheral Drives |
|
|---|---|
| DVD-ROM |
• 1 Slim DVD-ROM drive (optional) |
Backplane |
|
|---|---|
|
• SAS/SATA HDD Backplane |
|
System Cooling |
|
|---|---|
| Fans | • 3 Heavy duty 8cm fans with PWM fan speed control |
Power Supply (76mm width) |
|
|---|---|
| 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1000W/1200W |
| Dimension
(W x H x L) |
• 76 x 40 x 336 mm |
| Input | • 100-127Vac / 15-12A / 50-60Hz • 200-240Vac / 8.5-7A / 50-60Hz |
| +12V | • Max: 83A / Min: 0A (100-127Vac) • Max: 100A / Min: 0A (200-240Vac) |
| +5Vsb | • Max: 4A / Min: 0A |
| Output Type | • 19 Pairs Gold Finger Connector |
| Certification | • 80 Plus Titanium Level |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) |
