Details
Product SKU |
|
---|---|

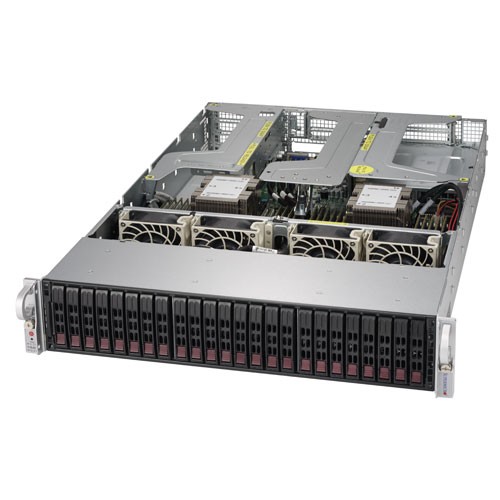

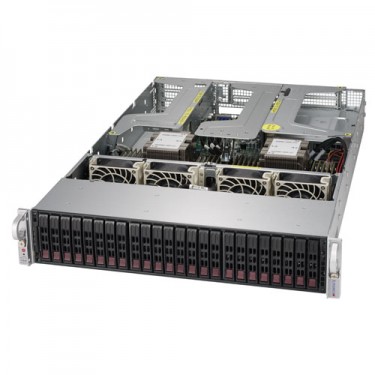

SYS-2029U-E1CR25M | • SuperServer 2029U-E1CR25M (Black) |
Motherboard |
|
---|---|
Super X11DPU |
Processor/Cache |
|
---|---|
CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s • Support CPU TDP 70-205W |
Cores | • Up to 28 Cores with Intel® HT Technology |
System Memory |
|
---|---|
Memory Capacity |
• 24 DIMM slots • Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz |
Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
---|---|
Chipset | • Intel® C621 chipset |
SAS | • SAS3 (12Gbps) via expander + Broadcom 3108/3008 AOC |
Network Connectivity |
• 2 25GbE SFP28 ports via AOC-2UR68-m2TS (Mellanox ConnectX-4 Lx EN) |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Video | • ASPEED AST2500 BMC |
Input/Output |
|
---|---|
SAS | • 24 SAS3 ports support via expander and storage Add-on Cards |
LAN | • 2 25GbE SFP28 ports • 1 RJ45 Dedicated IPMI LAN port |
USB | • 3 USB 3.0 ports (2 rear, 1 Type A) |
Video | • 1 VGA Connector |
Serial Port | • 1 Serial header |
DOM | • 2 SuperDOM (Disk on Module) ports |
System BIOS |
|
---|---|
BIOS Type | • AMI 32Mb SPI Flash ROM |
Management |
|
---|---|
Software |
• Intel® Node Manager • Redfish API • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM, SPM, SUM • SuperDoctor® 5 |
Power Configurations | • ACPI Power Management |
PC Health Monitoring |
|
---|---|
CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
FAN | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
Temperature |
• Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
---|---|
Form Factor | • 2U Rackmount |
Model | • CSE-219U2E1C4-R1K02-T |
Dimension and Weight |
|
---|---|
Height | • 3.5" (89mm) |
Width | • 17.2" (437mm) |
Depth | • 27.76" (705mm) |
Gross Weight | • 72 lbs (32.7 kg) |
Available Color | • Black |

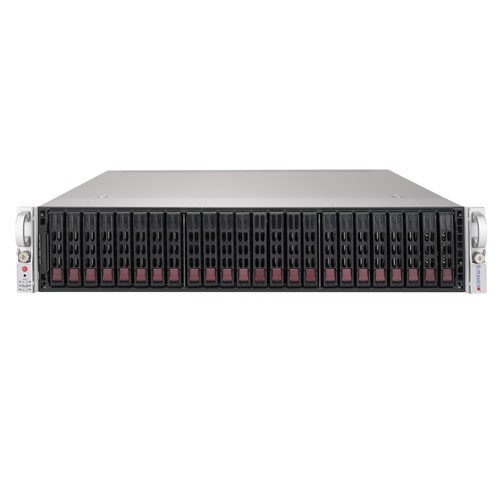

Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED |
• Power status LED • Hard drive activity LED • Network activity LEDs • System information (overheat/UID) LED |
Expansion Slots |
|
---|---|
PCI-Express |
• 1 PCI-E 3.0 x16 (FH, 10.5" L) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
---|---|
Hot-swap |
• 24 Hot-swap 2.5" drive bays: 24 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe) Note: Storage Add-on card is required |
System Cooling |
|
---|---|
Fans | • 4 Heavy duty 8cm PWM fans |
Shroud | • 1 Air Shroud |
Power Supply |
|
---|---|
1000W Redundant Power Supplies with PMBus | |
Total Output Power | • 800W/1000W |
Dimension
(W x H x L) |
• 73.5 x 40 x 203 mm |
Input | • 100-127Vac / 9.8 - 7A / 50-60Hz • 200-240Vac / 7 - 5A / 50-60Hz |
+12V | • Max: 66.7A / Min: 0A (100-127Vac) • Max: 83A / Min: 0A (200-240Vac) |
12Vsb | • Max: 2.1A / Min: 0A |
Output Type | • 25 Pairs Gold Finger Connector |
Certification | • 80 Plus Titanium Level |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) |
