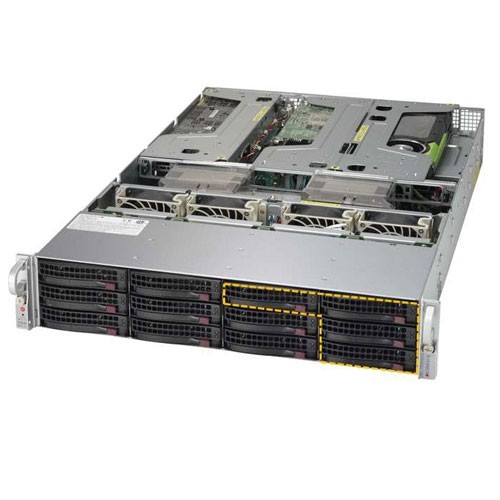

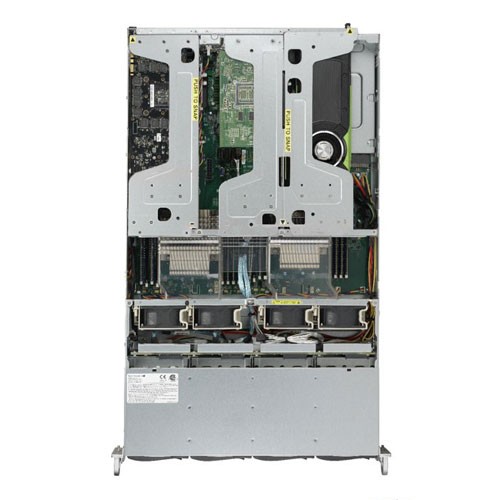

Supermicro 2U Rackmount Ultra Server SYS-6028UX-TR4 NVME

Call for price.

SKU:SYS-6028UX-TR4

Quick Overview:

Key Features:
• Support Hyper-Speed
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600
   v4†/ v3 family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 3x PCI-E 3.0 x16 slot (FH, 10.5" L),
   3x PCI-E 3.0 x8 slots (1 in x16 FH 10.5" L, 1 LP, 1 Internal LP)
• 4x Gigabit Ethernet portss
• 12x Hot-swap 3.5" Drive Bays: SATA3 default, 12x SAS3 opt. 4x NVMe opt.
   via AOC
• 4x heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 4 DIMM and 6 NVMe). Please contact your Will Jaya sales rep for special requirements.

Description

Details

SuperServer SYS-6028UX-TR4 2U Rackmount (Complete System Only)

Supermicro SYS-6028UX-TR4 2U Rackmount with Intel® C612 chipset, 12x Hot-swap 3.5" Drive Bays: 10x SATA3 ports by default, using Super X10DRU-X motherboard and
CSE-829UTS-R1K02P Rackmount Chassis

Product SKU
SYS-6028UX-TR4	• SuperServer 6028UX-TR4 (Black)

Motherboard
	Super X10DRU-X

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) * • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required * Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• 4x Gigabit Ethernet ports via AOC-2UR68-i4G
Graphics	• ASPEED AST2400 BMC

Input/Output
SATA	• 10x SATA3 (6Gbps) ports
SAS	• 12x SAS3 ports support via optional Add-on Card
NVMe	• 4x NVMe ports support via optional Ultra Riser card (AOC-2UR8N4-i2XT)
LAN	• 4x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 5x USB 3.0 ports (2 rear, 2 onboard header, 1 Type A)
Video	• 1x VGA Connector
Serial Ports / Header	• 1x Serial header
DOM	• 2x SuperDOM (Disk on Module) ports

Management
Software	• SuperDoctor® 5 • Watch Dog • NMI, SPM, SUM • IPMI 2.0 • Intel Node Manager
Power Configuration	• ACPI Power Management • Power-on mode for AC power recovery

Management

Software

• SuperDoctor® 5
• Watch Dog
• NMI, SPM, SUM
• IPMI 2.0
• Intel Node Manager

Power
Configuration

• ACPI Power Management
• Power-on mode for AC power recovery

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-829UTS-R1K02P

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 25.5" (647mm)
Weight	• 72 lbs (32.7 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System information (overheat/UID) LED

Expansion Slots
PCI-Express	• 3x PCI-E 3.0 x16 slot (FH, 10.5" L) • 3x PCI-E 3.0 x8 slots (1 in x16 FH 10.5" L, 1 LP, 1 Internal LP) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Expansion Slots

PCI-Express

• 3x PCI-E 3.0 x16 slot (FH, 10.5" L)
• 3x PCI-E 3.0 x8 slots (1 in x16 FH 10.5" L, 1 LP, 1 Internal LP)

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap	• 12x Hot-swap 3.5" Drive Bays: 10x SATA3 ports by default • Optional SAS3 support: 12x SAS3 • Optional NVMe support: 4x NVMe via AOC-2UR8N4-i2XT (2x 10GBase-T ports) Note: optional storage card is required to support more than 10 drives.

Drive Bays

Hot-swap

• 12x Hot-swap 3.5" Drive Bays: 10x SATA3 ports by default
• Optional SAS3 support: 12x SAS3
• Optional NVMe support: 4x NVMe via AOC-2UR8N4-i2XT (2x 10GBase-T ports)

Note: optional storage card is required to support more than 10 drives.

Backplane
	• 2U SAS/SATA backplane

System Cooling
Fans	• 4x 8cm heavy duty PWM fans

Power Supply
	1000W Redundant Power Supplies with PMBus
Total Output Power	• 800W/1000W
Dimension (W x H x L)	• 73.5 x 40 x 203 mm
Input	• 100-127Vac / 9.8 - 7A / 50-60Hz • 200-240Vac / 7 - 5A / 50-60Hz
+12V	• Max: 66.7A / Min: 0A (100-127Vac) • Max: 83A / Min: 0A (200-240Vac)
12Vsb	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Titanium Level

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1

Operating Environment / Compliance
RoHS	• RoHS Compliant
Bios Features	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
