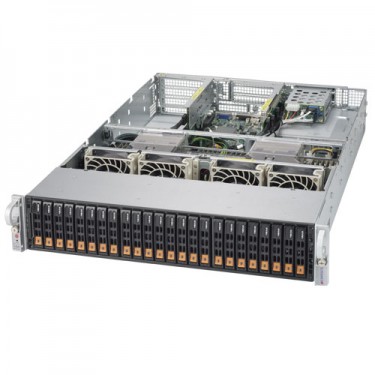

Supermicro 2U Rackmount SYS-2028U-TN24R4T+ Angle

More Views

Supermicro 2U Rackmount Ultra Server SYS-2028u-TN24R4T+ NVME

Call for price.

SKU:SYS-2028U-TN24R4T+

Quick Overview:

Key Features:

• Up to 24x NVMe drives supported
• Flexible Connectivity Options
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600
v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 4x 10GBase-T ports
• 24x NVMe Hot-swap 2.5" drive bays (4 Hybrid ports - optional SAS3
supported via AOC); 2x rear SATA3 Hot-swap 2.5" drive bays
• 4x heavy duty fans w/ optimal fan speed control
• 1600W High efficiency (96%) Redundant PSU; Titanium Level

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 4 DIMM and 6 NVMe). Please contact your Will Jaya sales rep for special requirements.

Description

Details

SuperServer SYS-2028U-TN24R4T+ 2U Rackmount (Complete System Only)

Supermicro SYS-2028U-TN24R4T+ 2U Rackmount with Intel® C612 chipset, Total 26x Tool-less Hot-swap 2.5" drive bays, using Super X10DRU-i+ motherboard and
CSE-219AC24-R1K62P-N24T Rackmount Chassis

Product SKU
SYS-2028U-TN24R4T+	• SuperServer 2028U-TN24R4T+ (Black)

Motherboard
	Super X10DRU-i+

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) * • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 24x 288-pin DDR4 DIMM slots • Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• 4x 10GBase-T ports via AOC-2UR6N4-i4XT • Intel® X540 10GBase-T • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output
SATA	• 6x SATA3 (6Gbps) ports (4x SATA3 via optional cable)
SAS	• 4x SAS3 ports support via optional AOC
NVMe	• 24x NVMe ports
LAN	• 4x 10GBase-T LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 5x USB 3.0 ports (2 rear, 2 onboard header, 1 Type A)
Video	• 1x VGA Connector
Serial Ports / Header	• 1x Serial header
DOM	• 2x SuperDOM (Disk on Module) ports

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1

Management
Software	• SuperDoctor® 5 • Intel® Node Manager 3.0 • Watch Dog • NMI • SUM and SSM • Optional IPMI 1.5 / 2.0
Power Configuration	• ACPI Power Management • Power-on mode for AC power recovery

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-219AC24-R1K62P-N24T

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 27.76" (705.3mm)
Weight	• 72 lbs (32.7 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System information (overheat/UID) LED

Expansion Slots
PCI-Express	• 2x PCI-E 3.0 x16 (FH, 10.5" L) slots • 1x PCI-E 3.0 x8 (LP) slot

Drive Bays
Hot-swap	• Total 26x Tool-less Hot-swap 2.5" drive bays (Front: 24, Rear: 2): 4 x Hybrid (NVMe/SATA3) ports - Optional SAS3 support via AOC

System Cooling
Fans	• 4x 8cm heavy duty PWM fans

Power Supply
	1600W Redundant Power Supplies with PMBus
Total Output Power	• 100 - 240V, 60-50Hz, 5-3 Amp
Dimension (W x H x L)	• 5V + 3.3V ≤ 140W
Input	• 25.0 amp
+12V	• 2.0 amp
12Vsb	• 18.0 Amp
Output Type	• 1.0 Amp
Certification	• 15.0 Amp

PC Health Monitoring
Voltage	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. • 5+1 Phase-switching voltage regulator
FAN	• Support to monitor Supermicro AOC temperatures from IPMI or SD 5 • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x Fan Connectors • Thermal Monitor 2 (TM2) support • PECI
LED	• Memory DIMM ECC error LEDs • CPU / System Overheat LED • Suspend static indicator LED • UID/Remote UID
Other Features	• 4x 8-pin GPU power connectors • Chassis intrusion detection • Chassis intrusion header • SDDC Support • RoHS

Operating Environment / Compliance
RoHS	• RoHS Compliant
Bios Features	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
