Supermicro SuperStorage SSG-5029P-E1CTR12L
Product SKU |
|
|---|---|
| SSG-5029P-E1CTR12L | • SuperServer 5029P-E1CTR12L (Black) |
Motherboard |
|
|---|---|
| Super X11SPH-nCTF | |
Processor/Cache |
|
|---|---|
| CPU | • Single Socket P (LGA 3647) • Intel® Xeon® Scalable Processors • Support CPU TDP 70-205W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
• 8 DIMM slots • Up to 1TB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C622 chipset |
| SATA | • SATA3 (6Gbps) via C622 controller • RAID 0, 1, 5, 10 support |
| SAS | • SAS3 (12Gbps) via Broadcom 3008 • SW RAID 0, 1, 10 |
| Network Connectivity |
• Dual LAN with 10GBase-T with Intel® X722 + X557 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | • ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA | • 10 SATA3 (6Gbps) ports |
| LAN | • 2 RJ45 10GBase-T LAN ports • 1 RJ45 dedicated IPMI LAN port |
| USB | • 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (rear) |
| VGA | • 1 VGA port |
| Serial Port / Header | • 2 COM Ports (1 rear, 1 header) |
System BIOS |
|
|---|---|
| BIOS Type | • AMI UEFI |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM,SPM,SUM • SuperDoctor® 5 • Watchdog |
| Power Configurations | • ACPI Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
| FAN | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature |
• Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-826BE1C-R802LPB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.6" (650mm) |
| Gross Weight | • 58 lbs (26.3 kg) |
| Available Color | • Black |

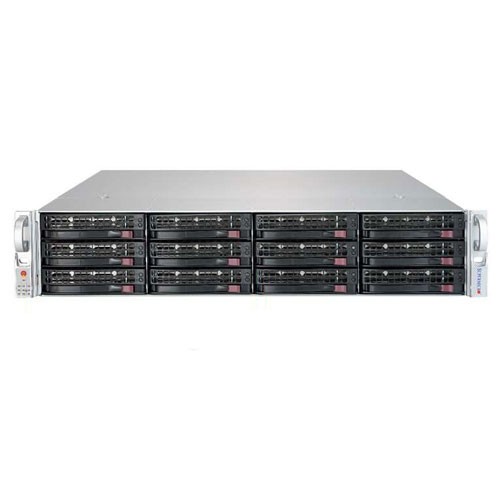

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED |
• Power status LED • Hard drive activity LED • Network activity LEDs • System Overheat LED • Power fail LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 1 PCI-E 3.0 x16 |
Drive Bays/Storage |
|
|---|---|
| Hot-swap |
• 12 Hot-swap 3.5" SAS/SATA drive bays with SES3 |
| Optional | • 2 Hot-swap 2.5" NVMe/SATA drive bays (rear) |
| M.2 | • Interface: PCIe 3.0 x4 • Form Factor: 2280 |
Backplane |
|
|---|---|
| • SAS3 Backplane: SAS3 12Gbps single expander backplane, w/ LSISAS3x28 expander, support 12x 3.5" drives, with 4x mini-SAS HD connectors, 2 for uplink and another 2 for downlink | |
System Cooling |
|
|---|---|
| Fans | • 3 High-performance 80mm PWM fans |
Power Supply (76mm Width) |
|
|---|---|
| 800W Redundant Power Supplies with PMBus | |
| Total Output Power |
• 800W |
| Dimension
(W x H x L) |
• 76 x 40 x 336 mm |
| Input | • 800W: 100-240Vac / 50-60Hz • 800W: 200-240Vac / 50-60Hz |
| +12V | • Max: 66A / Min: 0A (100-240Vac) • Max: 66A / Min: 0A (200-240Vdc) |
| +5Vsb | • Max: 4A / Min: 0A |
| Output Type | • Gold Finger |
| Certification | • 80 Plus Titanium Level |
Operating Environment |
|
|---|---|
| RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) |
