  • Supermicro 2U Rackmount SuperStorage SSG-2029P-ACR24L

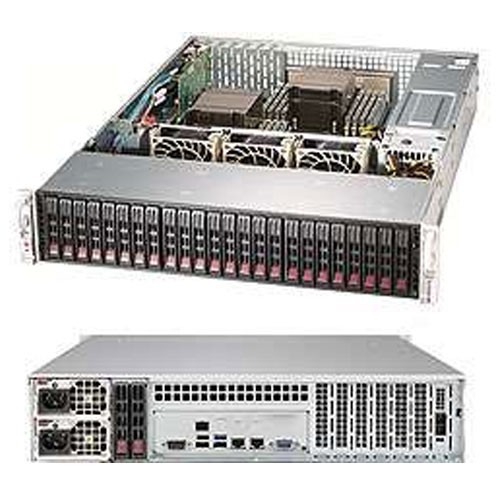

Supermicro 2U Rackmount SuperStorage SSG-2029P-ACR24L

Call for price.
SKU:SSG-2029P-ACR24L

Quick Overview:

Key Features:
• Corporate Database
• Database Processing & Storage
• Enterprise Server
• HPC, Data Center
• iSCSI SAN
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
• Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
• 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
• 24 Hot-swap 2.5" SAS3/SATA3 direct attached drive bays
• 3 Broadcom 3008 SAS3 AOC (IT mode)
• 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 3 Hot-swap 8cm redundant PWM fans
• 1200W Redundant Power Supplies Titanium Level (96%)


Details

Supermicro SuperStorage SSG-2029P-ACR24L

Product SKU
• SuperServer 2029P-ACR24L (Black)
Motherboard
       Super X11DPH-T
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 16 DIMM slots
• Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset

• Intel® C624 chipset

SAS • SAS3 (12Gbps) via Broadcom 3008 AOC
• 3 Broadcom 3008 controller
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controller • Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video • ASPEED AST2500 BMC
Input/Output
LAN • 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB

• 4 USB 3.0 ports (rear)
• 1 Type A

Video

• 1 VGA port

Serial Port / Header • 1 Fast UART 16550 port / 1 Header
System BIOS
BIOS Type • 256Mb AMI UEFI
Management
Software • Intel® Node Manager
• IPMI 2.0
• NMI
• SPM,SUM
• SuperDoctor 5
• Watchdog
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 2U Rackmount
Model CSE-216BE1C4-R1K23LPB
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 24.8" (630mm)
Gross Weight • 61 lbs (27.7 kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LED • Power status LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
• Power fail LED
Expansion Slots
PCI-Express

• 3 PCI-E 3.0 x16 slot
• 4 PCI-E 3.0 x8 slots

Drive Bays
Hot-swap • 24 Hot-swap 2.5" SAS3/SATA3 drive bays
Optional • 2 Optional Onboard NVMe M.2
Backplane


• SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots

System Cooling
Fans

• 3 Hot-swap 8cm redundant PWM cooling fans

Power Supply (76mm Width)


• 1200W Redundant Power Supplies with PMBus

Total Output Power • 1000W/1200W
Dimension
(W x H x L)
• 76 x 40 x 336 mm
Input • 100-127Vac / 15-12A / 50-60Hz
• 200-240Vac / 8.5-7A / 50-60Hz
+12V • Max: 83A / Min: 0A (100-127Vac)
• Max: 100A / Min: 0A (200-240Vac)
+5Vsb • Max: 4A / Min: 0A
Output Type • 19 Pairs Gold Finger Connector
Certification •80 Plus / Titanium Level
Operating Environment
RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
