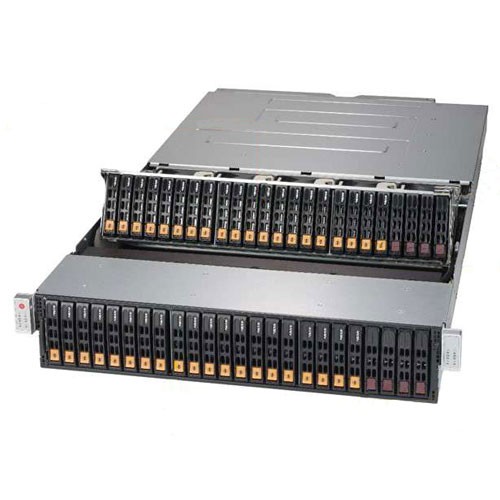

Supermicro 2U Rackmount SSG-2028R-DN2R40L - Angle

More Views

Supermicro 2U Rackmount SuperStorage SSG-2028R-DN2R40L

Call for price.

SKU:SSG-2028R-DN2R40L

Quick Overview:

Key Features:
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16 DIMM slots
• 1 PCI-E 3.0 x16 HHHL slot, 1 PCI-E 3.0 x8 HHHL slot, 1 SIOM slot
• Dual port 10GBase-T (Intel® X540), Intel® XL710 used for dedicated heartbeat between 2 nodes in SBB

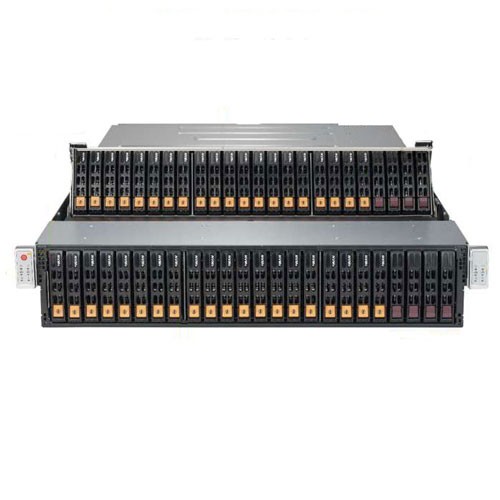

• 40 Hot-swap 2.5" dual port NVMe drive bays
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 5 high-performance 8cm PWM fans
• 2000W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact your Will Jaya sales rep for special requirements.

Description

Details

SuperStorage 2028R-DN2R40L (Complete System Only)

Supermicro SSG-2028R-DN2R40L 2U Rackmount SuperStorage with 2000W Redundant Power Supplies, dual socket R3 (LGA 2011) and using Supermicro Super X10DSN-TS Motherboard and
CSE-227STS-R2K05P 2U Rackmount Chassis.

Product SKU
SSG-2028R-DN2R40L	• SuperServer 2028R-DN2R40L (Black)

Motherboard

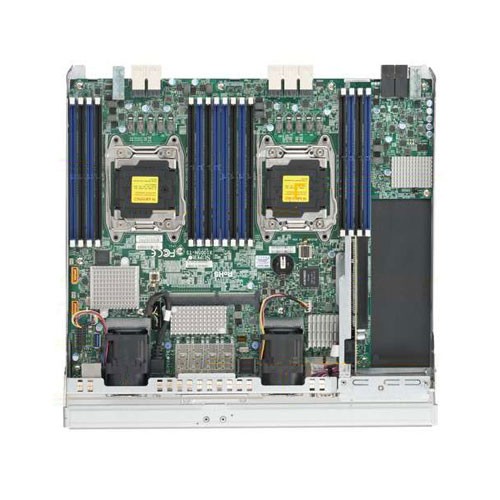

	Super X10DSN-TS

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011)
Cores / Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps); RAID 0, 1
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® X540 Dual Port 10GBase-T • 10Gb private ethernet between controller nodes • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Video	• ASPEED AST2400 BMC

Input/Output
SATA	• 2 SATA3 (6Gbps) ports
LAN	• 2 RJ45 10GBase-T LAN ports • IPMI LAN shared port
USB	• 3 USB 3.0 ports (2 rear, 1 Type A)
Video	• 1 VGA port
Serial Port / Header	• COM port via riser

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-227STS-R2K05P

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 33.3" (846mm)
Gross Weight	• 86.9 lbs (39.42 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED • Heartbeat LED • 2 Network activity LEDs • Power Fail LED • Overheat/Fan Fail LED

Expansion Slot
PCI-Express (per node)	• 1 PCI-E 3.0 x16 HHHL slot • 1 PCI-E 3.0 x8 HHHL slot • 1 SIOM slot

Drive Bays
Hot-Swap	• 40x 2.5" dual port Hot-swap NVMe drive bays

System Cooling
Fans	• 5x 8cm high-performance PWM fans

Power Supply
	2000W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1800W/1980W/2000W
Dimension (W x H x L)	• 73.5 x 40 x 265 mm
Input	• 100-120Vac / 12-9.5A / 50-60Hz • 200-220Vac / 10-9.5A / 50-60Hz • 220-230Vac / 10-9.8A / 50-60Hz • 230-240Vac / 10-9.8A / 50-60Hz • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V	• Max: 83.3A / Min: 0A (100-120Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 166.7A / Min: 0A (230-240Vac) • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
+12Vsb	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• UL/cUL/CB/BSMI/CE/CCC • Titanium Level

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10° to 35°C (50° to 95°F) • Non-operating Temperature: -40° to 70°C (-40° to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)
