SuperStorage 2028R-DN2R20L (Complete System Only)
Supermicro SSG-2028R-DN2R20L 2U Rackmount SuperStorage with 2000W Redundant Power Supplies, dual socket R3 (LGA 2011) and using Supermicro Super X10DSN-TS
Motherboard and CSE-227TS-R2K05P 2U Rackmount Chassis.
Motherboard and CSE-227TS-R2K05P 2U Rackmount Chassis.
|
Product SKU
| |
|---|---|
| SSG-2028R-DN2R20L | • SuperServer 2028R-DN2R20L (Black) |
|

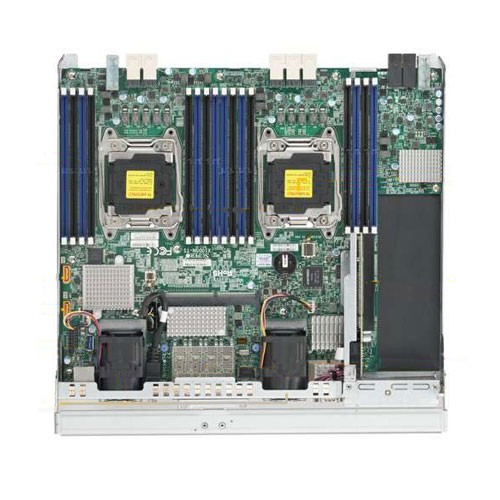

Motherboard
| |
|---|---|
| Super X10DSN-TS | |
|
Processor/Cache
| |
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011) |
| Cores / Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required |
* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
|
System Memory
| |
|---|---|
| Memory Capacity | • 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type |
• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| Chipset | • Intel® C612 chipset |
|---|---|
| SATA | • SATA3 (6Gbps); RAID 0, 1 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Intel® X540 Dual Port 10GBase-T • 10Gb private ethernet between controller nodes • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Video | • ASPEED AST2400 BMC |
|

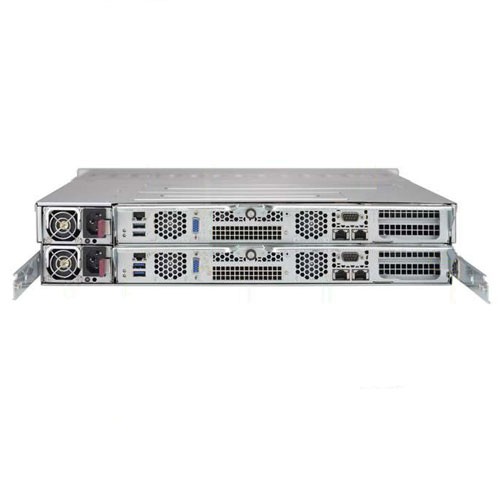

Input/Output
| SATA | • 2 SATA3 (6Gbps) ports | LAN | • 2 RJ45 10GBase-T LAN ports • IPMI LAN shared port |
|---|---|
| USB | • 3 USB 3.0 ports (2 rear, 1 Type A) |
| Video | • 1 VGA port |
| Serial Port / Header | • COM port via riser |
|
Chassis
| |
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-227TS-R2K05P |
|
Dimension and Weight
| |
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.6" (650mm) |
| Gross Weight | • 67 lbs (30.4 kg) |
| Available Color | • Black |
|
Front Panel
| |
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | • Power LED • Heartbeat LED • 2 Network activity LEDs • Power Fail LED • Overheat/Fan Fail LED |
|
Expansion Slot
| |
|---|---|
| PCI-Express (per node) |
• 1 PCI-E 3.0 x16 HHHL slot |
|

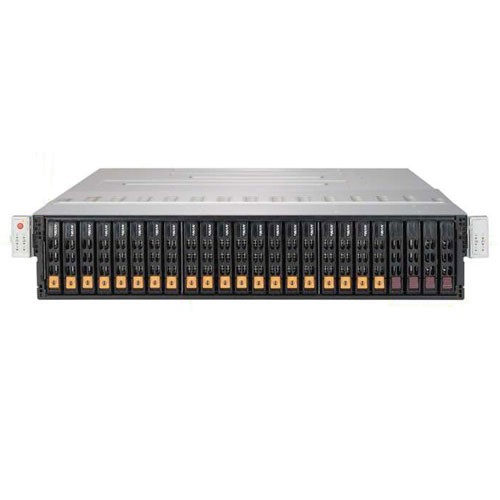

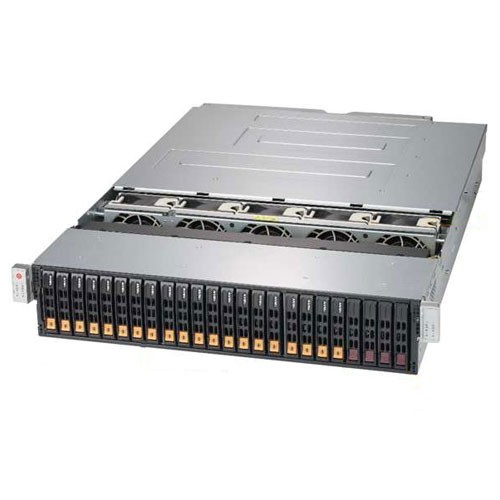

Drive Bays
| |
|---|---|
| Hot-Swap |
• 20x 2.5" Hot-swap NVMe drive bays |
|
System Cooling
| |
|---|---|
| Fans |
• 5x 8cm high-performance PWM fans |
|
Power Supply
| |
|---|---|
| 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1000W/1800W/1980W/2000W |
| Dimension (W x H x L) |
• 73.5 x 40 x 265 mm |
| Input | • 100-120Vac / 12-9.5A / 50-60Hz • 200-220Vac / 10-9.5A / 50-60Hz • 220-230Vac / 10-9.8A / 50-60Hz • 230-240Vac / 10-9.8A / 50-60Hz • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) |
| +12V | • Max: 83.3A / Min: 0A (100-120Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 166.7A / Min: 0A (230-240Vac) • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) |
| +12Vsb | • Max: 2.1A / Min: 0A |
| Output Type | • 25 Pairs Gold Finger Connector |
| Certification | • UL/cUL/CB/BSMI/CE/CCC • Titanium Level |
|
System BIOS
| |
|---|---|
| BIOS Type |
• 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | • Plug and Play (PnP) • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
|
Operating Environment
| |
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature: 10° to 35°C (50° to 95°F) |
