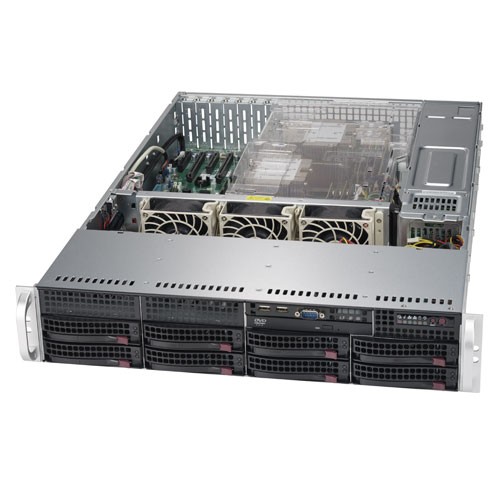

  • Supermicro 2U Rackmount SYS-6029P-TRT - Angle

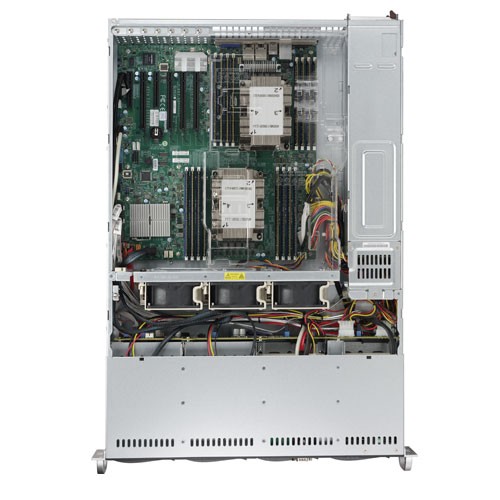

  • Supermicro 2U Rackmount SYS-6029P-TRT - Top

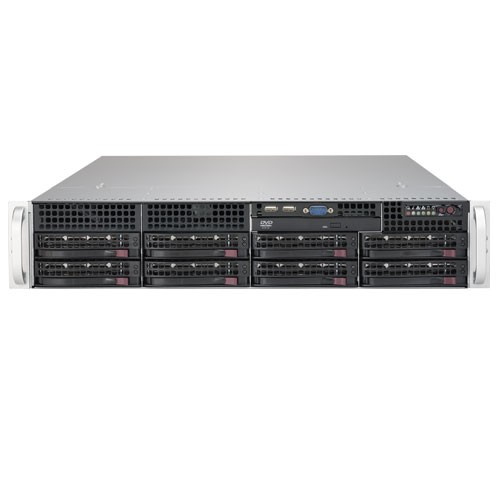

  • Supermicro 2U Rackmount SYS-6029P-TRT - Front

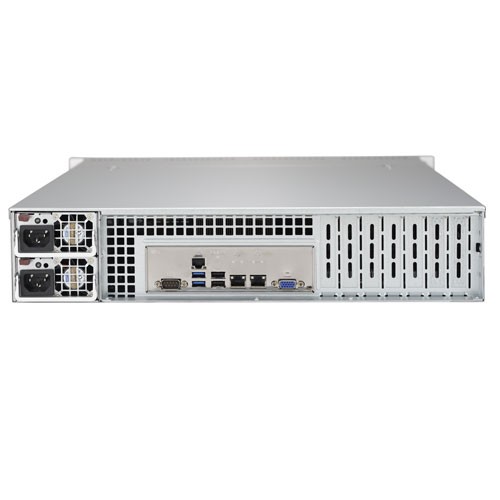

  • Supermicro 2U Rackmount SYS-6029P-TRT - Rear

Supermicro 2U Rackmount SuperServer SYS-6029P-TRT

Call for price.
SKU:SYS-6029P-TRT

Quick Overview:

Key Features:
• Cloud & Virtualization | Compute Intensive Application |
   Databas Processing & Storage | Hosting & Application
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots Supports Intel Optane Memory NVDIMM
• 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots
• 8 Hot-swap 3.5" SATA3 drive bays; RAID 0, 1, 5, 10
• Optional DVD-ROM drive, optional support: 2 fixed 2.5" NVMe/SSD/HDD, 1 M.2 support
• 2x 10GBase-T LAN ports with Intel X722
• 1000W Redundant Power Supplies Titanium Level (96% efficiency)

Details

Supermicro SuperServer SYS-6029P-TRT
Product SKU
• SuperServer 6029P-TRT (Black)
Motherboard
     Super X11DPi-NT
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 16 DIMM slots
• Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C622 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network
Connectivity
• Intel® X722 10GBase-T Ethernet Controller
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video • ASPEED AST2500 BMC
Input/Output
SATA • 8 SATA3 (6Gbps) ports
LAN • 2 RJ45 10GBase-T Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • Rear USB: 2 USB 3.0 + 2 USB 2.0
• Front USB: 2 USB 2.0
• USB Header: 1 Type A
VGA • 1 VGA port
Serial Port / Header • 2 Fast UART 16550 serial
• 2 COM Ports (1 rear, 1 header)
DOM • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type • AMI UEFI
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• Watchdog
Power Configurations   • ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature
• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 2U Rackmount
Model CSE-825TQC-R1K03LPB
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 25.5" (648mm)
Gross Weight • 69 lbs (31.2 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
• UID button
LED • Power status LED
• Hard drive activity LED
• Network activity LEDs
• System information (overheat/UID) LED
Expansion Slots
PCI-Express

• 4 PCI-E 3.0 x16 (Low-profile)
• 2 PCI-E 3.0 x8 (Low-profile)

Drive Bays
Hot-swap

• 8 Hot-swap 3.5" SATA drive bays

Backplane


• 2U SAS/SATA backplane

System Cooling
Fans • 3 Heavy duty 80mm fans with PWM fan speed control
Power Supply (76mm width)
  1000W Redundant Power Supplies with PMBus
Total Output Power • 800W/1000W
Dimension
(W x H x L)
• 76 x 40 x 336 mm
Input • 100-127Vac / 12-9A / 50-60Hz
• 200-240Vac / 7.2-6A / 50-60Hz
+12V • Max: 66.7A & Min. 0A (100-127Vac)
• Max: 83A & Min. 0A (200-240Vac)
5Vsb • Max: 4A / Min: 0A
Output Type • 19 Pairs Gold Finger Connector
Certification • 80 Plus Titanium Level
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.










• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
