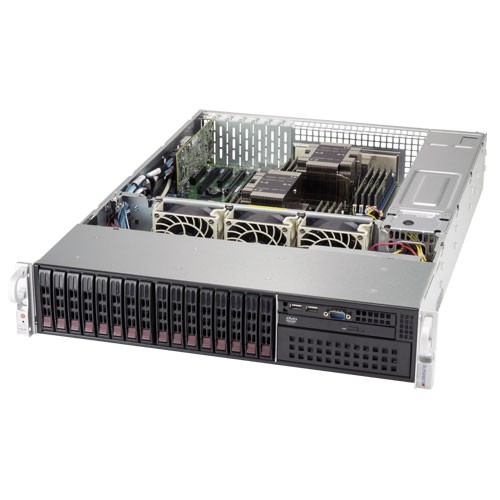

  • Supermicro 2U Rackmount SYS-2029P-C1R - Angle

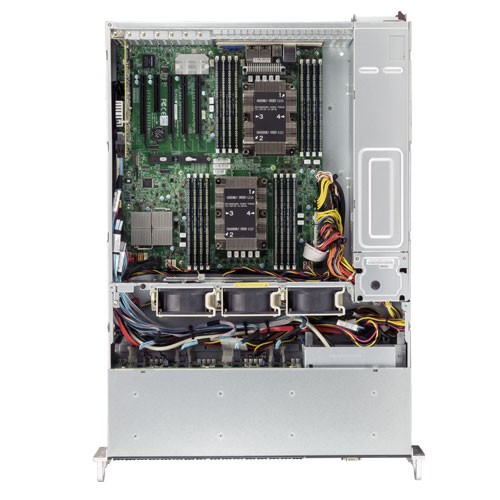

  • Supermicro 2U Rackmount SYS-2029P-C1R - Top

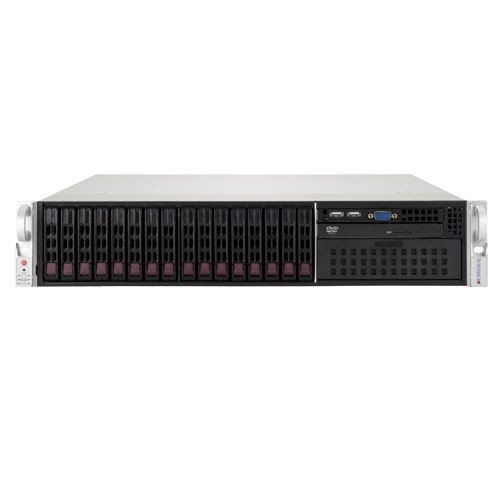

  • Supermicro 2U Rackmount SYS-2029P-C1R - Front

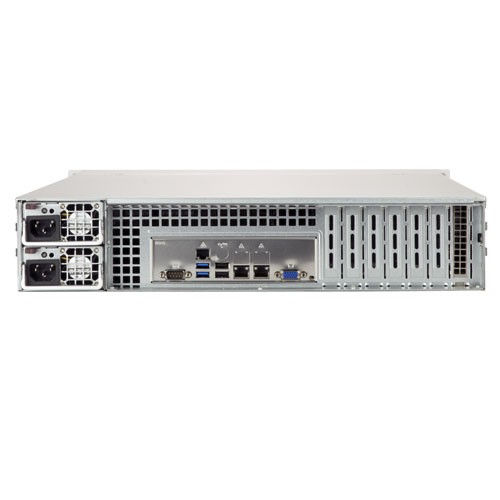

  • Supermicro 2U Rackmount SYS-2029P-C1R - Rear

Supermicro 2U Rackmount SuperServer SYS-2029P-C1R

$0.00
SKU:SYS-2029P-C1R

Quick Overview:

Key Features:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
• 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slots, support 5 low-profile AOCs
• 8x 2.5" SAS3 & 8x 2.5" SATA3 Hot-swap Drive Bays, optional DVD-ROM drive, optional support 2 NVMe/SSD/HDD 2.5" fix drives, 1 M.2 support
• 2x 1GbE LAN ports with Intel® X722
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 2 SuperDOM, 1 VGA, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A
• 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control
• 1200W Redundant Power Supplies Titanium Level (96%)


Details

Supermicro SuperServer SYS-2029P-C1R
Product SKU
• SuperServer 2029P-C1R (Black)
Motherboard
     Super X11DPi-N
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 16 DIMM slots
• Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C622 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network
Connectivity
• Intel® X722 10GBase-T Ethernet Controller
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video • ASPEED AST2500 BMC
Input/Output
SATA • 8 SATA3 (6Gbps) ports
SAS • 8 SAS3 (12Gbps) ports
LAN • 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (2 rear)
• 4 USB 2.0 ports (2 rear, 2 front)
• 1 USB Type A
VGA • 1 VGA port
Serial Port / Header • 2 Fast UART 16550 serial
• 2 COM Ports (1 rear, 1 header)
DOM • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type • AMI UEFI
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• Watchdog
Power Configurations   • ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature
• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 2U Rackmount
Model CSE-213AC-R1K23LPB
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 24.8" (630mm)
Gross Weight • 63 lbs (28.8 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Expansion Slots
PCI-Express

• 4 PCI-E 3.0 x16 slots
• 1 PCI-E 3.0 x8 slot
• Support total of 5 Low-profile AOC

Drive Bays
Hot-swap

• 8x 2.5" SAS3 and 8x 2.5" SATA3 Hot-swap drive bays

Peripheral • Optional DVD-ROM drive supports 1x slim or 1x 5.25" DVD drive
Optional • Optional 2 NVMe/SSD/HDD 2.5" fix drives
• 1 M.2 support
System Cooling
Fans • 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control
Power Supply (76mm width)
  1200W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1200W
Dimension
(W x H x L)
• 76 x 40 x 336 mm
Input • 100-127Vac / 15-12A / 50-60Hz
• 200-240Vac / 8.5-7A / 50-60Hz
+12V • Max: 83A / Min: 0A (100-127Vac)
• Max: 100A / Min: 0A (200-240Vac)
+5Vsb • Max: 4A / Min: 0A
Output Type • 19 Pairs Gold Finger Connector
Certification • 80 Plus Titanium Level
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.










• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
