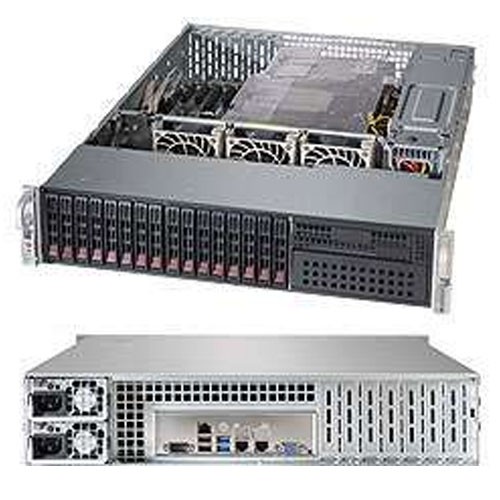

Supermicro 2U Rackmount SuperServer SYS-2028R-C1RT

Call for price.

SKU:SYS-2028R-C1RT

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x
DIMM slots
• 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots
• 8x 2.5" SAS3 and 8x 2.5" SATA3 Hot-swap Drive Bays
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Intel® X540 Dual port 10GBase-T
• I/O ports: 2x SuperDOM, 1x VGA, 2x COM, 2x USB 3.0, 4x USB 2.0
• 3x 8cm high-performance PWM fans
• 920W Redundant Power Supplies Platinum Level (94%)

Description

Details

SuperServer SYS-2028R-C1RT

Supermicro SYS-2028R-C1RT 2U Rackmount Barebone with 920W Redundant Power Supplies, Intel® C612 chipset support 8x 2.5" SAS3 and 8x 2.5" SATA3 Hot-swap Drive Bays
using Supermicro X10DRH-CT Server Motherboard and CSE-213AC-R920LPB 2U Rackmount Chassis.

Product SKU
SYS-2028R-C1RT	• SuperServer 2028R-C1RT (Black)

Motherboard
	Super X10DRH-CT

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA 3.0 (6Gbps) with RAID 0, 1, 5, 10
SAS	• LSI 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5, 6, 10, 50, 60
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® X540 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	• ASPEED AST2400 BMC

Input/Output
SATA	• 8x SATA3 (6Gbps) ports
SAS	• 8x SAS3 (12Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (rear) • 4x USB 2.0 ports (2 rear, 2 front) • 1x Type A
Video	• 1x VGA Connector
Serial Port/Header	• 2x Fast UART 16550 serial • 2x COM Ports (1 rear, 1 header)

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.3 • UEFI • RTC (Real Time Clock) Wakeup

System Bios

Bios Type

• 128Mb SPI Flash EEPROM with AMI® BIOS

Bios Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.3
• UEFI
• RTC (Real Time Clock) Wakeup

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-213AC-R920LPB

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 24.8" (630mm)
Gross Weight	• 63.5 lbs (28.8 kg)

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED

Expansion Slot
PCI-Express	• 1x PCI-E 3.0 x16 • 6x PCI-E 3.0 x8 (Low-profile AOC)

Drive Bays
Hot-Swaps	• 8x 2.5" SAS3 and 8x 2.5" SATA3 Hot-swap drive bays
Peripherals	• Optional DVD-ROM drive supports 1x slim or 1x 5.25" DVD drive

System Cooling
Fans	• 3x 8cm heavy duty fans with optimal fan speed control

Power Supply
	920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input	• 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output	• 4 Amp @ +5V standby • 75 Amp @ +12V
Certification	• Platinum Certified (94%)

PC Health Monitoring
CPU	• Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. • CPU Core 6-Phase-switching voltage regulator
FAN	• Total of five 4-pin PWM fans • 5x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 10x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• Power Fail / Overheat LED • Suspend-state Indicator LED • UID LED
Other Features	• SDDC Support

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 5°C to 40°C (41°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
