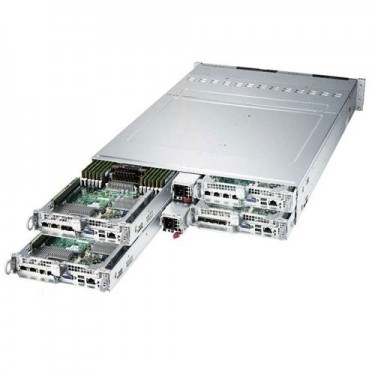

Supermicro 2U Rackmount SYS-2028BT-HNC0R+ Angle

More Views

Supermicro 2U Rackmount SuperServer SYS-2028BT-HNC0R+

Call for price.

SKU:SYS-2028BT-HNC0R+

Quick Overview:

Key Features:
• Hyperscale and Hyperconverged Solutions
• Compute Intensive Application
• HPC, Data Center
• Enterprise Server

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 2 PCI-E 3.0 x16 (LP) slots; 1 SIOM card support (flexible networking) Note: must bundle with Network card
• IPMI 2.0 + KVM with dedicated LAN
• 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays
• SAS3 support via Broadcom 3008; IT mode
• Video via Aspeed AST2400 BMC
• 4 heavy duty 8cm PWM fans with air shroud
• 2200W Redundant Power Supplies Titanium Level
• 2 M.2 Cards support

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 2 DIMM, 1 HDD/NVMe and 1 NIC or SIOM card per node). Please contact your Will Jaya sales rep for special requirements.

Description

Details

Supermicro BigTwin SYS-2028BT-HNC0R+

Supermicro SYS-2028BT-HNC0R+ 2U Rackmount Server Barebone with 2200W Redundant Power Supplies Titanium Level and 6 Hot-swap 2.5" SATA3 drive bays or 4 NVMe + 2 SAS3
Hot-swap 2.5" using Supermicro Super X10DRT-B+ Server Motherboard and 2U CSE-217BHQ+-R2K22BP Server Rackmount Chassis.

Product SKU
SYS-2028BT-HNC0R+	• SuperServer 2028BT-HNC0R+ (Black)

Motherboard
	Super X10DRT-B+

Processor/Cache (per Node)
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	• Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per node)
Memory Capacity	• 24x 288-pin DDR4 DIMM slots • Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices (per node)
Chipset	• Intel® C612 chipset
SAS	• SAS3 (12Gbps) via Broadcom 3008; IT mode
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network	• Must bundle with at least one SIOM network card
Video	• ASPEED AST2400 BMC

Input/Output (per Node)
SAS	• 6 SAS3 (12Gbps) ports
LAN	• 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear)
Video	• 1x VGA port

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-217BHQ+-R2K22BP

Dimension and Weight
Height	• 3.47" (88mm)
Width	• 17.6" (447mm)
Depth	• 28.75" (730mm)
Gross Weight	• 85 lbs (38.6kg)

Front Panel
Buttons	• Power On/Off button • System Reset button • UID button
LED	• Power Status LED • HDD activity LED • 2 Network activity LEDs • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express	• 2 PCI-E 3.0 (x16) Low-profile slots • 1 SIOM card (must bundle with network card)

Drive Bays (per Node)
Hot-swap	• 6 Hot-swap 2.5" SAS3 drive bays or 4 NVMe + 2 SAS3 Hot-swap 2.5" Please contact Will Jaya Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD.

System Cooling
Fans	• 4 heavy duty 8cm PWM fans with air shroud

Power Supply
	2200W Redundant Power Supplies with PMBus
Total Output Power	• 1200W/1800W/1980W/2090/2200W
Dimention (W x H x L)	• 45 x 40 x 480 mm
Input	• 100-127Vac / 50-60Hz (1200W) • 200-220Vac / 50-60Hz (1800W) • 220-230Vac / 50-60Hz (1980W) • 230-240Vac / 50-60Hz (2090W) For TUV/CB/others safety rating only • 180-220Vac / 50-60Hz (2090W) For UL/cUL safety rating only • 220-240Vac / 50-60Hz (2200W)
+12V	• Max: 100A / Min: 0A (100-127Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 174.17A / Min: 0A (230-240Vac) • Max: 174.17A / Min: 0A (180-220Vac) • Max: 183.33A / Min: 0A (220-240Vac)
12V sb	• Max: 2.1A / Min: 0A
Output Type	• Backplanes (connector)
Certification	• Titanium Level Certified

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
