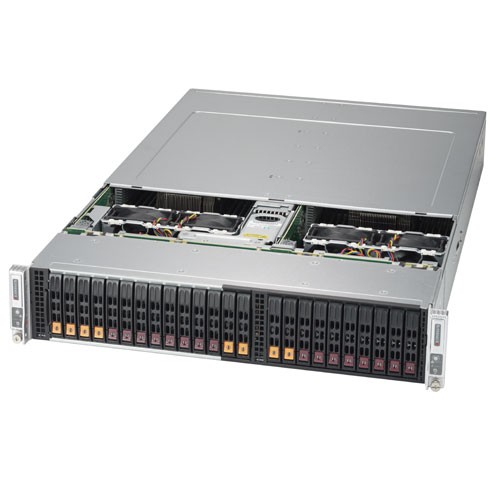

  • Supermicro 2U Rackmount SYS-2029BT-DNC0R - Angle

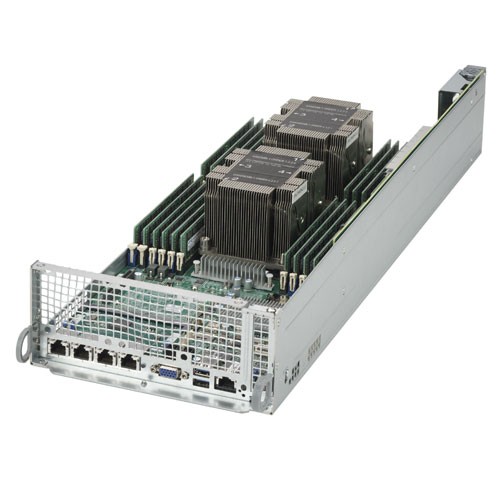

  • Supermicro 2U Rackmount SYS-2029BT-DNC0R - Node

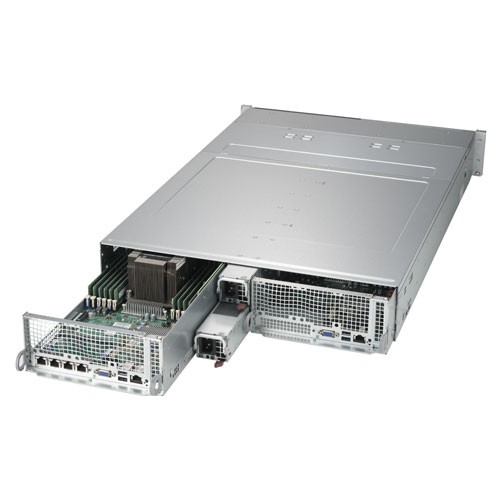

  • Supermicro 2U Rackmount SYS-2029BT-DNC0R - Back

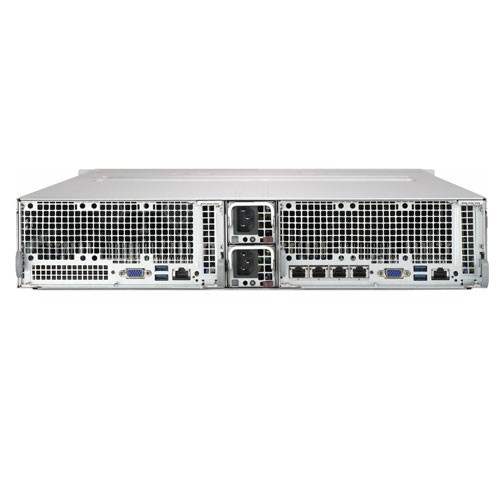

  • Supermicro 2U Rackmount SYS-2029BT-DNC0R - Rear

Supermicro 2U Rackmount SuperServer BigTwin SYS-2029BT-DNC0R

Call for price.
SKU:SYS-2029BT-DNC0R

Quick Overview:

Key Features:
• Compute Intensive Application | HPC, Data Center |
   Enterprise Server | Hyperscale / Hyperconverged
• Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Up to 3TB ECC 3DS RDIMM/LRDIMM, up to DDR4-2666MHz; 24 DIMM slots
• 2 PCI-E 3.0 x8 slot, 1 PCI-E 3.0 x16, 1 SIOM card support (flexible networking) Note: must bundle with Network card
• IPMI 2.0 + KVM with dedicated LAN
• 4 NVMe/SAS3 + 8 SAS3 Hot-swap 2.5" drive bays; 2 internal M.2 NVMe/SATA slots
• SAS3 support via Broadcom 3216; IT mode
• Video via Aspeed AST2500 BMC
• 4 Heavy duty 8cm PWM fans with air shroud
• 2200W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 2 DIMM, 1 HDD/NVMe and 1 SIOM card per node). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro SuperServer SYS-2029BT-DNC0R
Product SKU
• SuperServer 2029BT-DNC0R (Black)
Motherboard
    Super X11DPT-B
Processor/Cache (per node)
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory (per node)
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SAS • SAS3 (12Gbps) via Broadcom 3216; IT mode
Network • Must bundle with at least one SIOM network card
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video • ASPEED AST2500 BMC
Input/Output (per node)
LAN • 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Video • 1 VGA port
DOM • 1 SuperDOM (Disk on Module) port
System BIOS
BIOS Type • AMI 32Mb SPI Flash ROM
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• Watch Dog
Power Configurations   • ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory.
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature

















• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors















Chassis
Form Factor • 2U Rackmount
Model CSE-217BHD+-R2K22BP
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.6" (447mm)
Depth • 28.75" (730mm)
Gross Weight • 85 lbs (38.6kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• UID button
LED • Power status LED
• Hard drive activity LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express • 2 PCI-E 3.0 x8 slots
• 1 PCI-E 3.0 x16 slot
• 1 SIOM card support (must bundle with network card)
Drive Bays (per node)
Hot-swap

• 4 Hot-swap 2.5" NVMe/SAS3 + 8 Hot-swap 2.5" SAS3 drive bays

Please contact Will JayaTechnical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD.

M.2  • 2 M.2 NVMe/SATA slots
System Cooling
Fans • 4 Heavy duty 8cm PWM fans with air shroud
Power Supply
  2200W Redundant Power Supplies with PMBus
Total Output Power • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
• 45 x 40 x 480 mm
Input • 1200W: 100-127Vac / 50-60Hz
• 1800W: 200-220Vac / 50-60Hz
• 1980W: 220-230Vac / 50-60Hz
• 2090W: 230-240Vac / 50-60Hz
• 2090W: 180-220Vac (for UL/cUL only)
• 2200W: 220-240Vac (for UL/cUL only)
• 2090W: 230-240Vdc (for CCC only)
+12V • Max: 100A / Min: 0A (100-127Vac)
• Max: 150A / Min: 0A (200-220Vac)
• Max: 165A / Min: 0A (220-230Vac)
• Max: 174.17A / Min: 0A (230-240Vac)
• Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
• Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
• Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb • Max: 2.1A / Min: 0A
Output Type • Gold Finger
Certification • 80 Plus Titanium Level
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
