SuperServer SSG-6028R-E1CR24L

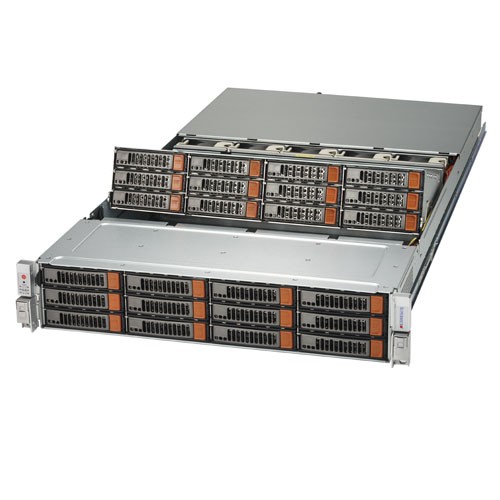

Supermiro SSG-6028R-E1CR24L 2U Storage Rackmount Server Barebone with 1600W Redundant Power Supplies Titanium Level, Intel Xeon E5-2600 v3/v4 family,24x 3.5" Hot-swap
SAS3/SATA3 drive bays.
SAS3/SATA3 drive bays.
Product SKU |
|
|---|---|
| SSG-6028R-E1CR24L | • SuperServer 6028R-E1CR24L (Black) |
Motherboard |
|
|---|---|
| Super X10DSC+ | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required |
* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
System Memory |
|
|---|---|
| Memory Capacity |
• 24x 288-pin DDR4 DIMM slots • Up to 3TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SAS3 | • LSI 3008 SAS3 IT mode |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Controllers | • SIOM support for flexible networking options |
| Graphics | • ASPEED AST2400 BMC |

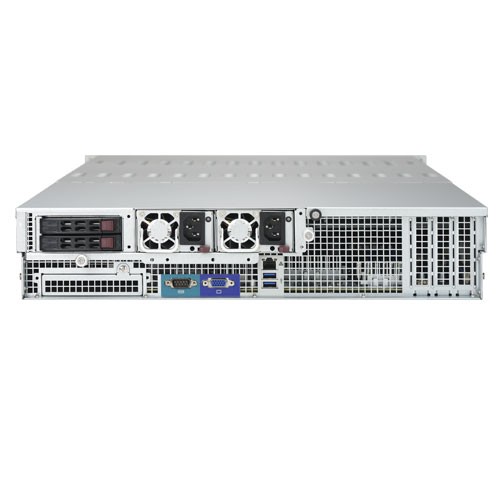

Input/Output |
|
|---|---|
| LAN | • LAN ports via SIOM Add-On-Card: (See SIOM Compatibility Matrix) |
| USB | • 3 USB 3.0 ports (2 rear + 1 Type A) |
| Video | • 1x VGA |
| Serial Port/Header | • 1 Fast UART 16550 port / 1 Header
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-826SE1C4-R1K62 |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 34" (863.6mm) With Cable Management Arm Installed: 41" (1041.4mm) |

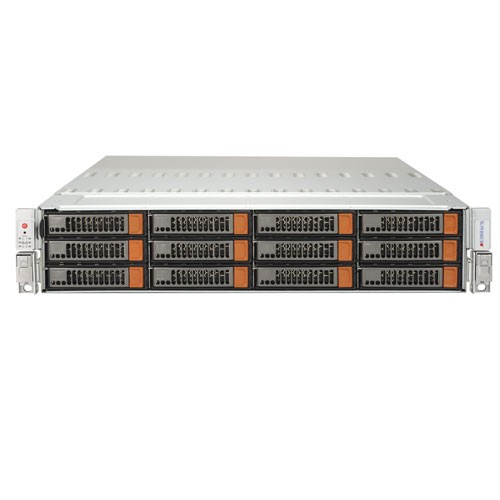

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED |
Expansion Slot |
|
|---|---|
| PCI-Express | • 2 PCI-E 3.0 x16 slots • 1 PCI-E 3.0 x8 slots |
Drive Bays |
|
|---|---|
| Hot-Swaps | • 24x 3.5" Hot-swap SAS3/SATA3 drive bays • Optional 2x 2.5" rear Hot-swap SATA drive bays |
Backplane |
|
|---|---|
| • Two 12 port SAS3 12G expander backplanes, each supporting up to 12x 2.5" SAS3 drives | |
System Cooling |
|
|---|---|
| Fans | • 5x 8cm hot-swap redundant PWM cooling fans |
Power Supply |
|
|---|---|
| 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1000W/1600W |
| Dimension (W x H x L) |
• 73.5 x 40 x 203 mm |
| Input | • 100-127Vac / 13 - 9A / 50-60Hz • 200-240Vac / 10 - 8A / 50-60Hz |
| +12V | • Max: 83.3A / Min: 0A (100-127Vac) • Max: 133A / Min: 0A (200-240Vac) |
| 12Vsb | • Max: 2.1A / Min: 0A |
| Output Type | • 25 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
