Supermicro 2U Rackmount SSG-6028R-E1CR16T

More Views

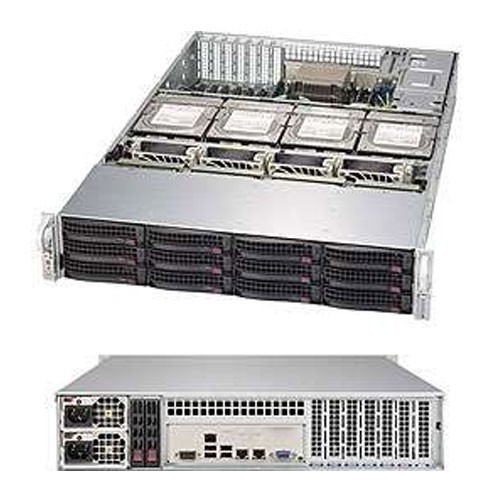

Supermicro 2U Rackmount Storage Server SSG-6028R-E1CR16T

Call for price.

SKU:SSG-6028R-E1CR16T

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
   family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8
• Dual 10GBase-T LAN w/ Intel® X540
• 16x 3.5" Hot-swap drive bays: 12x 3.5" Hot-swap SAS3 drive bays and 4x
   NVMe hybrid drive bays (SAS3/SATA3/NVMe*); 2x 2.5" Hot-swap SATA
   drive bays (rear)
• SAS3 via LSI 3108 controller, HW RAID
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 4x 8cm hot-swap redundant PWM cooling fans
• 1000W Redundant Power Supplies Titanium Level

Description

Details

SuperStorage SSG-6028R-E1CR16T

Supermiro SSG-6028R-E1CR16T 2U Storage Rackmount Server Barebone with Intel® C612 chipset,16x 3.5" Hot-swap SAS3 drive bays with Super X10DRH-CT motherboards and
CSE-829HTS-R1K02LPB 2U Chassis

Product SKU
SSG-6028R-E1CR16T	• SuperServer 6028R-E1CR16T (Black)

Motherboard
	Super X10DRH-CT

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	* Please contact Will JayaTechnical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SAS	• SAS3 (12Gbps) via LSI 3108 controllers; HW RAID 0,1,5,6,10,50,60
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® X540 Dual Port 10GbE • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1 Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output
SAS	• 16 SAS3 (12Gbps) ports
LAN	• 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (rear) • 1 Type A
Video	• 1 VGA port
Serial Port/Header	• 1 Fast UART 16550 port / 1 Header

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-829HTS-R1K02LPB

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 25.5" (647mm)
Gross Weight	• 58 lbs (26.3 kg)

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED

Expansion Slot
PCI-Express	• 1 PCI-E 3.0 x16 slot • 6 PCI-E 3.0 x8 slots

Drive Bays
Hot-Swaps	• 16x 3.5" Hot-swap SAS3 drive bays
Optional	• 2x 2.5" Hot-swap SATA drive bays (rear)

Backplane
	• SAS3 expander backplane

System Cooling
Fans	• 4x 8cm hot-swap redundant PWM cooling fans

Power Supply
	1000W Redundant Power Supplies with PMBus
Total Output Power	• 800W/1000W
Dimension (W x H x L)	• 73.5 x 40 x 203 mm
Input	• 100-127Vac / 9.8 - 7A / 50-60Hz • 200-240Vac / 7 - 5A / 50-60Hz
+12V	• Max: 66.7A / Min: 0A (100-127Vac) • Max: 83A / Min: 0A (200-240Vac)
12Vsb	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Titanium Level

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
