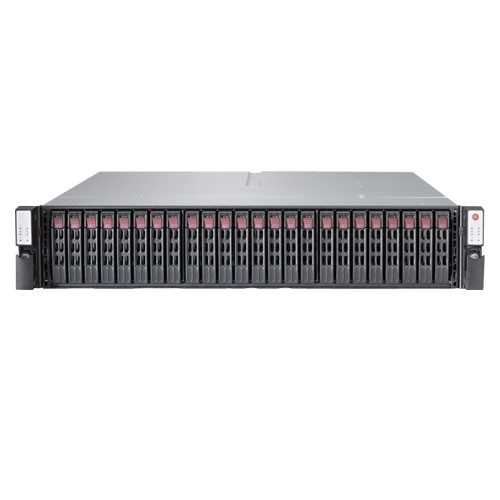

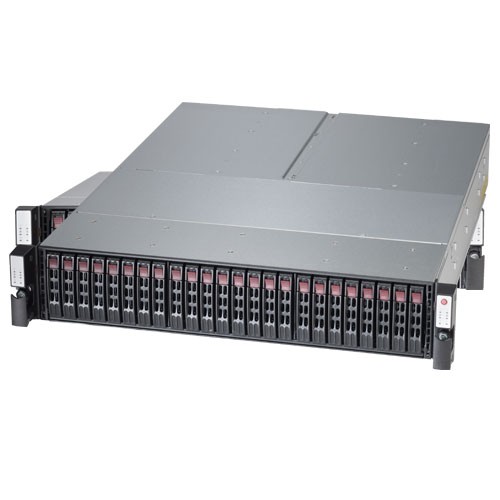

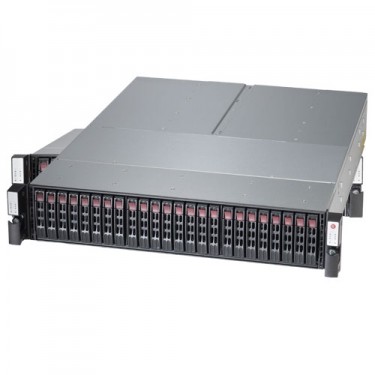

Details
bays Internal 1x SAS/SATA ports for OS load on SLC SATA DOM per node using Supermicro Super X9DBS-F-2U Server Motherboard and CSE-927ETS 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SSG-2027B-DE2R24L | • SuperStorage 2027B-DE2R24L (Black) |
Motherboard |
|
|---|---|
| 2x Super X9DBS-F-2U | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket B2 (LGA 1356) |
| Cache | • Up to 25MB |
| System Bus | • QPI up to 8 GT/s |
System Memory (per Node) |
|
|---|---|
| Memory Capacity |
• 6x 240-pin DIMM slots • Supports up to 192GB DDR3 ECC Registered memory • Memory Mirroring supported |
| Memory Type | • 1866/1600/1333/1066/800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs • NVDIMM support. (Not all vendor's NVDIMM are supported. Please contact your sales representative for details) |
| DIMM Sizes | • 1GB, 2GB, 4GB , 8GB , 16GB , 32GB |
| Memory Voltage | • 1.5 V / 1.35V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602J chipset |
| SAS/SATA* | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1 |
| SAS2 Expander | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Intel® i350 Dual-Port Gigabit Ethernet Controller |
| Graphics | • Matrox G200eW 16 MB DDR2 |
| Super I/O | • Winbond 83527HF chip |
| Others | • PCI-E 3.0 x8 node to node/NTB connectivity • PLX Technology PEX8717; PLX ExpressNIC SDK available from PLX. NDA required |
Expansion Slots (per Node) |
|
|---|---|
| PCI-Express | • 3x PCI-E 3.0 x8 slots (on riser) |
Input/Output (per Node) |
|
|---|---|
| SAS | • 1x JBOD expansion port per node (mini-SAS HD) |
| LAN | • 2x RJ45 LAN ports |
| USB | • 2x USB rear ports (via KVM cable) • 1x USB on-board (TypeA) |
| VGA | • 1x VGA Port (via KVM cable) |
| Serial Port/Header | • 1x console port (via KVM cable); Board to Board serial port connection available for management |
System Bios |
|
|---|---|
| Bios Type | • 16MB SPI Flash EEPROM with AMI® BIOS |
| Bios Features | • Plug and Play (PnP)
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-927ETS |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (88mm) |
| Width | • 17.2" (437mm) |
| Depth | • 26.75" (679mm) |
| Weight | • 85 lbs (38.6 kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button • Alarm Mute Switch |
| LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • System Overheat LED • Power Fail LED |
Drive Bays |
|
|---|---|
| Hot-Swaps | • 24x Hot-swap 2.5" Drive Bays shared between server nodes • SAS or enterprise SATA HDD only recommended • SATA drives require LSI interposer |
Backplane |
|
|---|---|
| SAS2 dual Expander Backplane, features: |
|
System Cooling |
|
|---|---|
| Fans | • 10x PWM Fans |
Power Supply |
|
|---|---|
| 920W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I2C, and PFC | |
| AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output | • +5V standby: 4A • +12V: 75A |
| with Power D istributor |
• +5V: 45A • +3.3V: 24A • -12V: 0.6A |
| Certification | • Platinum Certified |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Voltages. • 5+1-switching voltage regulator |
| FAN | • Total of 10 fan headers supporting up to 10 fans |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for 10x fan connectors • PECI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
5°C to 35°C (41°F to 95°F)
|
