Details
using Supermicro Super X10QBL-4 motherboard and CSE-828TQ-R1K43LPB Chassis.
Product SKU |
|
|---|---|
| SYS-8028B-TR4F | • SuperServer 8028B-TR4F (Black) |

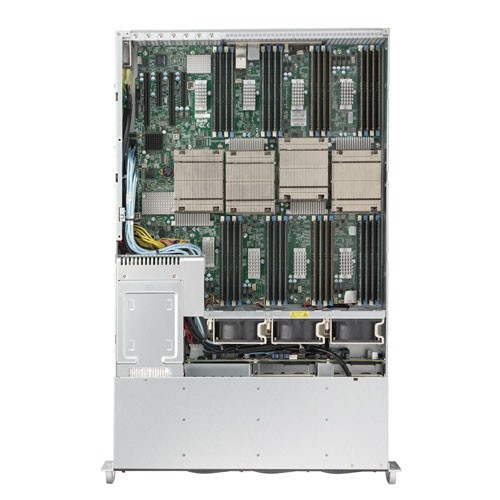

Motherboard |
|
|---|---|
| Super X10QBL-4 | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP) |
| Cache | • Up to 60 MB |
| System Bus | • QPI up to 9.6 GT/s |
System Memory |
|
|---|---|
| Memory Capacity |
• 32x 288-pin DDR4 DIMM slots • Supports up to 4TB DDR4 ECC 3DS LRDIMM in 32 DIMM slots |
| Memory Type | • 1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs |
| DIMM Sizes | • 128GB, 64GB, 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602J chipset |
| SATA | • SATA2 (3Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Intel® i350 Dual port GbE LAN |
| Graphics | • ASPEED AST2400 BMC |

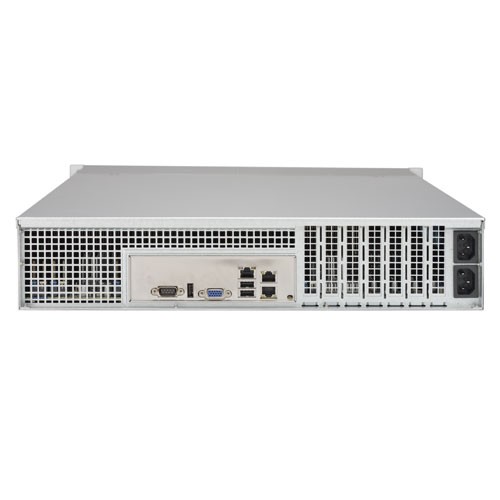

Input/Output |
|
|---|---|
| SATA | • 2x SATA3 (6Gbps) ports • 4x SATA2 (3Gbps) ports |
| LAN | • 2x RJ45 Gigabit Ethernet LAN ports • 1x dedicated LAN port for IPMI |
| USB | • 3x USB 2.0 rear ports |
| Video | • 1x VGA port |
| Serial Port / Header | • 1 Fast UART 16550 serial port |
System Bios |
|
|---|---|
| Bios Type | • 128MB SPI Flash EEPROM with AMI® BIOS |
| Bios Features | • Plug and Play (PnP)
|

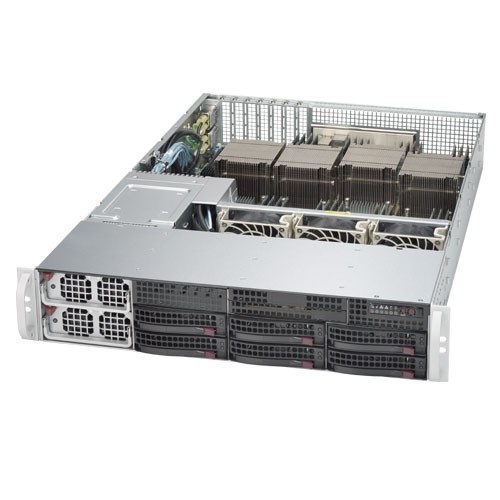

Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-828TQ-R1K43LPB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 27.9" (709mm) |
| Weight | • 66.5 lbs (30.2 kg) |
| Available Color | • Black |

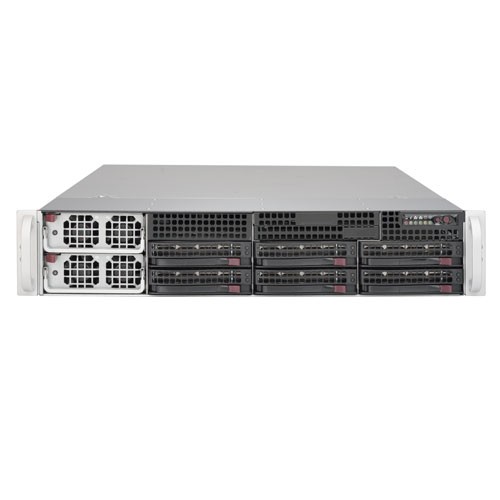

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED |
Expansionn Slot |
|
|---|---|
| PCI-Express | • 2x PCI-E 3.0 x16 Low-profile slot • 2x PCI-E 3.0 x8 Low-profile slot |
Drive Bays |
|
|---|---|
| Hot-swap | • 6x 3.5" Hot-swap Drive Bays |
Backplane |
|
|---|---|
| • SAS/SATA HDD Backplane | |
Peripheral Drives |
|
|---|---|
| DVD-ROM | • 1x Slim DVD-ROM (Optional) |
System Cooling |
|
|---|---|
| Fans | • 3x 8cm Hot-swap Cooling fans |
| Shrouds | • 1x Air Shroud |
Power Supply |
|
|---|---|
| Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 | |
| AC Voltage | • 100-240 V, 50-60 Hz, 15 Amp max |
| +12V | • 100 Amp/115 Vac • 117 Amp/230 Vac |
| With Power Distributor |
• +5V: 30 Amp • +3.3V: 25 Amp • -12V: 0.6 Amp |
| Cerification | • Platinum Certified |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V |
| FAN | • 4-pin fan headers with tachometer status monitoring • Low noise fan speed control mode |
| Temperature | • Monitoring for CPU and system environment • Thermal Control for 10x fan connectors |
| Other Features | • Chassis intrusion detection |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature: 10°to 35°C (50°to 95°F) |
