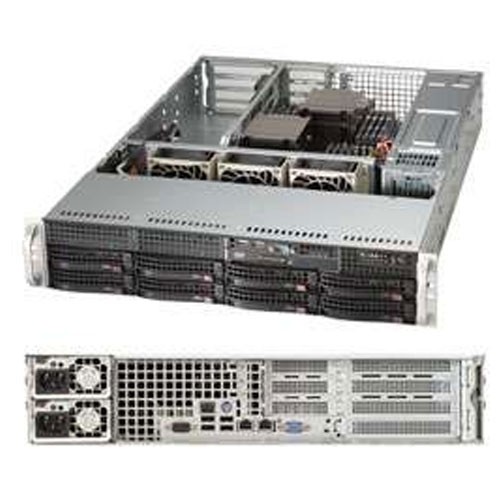

Super X9DBU-iF Server Motherboard and CSE-825TQ-R740UB 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-6027B-URF | • SuperServer 6027B-URF (Black) |
Motherboard |
|
|---|---|
| Super X9DBU-iF | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket B2 (LGA 1356) |
| Cache | • Up to 25MB |
| System Bus | • QPI up to 8 GT/s |
System Memory |
|
|---|---|
| Memory Capacity |
• 12x 240-pin DDR3 DIMM slots • Supports up to 384 GB DDR3 ECC Registered memory (RDIMM) • Supports up to 96 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602 Chipset |
| SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Intel® i350 Dual Port Gigabit Ethernet |
| Graphics | • Matrox G200eW |
Input/Output |
|
|---|---|
| SAS/SATA | • Customizable storage |
| LAN | • 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 8x USB 2.0 ports total (2 rear + 4 via header + 2 Type A) |
| VGA | • 1x VGA port |
| Serial Port/Header | • 2x Fast UART 16550 ports / 1 rear and 1 header
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-825TQ-R740UB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Weight | • 52 lbs (23.6kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button • UID button |
| LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slot |
|
|---|---|
| PCI-Express | • 1x UIO (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
|---|---|
| Hot-Swaps | • 8x 3.5" Hot-swap SAS / SATA HDD trays (ready for UIO or PCI-E storage controller card) |
Backplane |
|
|---|---|
| • 1x 2U SAS backplane w/ Enclosure Management (SAS support requires optional SAS controller) | |
Peripheral Drives |
|
|---|---|
| DVD-ROM | • Slim DVD-ROM drive (optional) |
System Cooling |
|
|---|---|
| Fans | • 3x 80mm 7,000 RPM 4-pin PWM fans |
Power Supply with Power Distributor |
|
|---|---|
| 740W (1+1) Redundant high-efficiency power supply with PMBus | |
| AC Input | • 100-240 V, 50-60 Hz, 9-3.5 Amp |
| DC Output | • 4 Amp @ +5V standby • 61.7 Amp @ +12V |
| with Power D istributor |
• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
| Certification | • Platinum Certified |
System Bios |
|
|---|---|
| Bios Type | • 64Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • BIOS resuce hot keys • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
5°C to 35°C (41°F to 95°F) |
