Details

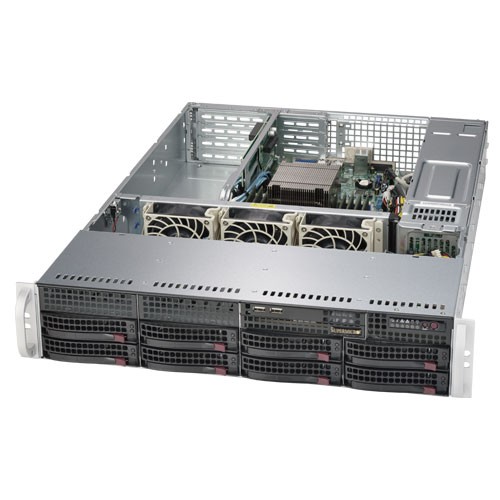

Super X10SRW-F Server Motherboard and CSE-825TQ-R500WB 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-5028R-WR | • SuperServer 5028R-WR (Black) |
Motherboard |
|
|---|---|
| Super X10SRW-F | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **) |
| Core / Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| Note | • † BIOS version 2.0 or above is required ** Motherboard supports this maximum TDP. Please verify your system can thermally support |
System Memory (per Node) |
|
|---|---|
| Memory Capacity |
• 8x 288-pin DDR4 DIMM slots • Up to 1TB ECC 3DS LRDIMM • Up to 512GB ECC LRDIMM • Up to 256GB ECC RDIMM |
| Memory Type | • 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
| DIMM Sizes | • 3DS LRDIMM: 128GB • LRDIMM: 64GB, 32GB • RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602J chipset |
| SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Intel® i350 Dual-Port Gigabit Ethernet Controller |
| Video | • Matrox G200eW 16 MB DDR2 |

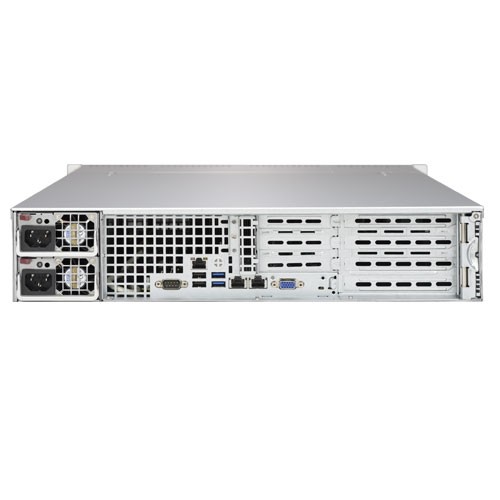

Input/Output (per Node) |
|
|---|---|
| SATA | • 8x SATA3 (6Gbps) ports |
| LAN | • 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 2x USB 2.0 ports (front) • 2x USB 2.0, 3.0 ports (rear) |
| Video | • 1x VGA port |
| Serial Port/Header | • 1x Fast UART 16550 serial port
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-825TQ-R500WB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (88.9mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Weight | • 59 lbs (26.7 kg) |
| Available Color | • Black |

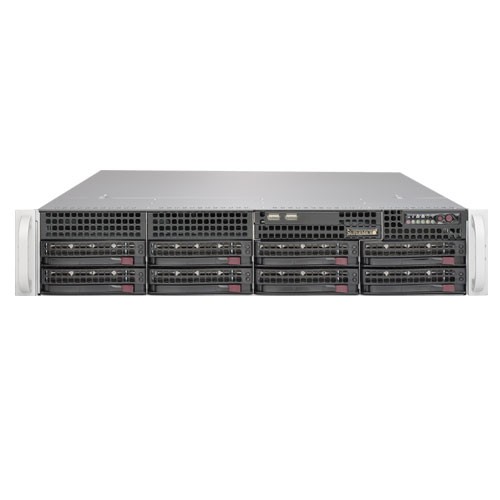

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • System Overheat LED |
Expansion Slots |
|
|---|---|
| PCI-Express | • 4x PCI-E 3.0 x8 Full-height Full-length slots • 1x PCI-E 3.0 x8 Low-profile Half-length slot |
Drive Bays |
|
|---|---|
| Hot-Swaps | • 8x 3.5" Hot-swap SATA3 drive bays |
Backplane |
|
|---|---|
| SAS/SATA HDD Backplane
(SAS support requires optional SAS controller) |
|
System Cooling |
|
|---|---|
| Fans | • 3x 80x80x38mm 7K RPM Cooling fans |
Power Supply |
|
|---|---|
| 500W high-efficiency redundant power supplies with PMBus | |
| AC Input | • 100-240 V, 50-60 Hz, 6.1-2.6 Amp |
| DC Output | • 4 Amp @ +5V standby •41.7 Amp @ +12V |
| with Power D istributor |
• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
| Certification | • Platinum Certified |
System Bios |
|
|---|---|
| Bios Type | • 8MB SPI Flash EEPROM with AMI BIOS |
| Bios Features | • DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • MBIOS 2.3 |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
5°C to 35°C (41°F to 95°F) |
