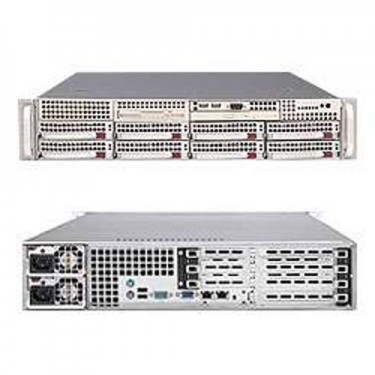

Supermicro 2U Rackmount Server SYS-5025M-URV

Call for price.

SKU:SYS-5025M-URV

Quick Overview:

Key Features:
• Xeon® 3200/3000 Series, Pentium® D, Pentium Extreme Edition,
Pentium 4, & Celeron D in LGA775 Package (FSB 1066/800/533)
• Up to 8GB unbuffered ECC / non-ECC DDR2 667/533 SDRAM
• 1 Universal I/O (UIO) Slot,
3 PCI-E x8 (Full-height / Full-length) Expansion Slots
• Intel® 82573V + Intel® 82573L PCI-e Gigabit Ethernet Controllers
• 8 x 3.5" Hot-swap Drives Trays
• 700W High-efficiency Redundant Power Supply

Description

Details

SuperServer SYS-5025M-URV / SYS-5025M-URB 2U Rackmount

Supermicro SYS-5025M-URV / SYS-5025M-URB 2U Rackmount Barebone with 700W High-efficiency Redundant Power Supply,Intel 3010 (Mukilteo-2P) chipset, 8x 3.5" SATA
Hot-swap drive trays using Supermicro Super PDSMU motherboard and SC825TQ-R700UV Chassis.

Product SKU
SYS-5025M-URV	• SuperServer 5025M-URV (Silver)
SYS-5025M-URB	• SuperServer 5025M-URB (Black)

Motherboard
	Super PDSMU

Processor/Cache
CPU	• Single LGA775 ZIF Socket • Supports an Intel® Xeon® 3200 Series quad-core processor • Supports an Intel® Xeon® 3000 Series (Conroe) dual-core processor • Supports an Intel® Pentium® D dual-core processor • Supports an Intel® Pentium® Extreme Edition processor • Supports an Intel® Pentium® 4 processor • Supports an Intel® Celeron® D processor
System Bus	• 1066 / 800 / 533 MHz system bus

System Memory
Memory Capacity	• Four 240-pin DIMM sockets • Supports up to 8 GB of memory (Single / Dual Channel)
Memory Type	• DDR2 667/533MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes	• 256 MB, 512 MB, 1 GB, 2GB
Memory Voltage	• 1.8V only

On-Board Devices
Chipset	• Intel 3010 (Mukilteo-2P) chipset • ICH7R + PXH + Intel® 82573V + Intel® 82573L
Serial ATA	• Intel® ICH7R SATA controller built-in (3 Gbps) • RAID 0, 1, 5, 10 support (Windows Only) • RAID 0, 1, 10 support (Linux)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support • SIMSO Slot - Supermicro Intelligement Management • (Optional: AOC-SIMSO+) • NOTE: Must use Dedicated LAN for IPMI function
Network Controllers	• 2x Single-port Gigabit PCI-Express Ethernet Controllers • Intel® 82573V + Intel® 82573L • Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output
VGA	• On-board ATI ES1000 (16MB) graphics
Super I/O	• Winbond 83627HG chip
Clock Generator	• CK410

Input/Output
Serial ATA	• Four Serial ATA ports (3 Gbps performance) • Four SATA hard drives supported
IDE	• One EIDE channel supports up to two UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	• 1 Floppy controller; 1.44 MB
LAN	• 2x RJ45 LAN ports
USB	• Up to 6x USB 2.0 / 1.1 compliant ports • 2 rear ports • 2 internal header for 4 USB 2.0/1.1 ports
VGA	• 1x VGA port
Keyboard / Mouse	• PS/2 keyboard and mouse ports
Serial Port	• 1x Fast UART 16550 serial port • 1x internal header

System Bios
Bios Type	• 8Mb Flash EEPROM with Phoenix BIOS®
Bios Features	• Plug and Play (PnP) • DMI 2.3 support • PCI 2.2 • ACPI 1.0 • SMBIOS 2.3 • USB Keyboard support

System Bios

Bios Type

• 8Mb Flash EEPROM with Phoenix BIOS®

Bios Features

• Plug and Play (PnP)
• DMI 2.3 support
• PCI 2.2
• ACPI 1.0
• SMBIOS 2.3
• USB Keyboard support

Chassis
Form Factor	• 2U Rackmount
Model	• SC825TQ-R700UV

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 25.5" (648mm)
Weight	• 55 lbs (24.9kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • Power fail LED

Expansionn Slot
Left Side	• 1 Universal I/O (UIO) Slot • 3 (x8) PCI-E Slots (Full-height / Full-length)

Drive Bays
Hot-swap	• 8x 3.5"SATA Hot-swap drive trays • Supports up to 6x SATA hard drives

Peripheral Drives
DVD-ROM	• Slim 8x DVD, 24x CD, DVD-ROM Drive
Floppy	• Slim 1.44MB Floppy Drive (Optional)

Backplane
	• SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

System Cooling
Fans	• 3x 80mm 6300 RPM fans
Shroud	• 1x Air Shroud

Power Supply
	700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Input	• 100 - 240V, 60-50Hz, 10 - 4 Amp
+5V standby	• 4 Amp • 75 Amp @ +12V
+12V	• 57 Amp
With Power Distributor	• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory Voltage, Chipset Voltage • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	• Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans • 8x fans with tachometer status monitoring • Status monitor for speed control • Support 3-pin speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• CPU / System Overheat LED • UID / Remote UID LED ( IPMI Only )
Other Features	• Chassis intrusion detection • Chassis intrusion header • SDDC Support

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°to 35°C (50°to 95°F) • Non-operating Temperature: -40°to 70°C (-40°to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)
