Details

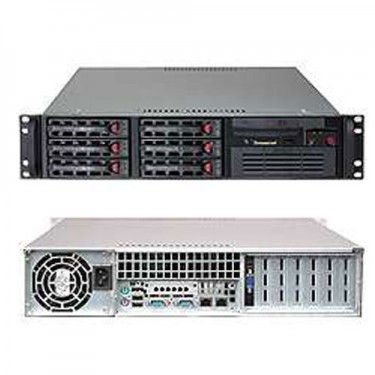

motherboard and SC822T-400LP Chassis.
Product SKU |
|
|---|---|
| SYS-5025B-T | • SuperServer 5025B-T (Beige) |
| SYS-5025B-TB | • SuperServer 5025B-TB (Black) |
Motherboard |
|
|---|---|
| Super X7SBE | |
Processor/Cache |
|
|---|---|
| CPU | • Single LGA775 ZIF Socket |
| System Bus | • 1333 / 1066 / 800 MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
• Four 240-pin DIMM sockets • Supports up to 8 GB of memory (Dual Channel) |
| Memory Type | • DDR2 800/667MHz unbuffered, ECC SDRAM, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1 GB, 2GB |
| Memory Voltage | • 1.8V only |
On-Board Devices |
|
|---|---|
| Chipset | • Intel 3210 chipset • ICH9R + PXH + Intel® 82573V + Intel® 82573L |
| Serial ATA | • Intel® ICH9R SATA controller built-in (3 Gbps) |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • 2x Single-port Gigabit PCI-Express Ethernet Controllers |
| VGA | • On-board ATI ES1000 (32MB) graphics |
| Super I/O | • Winbond 83627DHG chip |
| Clock Generator | • CK505 |
Expansion Slot |
|
|---|---|
| PCI-Express | • 1 (x8) PCI-e slot • 1 (x4) PCI-e slot |
| PCI-X | • 2 64 bit PCI-X 133 Mhz slot • 2 64 bit PCI-X 100 Mhz slot |
Input/Output |
|
|---|---|
| Serial ATA | • Six Serial ATA ports (3 Gbps performance) • Six SATA hard drives supported • External SATA supported |
| LAN | • 2x RJ45 LAN ports |
| USB | • Up to 7x USB 2.0 / 1.1 compliant ports • 2 rear ports • 2 internal heades for 4 USB 2.0/1.1 ports + 1 on-board |
| VGA | • 1x VGA port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 1x Fast UART 16550 serial port • 1x internal header |
System Bios |
|
|---|---|
| Bios Type | • 16Mb Flash EEPROM with Phoenix BIOS® |
| Bios Features | • Plug and Play (PnP) |
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • SC822T-400LP |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 16.8" (426mm) |
| Depth | • 25.6" (650mm) |
| Weight | • 50 lbs (22.7kg) |
| Available Color | • Black / Beige |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED |
| Optional Front Bezel | • Please contact Will Jaya Sales for Front Bezel Compatability |
Drive Bays |
|
|---|---|
| Hot-swap | • 6x 3.5" SATA Hot-swap drive trays |
| Peripheral Bay(s) | • 1x 5.25" full-height peripheral bay |
Peripheral Drives |
|
|---|---|
| CD-ROM | • TEAC Slim 24x CDROM Drive (Optional) |
Backplane |
|
|---|---|
| • SAS/SATA HDD Backplane (SAS support requires optional SAS controller) | |
System Cooling |
|
|---|---|
| Fans | • 4x 80mm 6300 RPM fans |
Power Supply |
|
|---|---|
| 400W AC high-efficiency power supply w/ PFC | |
| AC Voltage | • 100 - 240V, 60-50Hz, 6-2.7 Amp |
| +5V | • 30.0 amp |
| +5V standby | • 4.0 amp |
| +12V | • 32.0amp |
| -12V | • 0.5 amp |
| +3.3V | • 25.0 amp |
| Cerification | • Certified |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores ( +1.8V, +3.3V, +5, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset) • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V • Adjustable CPU clock frequency ratio |
| FAN | • Total of six 4-pin fan headers • 6x fans with tachometer monitoring • Status monitor with firmware / software speed control • Status monitor for on/off control • Support 3-pin fans (without speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan connector |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor 2 (TM2) support • PECI |
| LED | • CPU / System Overheat LED |
| Other Features | • Chassis intrusion detection |
Operating Environment |
|
|---|---|
| Environmental Spec. | • Operating Temperature: 10°to 35°C (50°to 95°F)
|
