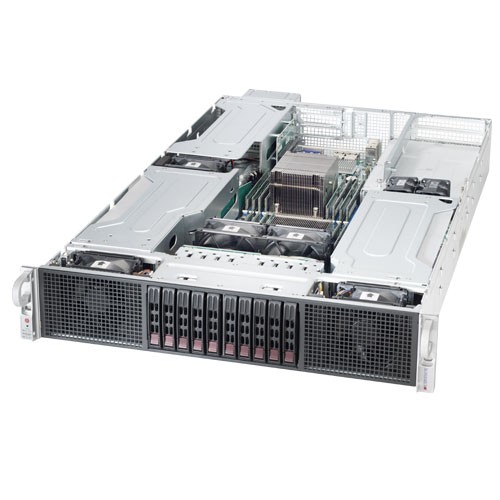

Supermicro 2U Rackmount SYS-2028GR-TR - Angle

More Views

Supermicro 2U Rackmount GPU SuperServer SYS-2028GR-TR

Call for price.

SKU:SYS-2028GR-TR

Quick Overview:

Key Features:
• Up to 4 GPU
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x
DIMM slots
• 4x PCI-E 3.0 x16 slots (GPU/MIC, opt.), 1x PCI-E 3.0 x8 (in x16) low-profile slot
• Intel® i350 Dual-Port 1GbE LAN
• 10x Hot-swap 2.5" SATA Drive Bays
• 2000W Redundant Power Supplies Platinum Level (94%+)
• 5x heavy duty cooling fansx SuperDOM (Disk on Module) ports
• Smart server management tools

Description

Details

SuperServer SYS-2028GR-TR

Supermicro 2028GR-TR 2U Rackmount Barebone with 2000W Redundant Power Supplies, Intel® C612 chipset support 10x Hot-swap 2.5" SATA Drive Bays using Supermicro
X10DRG-H Server Motherboard and CSE-218GH-R2K03B 2U Rackmount Chassis.

Product SKU
SYS-2028GR-TR	• SuperServer 2028GR-TR (Black)

Motherboard
	Super X10DRG-H

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
GPU/Xeon Phi Support	• K1/K2/K10/K40/K80/M40/M60/Xeon Phi

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Connectivity	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output
SATA	• 10x SATA3 (6Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 4x USB 3.0 ports (2 rear, 2 via header) • 2x USB 2.0 ports (2 via headers)
Video	• 1x VGA Connector
Serial Port	• 1x Serial header

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.3 • UEFI • RTC (Real Time Clock) Wakeup

System Bios

Bios Type

• 128Mb SPI Flash EEPROM with AMI® BIOS

Bios Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.3
• UEFI
• RTC (Real Time Clock) Wakeup

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-218GH-R2K03B

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 31" (787mm)
Gross Weight	• 54 lbs (24.5 kg)

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED

Expansion Slot
PCI-Express	• 4x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards, option) • 1x PCI-E 3.0 x8 (in x16) low-profile slot

Drive Bays
Hot-Swaps	• 10x 2.5" Hot-swap drive bays

System Cooling
Fans	• 5x 8cm heavy duty fans with optimal fan speed control

Power Supply
	2000W 1U Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1800W/1980W/2000W
Dimension (W x H x L)	• 73.5 x 40 x 265 mm
Input	• 100-120Vac / 11.8-9.8A / 50-60Hz • 200-220Vac / 10-9.5A / 50-60Hz • 220-230Vac / 10-9.8A / 50-60Hz • 230-240Vac / 10-9.8A / 50-60Hz • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V	• Max: 83.3A / Min: 0.1A (100-120Vac) • Max: 150A / Min: 0.1A (200-220Vac) • Max: 165A / Min: 0.1A (220-230Vac) • Max: 166.7A / Min: 0.1A (230-240Vac) • Max: 166.7A / Min: 0.1A (200-240Vac) (UL/cUL only)
12V SB	• Max: 3.5A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. • 5 Phase-switching voltage regulator
FAN	• Total of five 4-pin PWM fans • 5x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 10x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• Power Fail / Overheat LED • Suspend-state Indicator LED • UID LED
Other Features	• SDDC SupportS 2.3

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 5°C to 40°C (41°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
