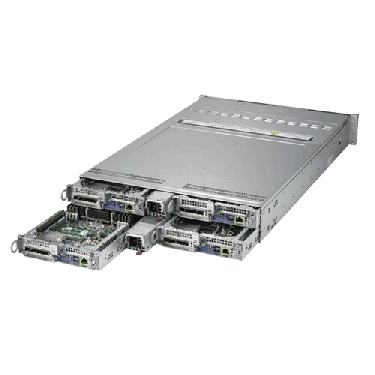

  • Supermicro 2U Rackmount A+ Server AS-2123BT-HTR ANgle
  • Supermicro 2U Rackmount A+ Server AS-2123BT-HTR Node
  • Supermicro 2U Rackmount A+ Server AS-2123BT-HTR Rear

Supermicro 2U Rackmount A+ Server AS-2123BT-HTR

Call for price.
SKU:AS-2123BT-HTR

Quick Overview:

Key Features:
• 4x hot-pluggable systems (nodes) in a 2U form factor
• Dual AMD EPYC™ 7000-Series Processors
• Up to 2TB of memory
• 2 PCI-E 3.0 x16 (LP) slot
• 6 Hot-swap 2.5" SATA3 drive bays
• 2200W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 8 DIMMs, 1 HDD/NVMe and 1 SIOM card per node). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro 2U Rackmount A+ Server AS-2123BT-HTR

Product SKU
AS-2123BT-HTR • A+ Server 2123BT-HTR (Black)
Motherboard (per node)
  • Super H11DST-B
Processor/Chipset (per node)
CPU • Dual AMD EPYC™ 7000-series Processors
• Socket SP3
Cores • Up to 32 Cores
Note Please contact Will Jaya Technical Support for specifics on high power processor support
System Memory (per node)
Memory Capacity • 16 DIMM slots
• Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
• 8-channel memory bus
• For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type

• DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes

• 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage

• 1.2V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices (per node)
Chipset • System on Chip
SAS • SATA3 (6Gbps) via AMD EPYC
Network • 1 PCI-E 3.0 x16 SIOM LAN Networking Slot for flexible networking, see SIOM LAN options support matrix (Must bundle with at least one SIOM network card)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video

• ASPEED AST2500 BMC
Input/Output (per node)
LAN • Provided via SIOM (optional)
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Video • 1 VGA port
DOM • 1 SuperDOM (Disk on Module) port
Others • 1 COM port (header)
• 1 TPM 2.0 header
System BIOS (per node)
BIOS Type

• AMI 128Mb SPI Flash ROM
Management (per node)
Software

• IPMI 2.0
• KVM with dedicated LAN
• SSM, SUM
• SuperDoctor® 5
• Watch Dog
Power Configuration

• ACPI / APM Power Management
Chassis
Form Factor • 2U Rackmount
Model • CSE-217BHQ+-R2K22BP2
Dimension and Weight
Width • 17.25" (438mm)
Height • 3.47" (88mm)
Depth • 28.5" (724mm)
Gross Weight • 85 lbs (38.6 kg)
Available Colors • Black
Front Panel (per node)
Buttons

• Power On/Off button
• UID button
LEDs

• Power status LED
• HDD activity LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express

• 2 PCI-E 3.0 (x16) Low-profile slots
• 1 SIOM card support (must bundle with network card)
M.2

• Interface: 1 SATA/PCI-E 3.0 x4
• Form Factor: 2280, 22110
• Key: M-key
Drive Bays (per node)
Hot-swap

• 6 Hot-swap 2.5" SATA3 drive bays
System Cooling
Fans

• 4 Heavy duty 8cm PWM fans
Power Supply
  2200W Redundant Power Supplies with PMBus
Total Output Power • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
 • 45 x 40 x 480 mm
Input • 1200W: 100-127Vac / 50-60Hz
• 1800W: 200-220Vac / 50-60Hz
• 1980W: 220-230Vac / 50-60Hz
• 2090W: 230-240Vac / 50-60Hz
• 2090W: 180-220Vac (for UL/cUL only)
• 2200W: 220-240Vac (for UL/cUL only)
• 2090W: 230-240Vdc (for CCC only)
+12V • Max: 100A / Min: 0A (100-127Vac)
• Max: 150A / Min: 0A (200-220Vac)
• Max: 165A / Min: 0A (220-230Vac)
• Max: 174.17A / Min: 0A (230-240Vac)
• Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
• Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
• Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb • Max: 2.1A / Min: 0A
Output Type • Gold Finger
Certification • 80Plus Titanium Level
Operating Environment / Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C ~ 30°C (50°F ~ 85°F)
   All CPU SKUs supported 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
