Details
|
Product SKU
| |
|---|---|

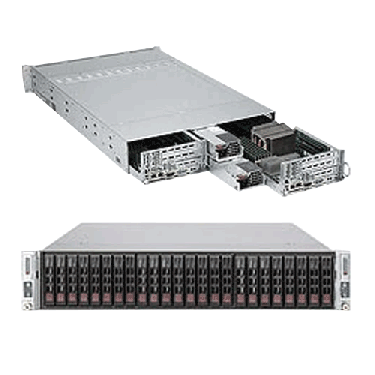

| AS-2122TC-DL6RF4 | • A+ Server 2122TC-DL6RF4 |
|
Motherboard
| |
|---|---|
| • rboard Super H8DCT-HLN4F | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Dual 1207-pin Socket C32 • Supports two 8/6/4-Core ready AMD Opteron™ 4000 Series processors • HT3.0 Link support |
| Chipset | • AMD chipset SR5670 + SP5100 |
| Note | • Supports 4000 series processors with Max ACP 75W (TDP 95W) |
|
System Memory (per node)
| |
|---|---|
| Memory Capacity | • 12 DIMM sockets • Support up to 192GB Registered ECC DDR3 1600/1333/1066 SDRAM in 12 DIMMs • Dual channel memory bus • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | • DDR3 1600/1333/1066 MHz Registered ECC or Unbuffered ECC/non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 1GB, 2GB, 4GB, 8GB, 16GB |
| Memory Voltage | • 1.35V or 1.5V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices (per node)
| SATA | • AMD SP5100 (RAID 0, 1, 10) | SAS | • LSI 6Gbps SAS 2008 IT Mode | IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • Winbond® WPCM450 BMC |
|---|---|
| Network Controllers | • Intel® I350 Quad Gigabit Ethernet LAN controller • 10/100/1000BASE-T support |
| VGA | • Matrox G200 16MB DDR2 |
| Super I/O |
• Winbond® W83527 chip |
|
Expansion Slots (per node)
| PCI-E | • 1x PCI-E 2.0 x16, 1x PCI-E 2.0 x8 in x4 (for SAS adapter card support) |
|---|
|
Input/Output (per node)
| SATA | • 6x SATA (3Gb/s) ports | SAS | • Integrated LSI 2008 IT Mode SAS2 RAID Controller | LAN | • 4 RJ45 LAN ports • 1 RJ45 Dedicated LAN supports IPMI |
|---|---|
| USB | • 4x USB 2.0 ports • 2x Rear, 1x header (2 ports) |
| VGA | • 1x VGA port |
| Serial Ports | • 1x Fast UART 16550 serial port |
|
System BIOS (per node)
| |
|---|---|
| BIOS Type | • 16Mb SPI Flash ROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 2U Twin Rackmount |
| Model | • CSE-217HD-R1K28BP |
|
Dimension and Weight
| |
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.25" (438mm) |
| Depth | • 28.5" (724mm) |
| Gross Weight | • 85 lbs / 38.6 kg |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • 4x Power On/Off button |
| LEDs |
• 4x Power status LED |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 24x Hot-swap 2.5" HDD (12 for each node) |
|
System Cooling
| |
|---|---|
| Fans | • 4x 80mm PWM cooling fans |
|
Power Supply
| |
|---|---|
| 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 | |
| AC Input | • 1000W Output @ 100-140V, 8-12A, 50-60Hz • 1280W Output @ 180-240V, 6-8A, 50-60Hz |
| DC Output |
• 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A |
| Certification | • 80Plus Platinum Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, VBAT, HT, memory, chipset |
| FAN | • Up to 4-fan status tachometer monitoring • Up to four 4-pin fan headers • Status monitor for speed control • 3-pin fan support (w/o speed control) • Low noise fan speed control (4-pin fan only) • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal control for 8x Fan connectors • I2C Temperature Sensing Logic |
| LED | • CPU / System Overheat LED • +5V Standby Alert LED |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 30°C (50°F to 86°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
