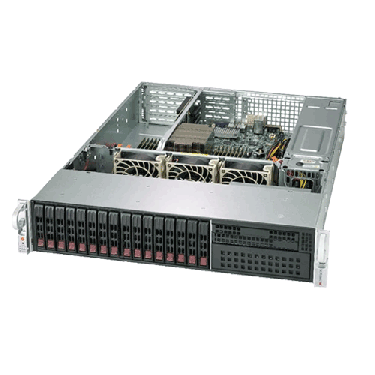

Supermicro 2U Rackmount A+ AMD EPYC Server AS-2113S-WTRT Angle

More Views

Supermicro 2U Rackmount A+ AMD EPYC Server AS-2113S-WTRT

Description

Details

Supermicro 2U Rackmount A+ AMD EPYC Server AS-2113S-WTRT

Product SKU
AS-2113S-WTRT	• A+ Server 2113S-WTRT

Motherboard
	• H11SSW-NT

Processor/Chipset
CPU	• Single AMD EPYC™ 7000-series Processor • Socket SP3
Cores	• Up to 32 Cores
Note	Please contact Will Jaya Technical Support for specifics on high power processor support

System Memory
Memory Capacity	• 16 DIMM slots • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM • 8-channel memory bus
Memory Type	• DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes	• 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	• 1.2V
Error Detection	• Corrects single-bit errors • Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2500 BMC
Network Controllers	• Broadcom BCM57416 Controller
VGA	• ASPEED AST2500 BMC

Expansion Slots
PCI Express	• 1 PCI-E 3.0 x16 (FH/HL) slot • 2 PCI-E 3.0 x8 (FH/HL) slots • 2 PCI-E 3.0 x8 (LP) slots
M.2	• Interface: PCI-E 3.0 x4 (NVMe based) • Form Factor: 2280, 22110 • Key: Onboard M-key • Number of M.2: Dual

Input/Output
NVMe	• Up to 6 U.2 NVMe support via additional cables
SATA	• 16 SATA3 (6 Gbps) ports
LAN	• 2x 10GbBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 5 USB 3.0 ports (4 rear + 1 Type A)
VGA	• 1 VGA port
Others	• 1 COM port • 2 SATA DOM power connectors • TPM 1.2 header

System BIOS
BIOS Type	• AMI 128Mb SPI Flash EEPROM
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 5.1 • USB Keyboard Support • SMBIOS 3.1.1

Chassis
Form Factor	• 2U
Model	• CSE-213AC8-R1K23WB

Dimension and Weight
Width	• 3.5" (89mm)
Height	• 17.2" (437mm)
Depth	• 24.8" (630mm)
Gross Weight	• 59 lbs (26.76 kg)
Available Colors	• N.A.

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED

Drive Bays
Hot-swap	• 16 hot-swap 2.5" SATA3 drive bays • Optional 6 U.2 NVMe drive support with additional cables

Peripheral Drives
Optional	• Optional slim DVD-ROM drive

Backplane
Hybrid Backplane	• Supports up to 8x 2.5" SAS3/SATA3 HDD/SSD and 6x SAS3/SATA3/NVMe Storage Devices

System Cooling
Fans	• 3 heavy-duty PWM fans with optimal fan speed control
Air Shroud	• 1 Air Shroud

Power Supply (76mm Width)
	1200W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1200W
Dimension (W x H x L)	• 76 x 40 x 336 mm
Input	• 100-127Vac / 15-12A / 50-60Hz • 200-240Vac / 8.5-7A / 50-60Hz • 200-240Vdc / 8.5-7A (for CCC only)
+12V	• Max: 83A / Min: 0A (100-127Vac) • Max: 100A / Min: 0A (200-240Vac) • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb	• Max: 4A / Min: 0A
Output Type	• 19 Pairs Gold Finger Connector
Certification	• 80Plus Titanium Level

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT • CPU switching voltage regulator
FAN	• Up to 6-fan status tachometer monitoring • Up to six 4-pin fan headers • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal control for 6x Fan connectors • I²C Temperature Sensing Logic
LED	• CPU / System Overheat LED
Other Features	• Chassis Intrusion Detection • Chassis Intrusion Header

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
