Supermicro 2U Rackmount A+ AMD EPYC Server AS-2023US-TR4 Angle

More Views

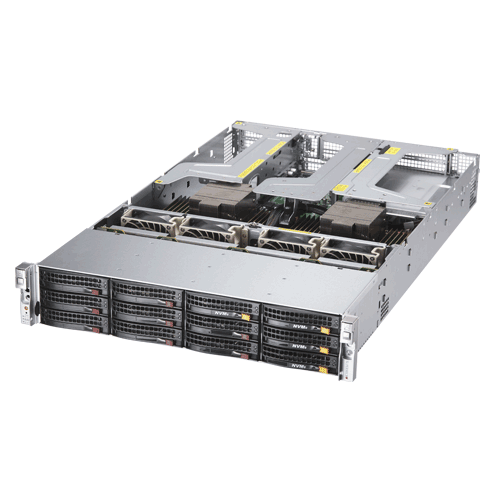

  • Supermicro 2U Rackmount A+ AMD EPYC Server AS-2023US-TR4 Angle

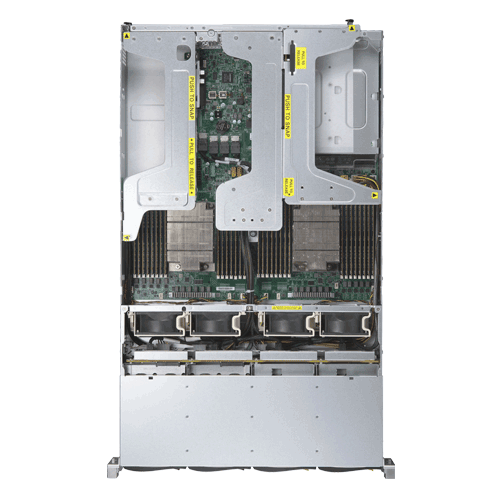

  • Supermicro 2U Rackmount A+ AMD EPYC Server AS-2023US-TR4 Top

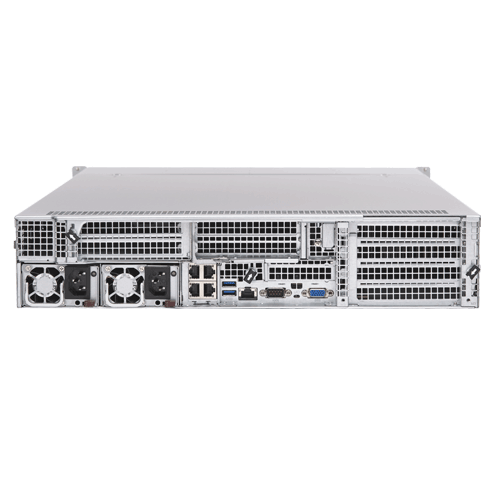

  • Supermicro 2U Rackmount A+ AMD EPYC Server AS-2023US-TR4 Rear

Supermicro 2U Rackmount A+ AMD EPYC Server AS-2023US-TR4

Call for price.
SKU:AS-2023US-TR4

Quick Overview:

Key Features:
• Dual AMD EPYC™ 7000-Series Processors
• Up to 4TB of memory
• Quad Gigabit LAN ports
• 12x hot-swap 3.5" Drive Bays:
• 1600W Redundant Power Supplies Titanium Level (96%+)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 4 DIMMs, 1 HDD/NVMe). Recommended configuration for best performance is at least 1 DIMM per channel per CPU (16 DIMM Total). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro 2U Rackmount A+ AMD EPYC Server AS-2023US-TR4

Product SKU
AS-2023US-TR4 • A+ Server 2023US-TR4
Motherboard
  • H11DSU-iN
Processor/Chipset
CPU • Dual AMD EPYC™ 7000-series Processors (up to 200W)
• Socket SP3
Cores • Up to 32 Cores
Note Please contact Will Jaya Technical Support for specifics on high power processor support
System Memory
Memory Capacity • 32 DIMM sockets
• Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
• 8-channel memory bus
Memory Type

• DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
Memory Sizes

• 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage

• 1.2V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
SATA • SATA3 (6 Gbps)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC
Network Controllers • Provided via Ultra Riser Card
VGA

• ASPEED AST2500 BMC
Input/Output
SATA • 12 SATA3 (6 Gbps) ports
LAN • Quad Gigabit LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA • 1 VGA port
SAS • 12 SAS3 ports support via optional Add-on Card
NVMe • 4 NVMe support with optional cables
Others • 1 COM port (rear)
• 2 SATA DOM power connector
• TPM 1.2 header
System BIOS
BIOS Type

• AMI 128Mb SPI Flash EEPROM
BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS 3.1.1
Chassis
Form Factor • 2U
Model • CSE-829U2TS-R1K62P-T
Dimension and Weight
Width • 3.5" (89mm)
Height • 17.2" (437mm)
Depth • 28.46" (723mm)
Gross Weight • 72 lbs (32.7 kg)
Available Colors • N.A.
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Drive Bays
Hot-swap

• 12 hot-swap 3.5" Drive Bays:
          • 12 SATA3 by default
          • Optional Drive Support: 8 SAS3 + 4 SAS3/NVMe
• 2 rear hot-swap 2.5" drive bays
Backplane
HDD Backplane

• Supports 12 SATA3 or 8 SATA3 + 4 NVMe or 12 SAS3 HDD
System Cooling
Fans

• 4 heavy-duty PWM fans with optimal fan speed control
Power Supply
  1600W Redundant Power Supplies with PMBus
Total Output Power • 1600W/1000W
Dimension
(W x H x L)
 • 73.5 x 40 x 203 mm
Input • 100-127Vac / 13 - 9A / 50-60Hz
• 200-240Vac / 10 - 8A / 50-60Hz
+12V • Max: 83.3A / Min: 0A (100-127Vac)
• Max: 133A / Min: 0A (200-240Vac)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • 80Plus Titanium Level
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
• CPU switching voltage regulator
FAN

• Up to 8-fan status tachometer monitoring
• Up to eight 4-pin fan headers
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 8x Fan connectors
• I2C Temperature Sensing Logic

LED

• CPU / System Overheat LED
Others • Chassis Intrusion Detection
• Chassis Intrusion Header
Operating Environment / Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
