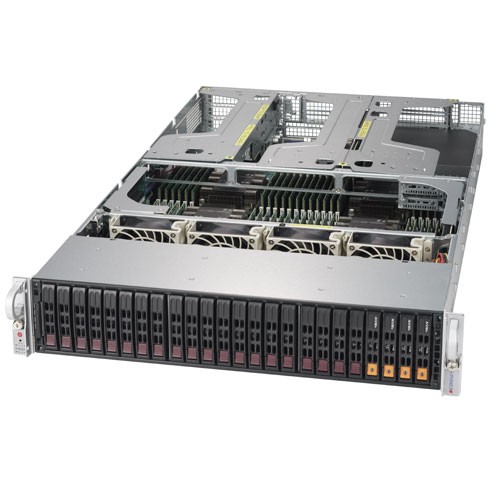

Supermicro 2U Rackmount SYS-2049U-TR4 - Angle

More Views

Supermicro 2U NVMe Rackmount SuperServer SYS-2049U-TR4

Call for price.

SKU:SYS-2049U-TR4

Quick Overview:

Key Features:
• 48 DDR4 DIMM Slots, up to 6TB
• Up to 11 PCI-E 3.0 slots
• 4 Hot-Swap NVMe Bays support via optional NVMe AOC
• Flexible Connectivity Options
• Quad socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
• Up to 6TB 3DS LRDIMM, up to DDR4-2666MHz; 48 DIMM slots
• 5 PCI-E 3.0 x8 slots, 6 PCI-E 3.0 x16 slots
• 4 GbE LAN ports via AOC-2UR66-i4G 1 dedicated IPMI LAN port
• 24 Hot-swap 2.5" SAS3/SATA3 drive bays supported via optional Add-on RAID controller card; 4 Hybrid ports with NVMe support via extra AOC
• 4x 8cm heavy duty fans
• 1600W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 4 CPU, 4 DIMM and 1 HDD installed). Please contact your Will Jaya sales rep for special requirements.

Description

Details

Supermicro SuperServer SYS-2049U-TR4

Product SKU
SYS-2049U-TR4	• SuperServer 2049U-TR4 (Black)

Motherboard
	• Super X11QPH+

Processor/Cache
CPU	• Quad Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s • Support CPU TDP 70-165W with IVR, 205W supported with optional kit
Cores	• Up to 28 Cores with Intel® HT Technology

System Memory
Memory Capacity	• 48 DIMM slots • Up to 6TB ECC 3DS LRDIMM, 6TB ECC RDIMM, DDR4 2666MHz
Memory Type	• 2666MHz ECC DDR4 SDRAM

On-Board Devices
Chipset	• Intel® C621 chipset
SATA	• SATA3 via Intel C621; RAID 0, 1, 5, 10
Network Connectivity	• 4 Gigabit Ethernet ports via AOC-2UR66-i4G; Other options
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	• ASPEED AST2500 BMC

Input / Output
SATA	• 12 SATA3 (6Gbps) ports
SAS	• 24 SAS3 ports support via optional Add-on Cards
NVMe	• 4 Hybrid ports with NVMe support via AOC
LAN	• 4 RJ45 GbE LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear)
Video	• 1 VGA Connector
Serial Port / Header	• 1 COM Port (1 rear)
DOM	• 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS

Management
Software	• SuperDoctor® 5 • Watchdog • NMI • SUM • IPMI 2.0
Power Configuration	• ACPI Power Management • Power-on mode for AC power recovery

PC Health Monitoring
CPU	• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator
FAN	• Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-218UTS-R1K62P

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 30.7" (780mm)
Gross Weight	• 69 lbs (31.2 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • Network activity LEDs • System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express	• 5 PCI-E 3.0 x8 slots • 6 PCI-E 3.0 x16 slots (4 CPUs need to be installed for full access to PCI-E slots and onboard controllers.)

Expansion Slots

PCI-Express

• 5 PCI-E 3.0 x8 slots
• 6 PCI-E 3.0 x16 slots

(4 CPUs need to be installed for full access to PCI-E slots and onboard controllers.)

Drive Bays / Storage
Hot-swap	• 24 Hot-swap 2.5" SAS3/SATA3 drive bays • Optional 24 SAS3 ports via AOC • Optional 20 SAS3 ports via AOC + 4 NVMe ports via AOC

System Cooling
Fans	• 4x 8cm heavy duty PWM fans

Power Supply
	• 1600W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1600W
Dimension (W x H x L)	• 73.5 x 40 x 203 mm
Input	• 100-127Vac / 13 - 9A / 50-60Hz • 200-240Vac / 10 - 8A / 50-60Hz
+12V	• Max: 83.3A / Min: 0A (100-127Vac) • Max: 133A / Min: 0A (200-240Vac)
+12Vsb	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• 80 Plus; Titanium Level

Power Supply
RoHS	• RoHS Compliant
Environmental Spec .	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
