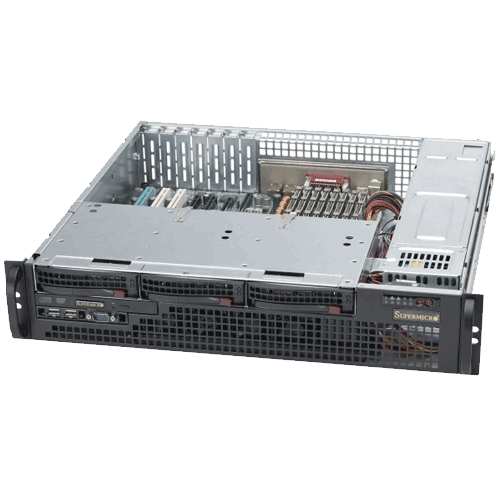

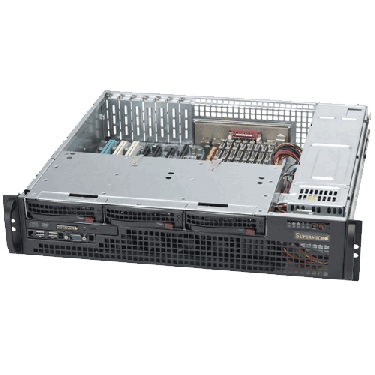

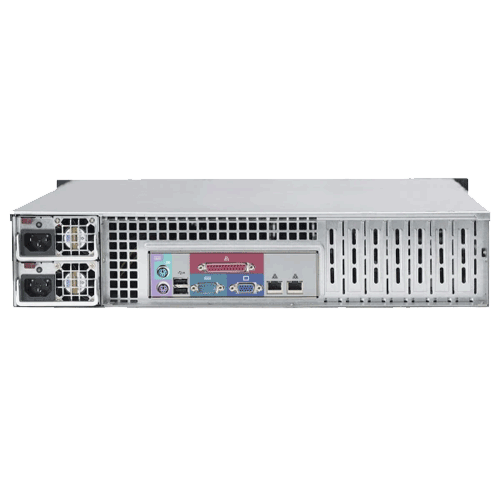

Supermicro 2U Chassis CSE-825MTQ-R700LPB
|
Product SKU
| |
|---|---|
| CSE-825MTQ-R700LPB | • SuperChassis 825MTQ-R700LPB |
|
Form Factor
| |
|---|---|
| • 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards | |
| Processor Support
|
|
|---|---|
| • Dual and Single Intel® and AMD processors | |
|
Dimension
| |
|---|---|
| Height | • 3.5" (89 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 17.7" (450 mm) |
| Gross Weight | • 43 lbs (19.5 kg) |
| Colot |
• Black |
|
Expansion Slots
| • 7 low-profile expansion slot(s) |
|---|
|
Drive Bays
| • 3 x 3.5" hot-swap SAS/SATA |
|---|
|
Backplane
| • 3-port SC825M TQ (W/ AMI 9071) backplane, support up to 3x 3.5-inch SAS/SATA HDD |
|---|
|
Peripheral Drives
| • 1 x slim DVD-ROM drive bay • 2 x USB 2.0 ports • 1 x COM port tray |
|---|
|
Front Panel
| Buttons | • Power On/Off button • System Reset Button |
LEDs |
• 2 Network Activity LEDs • HDD activity LED • Power Status LED • Power Fail LED • System Information LED |
|---|
|
System Cooling
| |
|---|---|
| Fans | • 4 x 40x56mm counter-rotation PWM fan(s) |
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 700W hot swap redundant power supply. |
|
| Power Efficiency | • 89% |
| Total Output Power and Input |
• 700W with Input 100 - 240Vac |
| AC Input Frequency | • 50-60Hz |
| Dimensions (L x W x H) |
• 345 x 76 x 40 mm |
| Output Type | • Backplanes (gold finger) |
| +12V | • Max: 58A / Min: 0.5A (100Vac - 240Vac) |
| +5Vsb | • Max: 4A / Min: 0A |
| Power Distributor | • PDB-PT825-8824 |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
