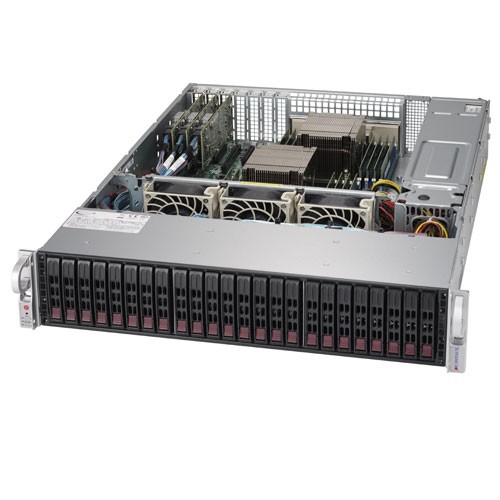

SuperServer SSG-2028R-ACR24H
Supermiro SSG-2028R-ACR24H 2U Storage Rackmount Server Barebone with 920W Redundant Power Supplies Platinum Level (94%), Intel Xeon E5-2600 v3/v4 family, 24x 2.5"
Hot-swap SAS3/SATA3 drive bays.
Hot-swap SAS3/SATA3 drive bays.
Product SKU |
|
|---|---|
| SSG-2028R-ACR24H | • SuperServer 2028R-ACR24H (Black) |
Motherboard |
|
|---|---|
| Super X10DRH-iT | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required |
* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
System Memory |
|
|---|---|
| Memory Capacity |
• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SAS | • SAS3 (12Gbps) via LSI 3108 AOC; HW RAID • 3 LSI 3108 controller • RAID 0, 1, 5, 6, 10, 50, 60 |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Controllers | • Intel® X540 Dual Port 10GBase-T |
| Graphics | • ASPEED AST2400 BMC |

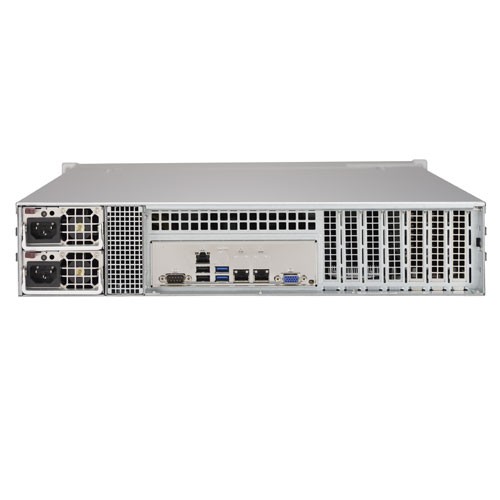

Input/Output |
|
|---|---|
| LAN |
• 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (rear) • 1 Type A |
| Video | • 1x VGA port |
| Serial Port/Header | • 1 Fast UART 16550 port / 1 Header
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-216BAC-R920LPB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 24.8" (630mm) |
| Weight | • 61 lbs (27.7 kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED |
Expansion Slot |
|
|---|---|
| PCI-Express | • 1 PCI-E 3.0 x16 slot • 6 PCI-E 3.0 x8 slots • Slot 1-3 occupied by RAID controller |
Drive Bays |
|
|---|---|

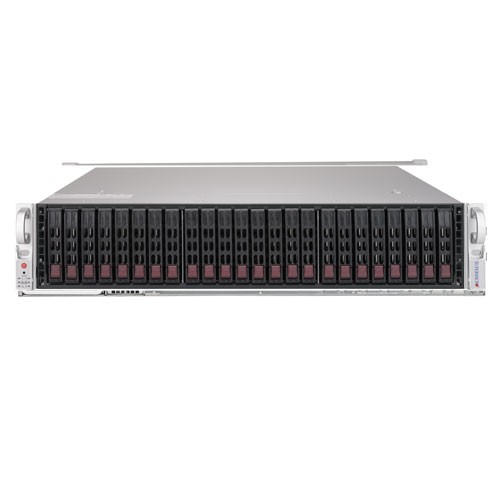

| Hot-Swaps | • 24x 2.5" Hot-swap SAS3/SATA3 HDD bays |
| Optional | • 2x 2.5" Hot-swap SATA HDD bays (rear) |
Backplane |
|
|---|---|
| • SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots | |
System Cooling |
|
|---|---|
| Fans | • 3x 8cm hot-swap redundant PWM cooling fans |
Power Supply |
|
|---|---|
| 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Ouput | • 4 Amp @ +5V standby • 75 Amp @ +12V |
| Certification | • Platinum Certified (94%) |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
