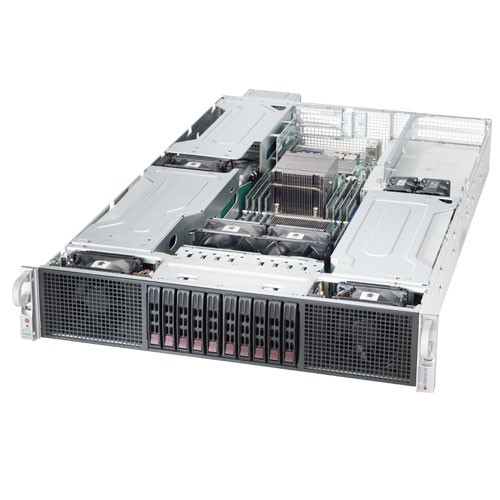

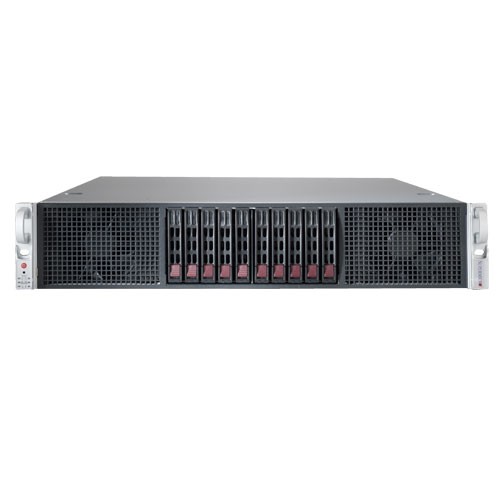

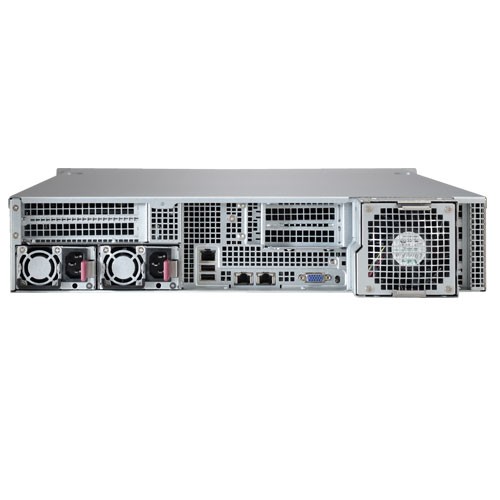

X10DRG-HT Server motherboard and CSE-218GH-R2K03B 2U Rackmount Chassis.
Product SKU |
|
---|---|
SYS-2028GR-TR | • SuperServer 2028GR-TR (Black) |
Motherboard |
|
---|---|
Super X10DRG-HT |
Processor/Cache |
|
---|---|
CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * |
Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
System Bus | • QPI up to 9.6 GT/s |
Note | • † BIOS version 2.0 or above is required |
* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
GPU/Xeon Phi Support | • K1/K2/K10/K40/K80/M40/M60/Xeon Phi |
System Memory |
|
---|---|
Memory Capacity |
• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM |
Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
Memory Voltage | • 1.2 V |
Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
---|---|
Chipset | • Intel® C612 chipset |
SATA | • Intel C612 Controller • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
Network Connectivity | • Intel® X540 Dual Port 10GBase-T |
Graphics | • ASPEED AST2400 BMC |
Input/Output |
|
---|---|
SATA | • 10x SATA3 (6Gbps) ports |
LAN |
• 2x RJ45 10GBase-T ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 4x USB 3.0 ports (2 rear, 2 via header) • 2x USB 2.0 ports (2 via headers) |
Video | • 1x VGA Connector |
Serial Port | • 1x Serial header |
System Bios |
|
---|---|
Bios Type | • 128Mb SPI Flash EEPROM with AMI® BIOS |
Bios Features | • Plug and Play (PnP)
|
Chassis |
|
---|---|
Form Factor | • 2U Rackmount |
Model | • CSE-218GH-R2K03B |
Dimension and Weight |
|
---|---|
Height | • 3.5" (89mm) |
Width | • 17.2" (437mm) |
Depth | • 31" (787mm) |
Gross Weight | • 54 lbs (24.5 kg) |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED |
Expansion Slot |
|
---|---|
PCI-Express | • 4x PCI-E 3.0 x16 slots
(support GPU/Xeon Phi cards, option) • 1x PCI-E 3.0 x8 (in x16) low-profile slot |
Drive Bays |
|
---|---|
Hot-Swaps | • 10x 2.5" Hot-swap drive bays |
System Cooling |
|
---|---|
Fans | • 5x 8cm heavy duty fans with optimal fan speed control |
Power Supply |
|
---|---|
2000W 1U Redundant Power Supplies with PMBus | |
Total Output Power | • 1000W/1800W/1980W/2000W |
Dimension (W x H x L) | • 73.5 x 40 x 265 mm |
Input | • 100-120Vac / 11.8-9.8A / 50-60Hz • 200-220Vac / 10-9.5A / 50-60Hz • 220-230Vac / 10-9.8A / 50-60Hz • 230-240Vac / 10-9.8A / 50-60Hz • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) |
+12V | • Max: 83.3A / Min: 0.1A (100-120Vac) • Max: 150A / Min: 0.1A (200-220Vac) • Max: 165A / Min: 0.1A (220-230Vac) • Max: 166.7A / Min: 0.1A (230-240Vac) • Max: 166.7A / Min: 0.1A (200-240Vac) (UL/cUL only) |
12V SB | • Max: 3.5A / Min: 0A |
Output Type | • 25 Pairs Gold Finger Connector |
Certification | • Platinum Certified |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. • 5 Phase-switching voltage regulator |
FAN | • Total of five 4-pin PWM fans • 5x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 10x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI |
LED | • Power Fail / Overheat LED • Suspend-state Indicator LED • UID LED |
Other Features | • SDDC SupportS 2.3 |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. | • Operating Temperature:
5°C to 40°C (41°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
