Details

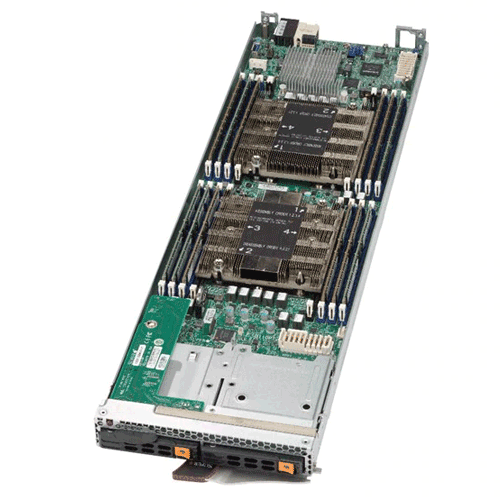

Supermicro 2-Socket Blade SBI-4429P-T2N
|
Product SKU
| |
|---|---|
| SBI-4429P-T2N | • Processor Blade SBI-4429P-T2N (Black) |
|
Motherboard
| |
|---|---|
| • Super B11DPT-P | |
| Processor/Cache
|
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s • Support CPU TDP up to 165W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
|
System Memory
| |
|---|---|
| Memory Capacity | • 16 DIMM slots • Up to 512GB VLP Registered ECC DDR4 |
| Memory Type | • 2666/2400MHz ECC DDR4 |
|
On-Board Devices
| Chipset | • Intel® C622 chipset |
|---|---|
| SATA | • SATA3 (6Gbps) via Intel C622; RAID 0, 1 |
| Network Controllers | • Dual 10G onboard |
| IPMI | • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| Graphics |
• Aspeed AST2500 BMC |
|
System BIOS
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI® BIOS | BIOS Features | • Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support |
|---|
|
Dimension and Weight
| |
|---|---|
| Height | • 6.5" |
| Width | • 1.2" |
| Depth | • 23.5" |
| Weight | • 9.5 lbs (4.3 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | • Power LED |
| Connector | • r SUV (Serial/USB/Video) & KVM Connector |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 2 Hot-Plug 2.5" NVMe or 2 SATA3 drive bays |
| M.2 | • 1 PCI-E x4 M.2 |
|
Input/Output
| |
|---|---|
| TPM |
• 1 TPM Header |
|
Operating Environment
| |
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec . |
• Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) |
