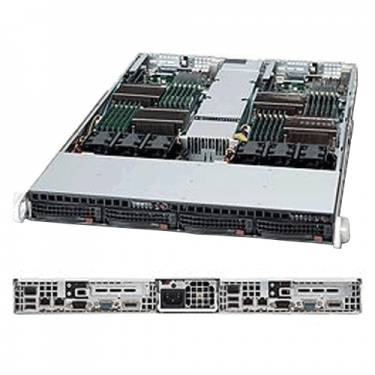

Supermicro 1U Twin Multi-Node Rackmount SYS-6016TT-IBXF

Call for price.

SKU:SYS-6016TT-IBXF

Quick Overview:

Key Features:
Two systems (nodes) in a 1U form factor. Each node supports the following:
• Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
• Up to 192GB DDR3 1333/ 1066/ 800MHz ECC Registered DIMM/
48GB Unbuffered DIMM
• 1 (x16) PCI-E ( Low Profile)
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Mellanox ConnectX-2 DDR Infiniband 20Gbps Controller w/ QSFP connector
• Intel® 82576 Dual-Port Gigabit Ethernet Controller
• 2x Hot-swap SATA Drive Bays
• 1200W Gold-level High-efficiency Power Supply

Description

Details

SuperServer SYS-6016TT-IBXF 1U Rackmount

Supermicro SYS-6016TT-IBXF 1U Rackmount with 1200W Gold-level High-efficiency Power Supply, Intel® 5520 (Tylersburg) chipset support 2x 3.5" SATA Hot-swap drive bays,using
Supermicro Super X8DTT-IBXF + Super X8DTT-IBXF Motherboard and CSE-808T-1200B 1U Rackmount Chassis

Product SKU
SYS-6016TT-IBXF	• SuperServer 6016TT-IBXF (Black)

Motherboard
	Super X8DTT-IBXF + Super X8DTT-IBXF

Processor/Cache
CPU	• Dual 1366-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Intel® Xeon® Processor X5600/E5600/L5600 Series (Westmere) 40W - 130W • Intel® Xeon® Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
QPI	• up to 6.4 GT/s

System Memory
Memory Capacity	• 12x 240-pin DIMM slots • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory • Memory Mirroring supported
Memory Type	• 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage	• 1.5 V / 1.35V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices (per node)
Infiniband	• Mellanox ConnectX-2 QDR Infiniband 20Gbps Controller
Chipset	• Intel® 5520 (Tylersburg) chipset • ICH10R + IOH-36D
SATA	• Intel ICH10R SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support (Windows)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Controllers	• Intel® 82576 Dual-Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT 3 support for fast, scaleable, and reliable networking • VMDq support for better performance of virtualization • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• Matrox G200eW 16 MB DDR2
Super I/O	• Winbond W83527HG chip
Clock Generator	• 932S421 chip

Input/Output (per node)
Serial ATA	• Six Serial ATA ports • Six SATA hard drives supported
LAN	• 2x RJ45 LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2 rear + 1 header (2 Ports) • 4 total USB ports, 2.0 Compliant / 1.1 Compliant
VGA	• 1x VGA Port
Serial Port	• 1 Fast UART 16550 serial port
Infiniband	• 1 External QSFP Infiniband Connector

System Bios (per node)
Bios Type	• 32Mb SPI Flash EEPROM with AMI® BIOS
Bios Features	• Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support

System Bios (per node)

Bios Type

• 32Mb SPI Flash EEPROM with AMI® BIOS

Bios Features

• Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-808T-1200B

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 27.75" (705mm)
Weight	• 40 lbs (18.1kg)
Available Color	• Black

Front Panel (per node)
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED

Expansion Slots (per node)
PCI-Express	• 1 (x16) PCI-E ( Low Profile)

Drive Bays (per node)
Hot-Swap	• 2x 3.5" SATA Hot-swap drive bays

SATA Backplane
	• 1U SATA Backplane

System Cooling
Fans	• 6x Cooling Fans

Power Supply
	1200W high-efficiency power supply with PMBus
AC Input	• 1000W Output @ 100-140V, 11.5-8A, 50-60Hz • 1200W Output @ 180-240V, 8-5.5A, 50-60Hz
DC Output	• 1000W: +12V/83A; +5Vsb/4A • 1200W: +12V/100A; +5Vsb/4A
Certification	• Gold Certified

Management
Software	• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support • SuperDoctor® III • Watch Dog • NMI
Power Configuration	• ACPI Power Management • Main Switch Override Mechansim • Power-on mode for AC power recovery

PC Health Monitoring
CPU	• Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. • CPU Core 6-Phase-switching voltage regulator
FAN	• Total of four 4-pin PWM fans • 4x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 4x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• Power Fail / Overheat LED • Suspend-state Indicator LED • UID LED
Other Features	• SDDC Support

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 5°C to 35°C (41°F to 95°F) • Non-operating Temperature: -40°to 70°C (-40°to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
