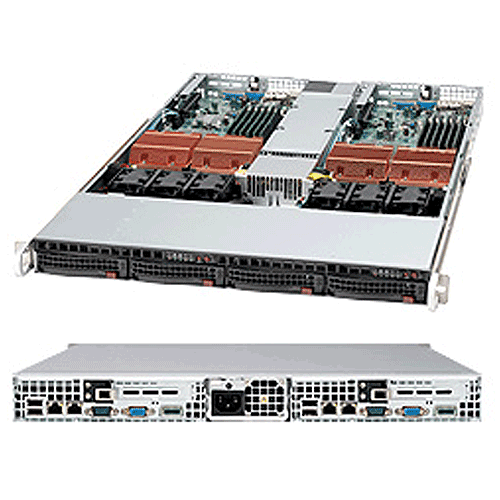

Supermicro 1U Twin Multi-Node Rackmount SYS-6015TC-TB Server

Call for price.

SKU:SYS-6015TC-TB

Quick Overview:

Key Features:
Two systems (nodes) in a 1U form factor. Each node supports the following:
• Quad & Dual Core Intel® 64-bit Xeon® Support 1333 / 1066 MHz FSB
• Up to 48GB 667/533MHZ DDR2 ECC Registered DIMM
• 1 (x16) PCI-e slot (Low Profile)
• Intel® 82573V + 82573L Gigabit Ethernet Controller
• 2x Hot-swap SATA Drive Bays
• 780W High-efficiency Power Supply

Description

Details

SuperServer SYS-6015TC-TB 1U Rackmount

Supermicro SYS-6015TC-TB 1U Rackmount with 780W High-efficiency Power Supply, Intel® 5100 (San Clemente) chipset, support 2x 3.5" SATA Hot-swap drive bays,using
Super X7DCT + Super X7DCT Motherboard and SC808T-780 Rackmount Chassis

Product SKU
SYS-6015TC-TB	• SuperServer 6015TC-TB (Black)

Motherboard
	Super X7DCT + Super X7DCT

Processor/Cache
CPU	• Dual 771-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz • Dual-Core Intel® Xeon®Processor 5200/5100 sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz
System Bus	• 1333 / 1066 MHz system bus
Operating System Software	• Supports 64-bit Operating Systems • Supports 32-bit Operating Systems

System Memory (per node)
Memory Capacity	• Six 240-pin DIMM sockets • Supports up to 48 GB 667/533MHz DDR2 ECC Register DIMM memory • Dual channels memory bus
Memory Type	• 677/533MHzECC Register DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 1GB, 2GB, 4GB, 8GB**
Memory Voltage	• 1.8V only
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices (per node)
Chipset	• Intel® 5100 (San Clemente) chipset • Intel® ICH9R SB
SATA	• Intel ICH9R SB SATAII Controller • RAID 0, 1, 5, 10 support (Windows only) • RAID 0, 1, 10 support (Linux)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 / 1.5 • 200-pin IPMI slot (SIMSO(+)) • (Optional: AOC-SIMSO(+)) • KVM feature is available with dedicated LAN only
Network Controllers	• Intel® 82573V & 82573L Gigabit Ethernet Controllers • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics	• ATI ES1000 controller with 32 MB of video memory
Super I/O	• Winbond W83627HG chip
Clock Generator	• ICS9LPR501 chip

Input/Output (per node)
Serial ATA	• Four Serial ATA ports • Four SATA hard drives supported
LAN	• 2x RJ45 LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x RJ45 LAN ports
VGA	• 1x VGA Port
Serial Port / Header	• 1 Fast UART 16550 serial port

System Bios
Bios Type	• 16Mb SPI Flash with Phoenix ® BIOS
Bios Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 1.0/2.0/3.0 • USB Keyboard support • Hardware BIOS Virus protection

System Bios

Bios Type

• 16Mb SPI Flash with Phoenix ® BIOS

Bios Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 1.0/2.0/3.0
• USB Keyboard support
• Hardware BIOS Virus protection

Chassis
Form Factor	• 1U Rackmount
Model	• SC808T-780

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 27.75" (705mm)
Weight	• 40 lbs (18.1kg)
Available Color	• Black

Front Panel (per node)
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED

Expansion Slots (per node)
PCI-Express	• 1 (x16) PCI-e slot (Low Profile)

Drive Bays (per node)
Hot Swap	• 2x 3.5" SATA Hot-swap drive bays

SATA Backplane
	• 1U SATA Backplane

System Cooling
Fans	• 6x Cooling Fans

Power Supply
	780W AC to DC power supply w/ PFC
AC Input	• 100-240V, 60-50Hz, 9.5-3.5Amp
+5V sb	• 4 Amp
+12V	• 65 Amp @ 180-240Vac • 58 Amp @ 100-140Vac

Management
Software	• Optional IPMI (Intelligent Platform Management Interface) 1.5 / 2.0 • SuperDoctor® III • Watch Dog • NMI
Power Configuration	• ACPI Power Management • Main Switch Override Mechanism • Power-on mode for AC power recovery

PC Health Monitoring
CPU	• Monitors for CPU Cores,+1.5V, +3.3V, +5V, ±12V, +5 Stdby, VBAT • CPU Core 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	• Total of three 4-pin fans • 3x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• CPU / System Overheat LED • Suspend-state Indicator LED
Other Features	• SDDC Support

Operating Environment / Compliance
RoHS	• RoHS Compliant 5/6, Server Exemption
Environmental Spec.	• Operating Temperature: 10° to 35°C (50° to 95°F) • Non-operating Temperature: -40° to 70°C (-40° to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)
