Details

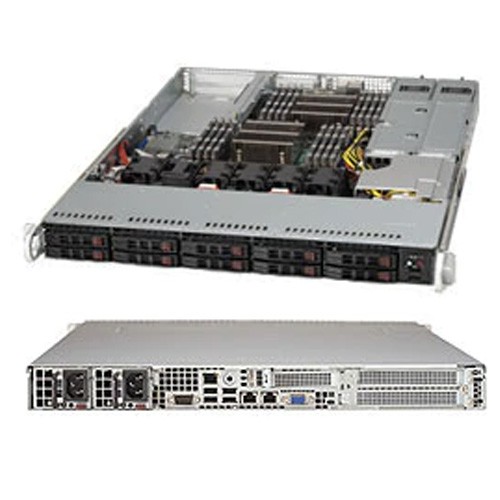

Supermicro 1U SuperChassis CSE-116AC-R700WB
|
Product SKU
| |
|---|---|
| CSE-116AC-R700WB | • SuperChassis 116AC-R700WB |
|
Form Factor
| |
|---|---|
| • 1U chassis for motherboard support size of E-ATX 12"x13", 13.38"x 13.4" • Optimized for WIO (W series) motherboards |
|
| Processor Support
|
|
|---|---|
| • Dual, single Intel® / AMD processors | |
|
Dimensions
| |
|---|---|
| Height | • 1.7" (43 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 23.5" (597 mm) |
| Gross Weight | • 36 lbs (16.33 kg) |
| Available Color | • Black |
|
Expansion Slots
| • 2 full-height & full-length expansion slot(s) • 1 low-profile expansion slot(s) |
|---|
|
Drive Bays
| • 10 x 2.5" hot-swap SAS/SATA drive bay |
|---|
|
Backplane
| • 10-port 1U SAS3 12Gbps direct-attached backplane, support up to 10x 2.5-inch SAS3/SATA3 HDD/SSD |
|---|
|
Front Panel
| Buttons | • Power On/Off button • Unit Identification (UID) button |
LEDs
|
• 2 Network Activity LEDs • HDD activity LED • Power Status LED • Unit Identification (UID) LED |
|---|
|
Motherboard (for CSE- 116AC-R700WB)
| |
|---|---|
| • X9DRW-CF31 • X10SRW-F • X9DRW-CTF31 |
|
|
Servers (for CSE- 116AC-R700WB)
| |
|---|---|
| • 1027R-WC1R • 1028R-WC1R • 1027R-WC1RT |
|
|
System Cooling
| |
|---|---|
| Fans | • 4 x 40x56mm counter-rotation PWM fan(s) |
|
System Monitoring
| |
|---|---|
• Chassis intrusion switch |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 700/750W hot swap redundant power supply |
|
| Power Efficiency | • 92% |
| Total Output Power and Input |
• 700W with Input 100 - 140Vac |
| AC Input Frequency |
• 50-60Hz |
| Dimensions (L x W x H) |
• 320 x 54.5 x 40.25 mm |
| Output Type | • Backplanes (gold finger) |
| +12V | • Max: 58A / Min: 0.5A (100Vac - 140Vac) |
| +5Vsb | • Max: 3A / Min: 0A |
| Power Distributor | • PDB-PT112-2420 |
| Certification | • Gold Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
