SuperServer SYS-8017R-TF+

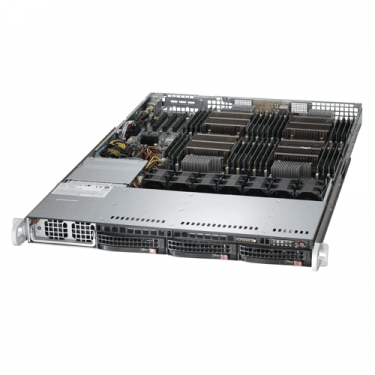

Supermicro 8017R-TF+ 1U Rackmount Server Barebone
Product SKU |
|
|---|---|
| SYS-8017R-TF+ | • SuperServer 8017R-TF+ (Black) |
Motherboard |
|
|---|---|
| Super X9QRi-F+ | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-4600 v2
(12-Core)** or E5-4600 (8-Core)
family (up to 130W CPU at 35°C) ** BIOS rev. 3.0 or above is needed to support Ivy Bridge-EP 4S. |
| Cache | • Up to 30MB. |
| System Bus | • QPI up to 8 GT/s |
System Memory |
|
|---|---|
| Memory Capacity |
• 32x 240-pin DDR3 DIMM slots • Supports up to 1TB DDR3 ECC Registered memory (RDIMM) in 32 DIMM slots |
| Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602 chipset |
| SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5 • SATA 3.0 6Gbps with RAID 0, 1 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Connectivity | • Intel® i350 Dual port GbE LAN |
| Graphics | • Matrox G200eW (Nuvoton WPCM450 BMC) |
| Super I/O | • Nuvoton W83527HG |
Input/Output |
|
|---|---|
| SATA | • 2x SATA 3.0 ports (6Gbps) |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x dedicated LAN port for IPMI |
| USB | • 4x USB 2.0 rear ports |
| Video | • 1x VGA Port |
| Serial Port/Header | • 1 Fast UART 16550 serial port |
System Bios |
|
|---|---|
| Bios Type | • 16MB SPI Flash EEPROM with AMI® BIOS |
| Bios Features |
• Plug and Play (PnP) |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-818A-1K43LPB |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 27.75" (705mm) |
| Gross Weight | • 48.5 lbs |
| Available Colors | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 1x PCI-E 3.0 x16 Low-profile Slot |
Drive Bays |
|
|---|---|
| Hot-swap | • 3x 3.5" Hot-swap SATA3 HDD Bays with RAID 0, 1, 5 (Software RAID) |
Backplane |
|
|---|---|
| • SAS/SATA HDD Backplane (SAS support requires optional SAS controller) | |
Peripheral Drives |
|
|---|---|
| DVD-ROM | • 1x Slim DVD-ROM (Optional) |
System Cooling |
|
|---|---|
| Fans | • 7x 4cm Counter-rotating fans with optimal fan speed control |
| Shroud | • 1x Air Shroud |
Power Supply |
|
|---|---|
| 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 | |
| AC Voltage | • 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz • 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz |
| +5V standby | • 6 Amp |
| +12V | • 100 Amp/115 Vac • 117 Amp/230 Vac |
| With Power Distributor | • +5V: 30 Amp • +3.3V: 25 Amp • -12V: 0.6 Amp |
| Certification | • Platinum Certified |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V |
| FAN | • 4-pin fan headers with tachometer status monitoring • Low noise fan speed control mode |
| Temperature | • Monitoring for CPU and system environment • Thermal Control for 10x fan connectors |
| Other Features | • Chassis intrusion detection |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
