SuperServer SYS-6017TR-TQF

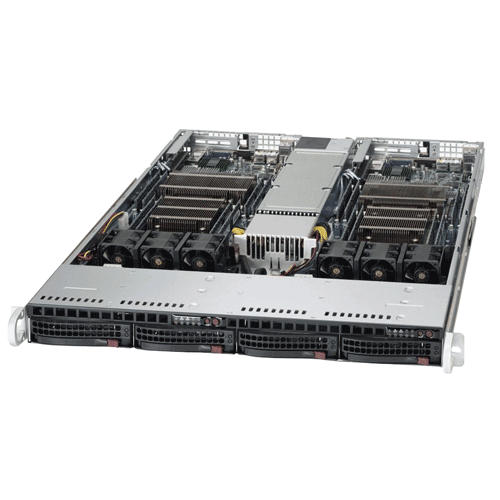

Supermicro 6017TR-TQF 1U Rackmount Server Barebone with 1280W Digital Switching Power Supply Platinum Level (95%), Intel C602J Chipset, 2x 3.5" Hot-swap SATA3 HDD Bays using Supermicro Super X9DRT-IBQF Server Motherboard and CSE-808BT-1K28B 1U Rackmount Server Chassis.
Product SKU |
|
|---|---|
| SYS-6017TR-TQF | • SuperServer 6017TR-TQF (Black) |
Motherboard |
|
|---|---|
| Super X9DRT-IBQF | |
Processor/Cache (per Node) |
|
|---|---|
| CPU | • Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP) |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| Note | • † BIOS version 3.0 or above is required |
| • Please contact WillJaya Technical support for additional information | |
System Memory (per Node) |
|
|---|---|
| Memory Capacity |
• 8x 240-pin DDR3 DIMM slots • Up to 512GB DDR3 ECC LRDIMM • Up to 256GB DDR3 ECC Registered memory (RDIMM) • Up to 64GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type |
• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602J Chipset |
| Infiniband | • Mellanox ConnectX-3 QDR Infiniband 40Gbps Controller |
| SATA | • Via Cable for SATA controller • SATA 2.0 (3Gbps) & 3.0 (6Gbps) with RAID 0, 1 |
| IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Connectivity | • Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | • Matrox G200eW |
Input/Output (per Node) |
|
|---|---|
| Serial SATA |
• 2x SATA 3.0 ports (6Gbps) |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 3x USB 2.0 ports (2x rear + 1x Type A) |
| VGA | • 1x VGA port |
| Serial Port/Header | • 1x Fast UART 16550 ports (rear/header) |
| Infiniband | • 1x external QSFP Infiniband connector |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-808BT-1K28B |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 27.75" (705mm) |
| Gross Weight | • 40 lbs (18.1kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED |
• Power status LED • HDD activity LED • 2x Network activity LEDs • Information LED |
Expansion Slots (per Node) |
|
|---|---|
| PCI-Express | • 1x PCI-E 3.0 x16 Low-profile |
Drive Bays (per Node) |
|
|---|---|
| Hot Swap | • 2x 3.5" Hot-swap SATA HDD trays |
Backplane |
|
|---|---|
| • 1x 1U SAS / SATA backplane | |
System Cooling (per Node) |
|
|---|---|
| Fans | • 3x 4cm counter-rotating fans w/ optimal fan speed control |
Power Suplly w/Digital Switching Control & PMBus 1.2 |
|
|---|---|
| 1280W High-Efficiency (95%+) power supply | |
| AC Input | • 1000W Output @ 100-140V, 12-8A, 50-60Hz • 1280W Output @ 180-240V, 8-6A, 50-60Hz |
| DC Output | • 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A |
| Certification | • Platinum Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
