SuperServer SYS-6017R-TDF+

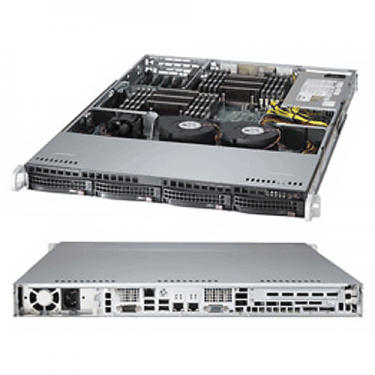

Supermicro 6017R-TDF+ 1U Rackmount Server Barebone with 600W High-efficiency power supply Gold Level Certified, Intel C602J Chipset. 4x 3.5" Hot-swap SATA HDD Bays using
Supermicro Super X9DRD-EF Server Motherboard and CSE-813T-600CB 1U Rackmount Server Chassis.
Supermicro Super X9DRD-EF Server Motherboard and CSE-813T-600CB 1U Rackmount Server Chassis.
Product SKU |
|
|---|---|
| SYS-6017R-TDF+ | • SuperServer 6017R-TDF+ (Black) |
Motherboard |
|
|---|---|
| Super X9DRD-EF | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (60W to 115W TDP) |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| Note | • † BIOS version 3.0 or above is required |
| • Please contact WillJaya Technical support for additional information | |
System Memory |
|
|---|---|
| Memory Capacity |
• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM) |
| Memory Type |
• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602J Chipset |
| SATA | • Via Cable for SATA controller • SATA 2.0 (3Gbps) & 3.0 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Connectivity | • Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | • Matrox G200eW |
Input/Output |
|
|---|---|
| Serial SATA |
• 2x SATA 3.0 ports (6Gbps) |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A) |
| VGA | • 1x VGA port |
| Serial Port/Header | • 2x Fast UART 16550 ports (rear/header) |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-813T-600CB |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.6" (650mm) |
| Gross Weight | • 36 lbs (16.4kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button • UID button |
| LED |
• Power status LED • HDD activity LED • 2x Network activity LEDs • System information (overheat/UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 1x PCI-E 3.0 x16 Full-height, Half-length (Both CPUs need to be installed for full access to PCI-E slots. See manual for details.) |
Drive Bays | 1x 1U SAS / SATA backplane
|
|---|---|
| Hot Swap | • 4x 3.5" Hot-swap SATA HDD trays |
Backplane |
|
|---|---|
| • 1x 1U SAS / SATA backplane | |
System Cooling |
|
|---|---|
| Fans |
• 2x blower fans • 1x 40 x 28mm 13K RPM 4-pin fan |
Power Suplly |
|
|---|---|
| 600W AC multi output power supply w/ PFC | |
| AC Voltage | • 100-240 V, 50-60 Hz, 7.5-3.1 Amp |
| +5V | • 20 Amp |
| +5V standby | • 3 Amp |
| +12V | • 49 Amp |
| +3.3V | • 16 Amp |
| Certification | • Gold Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
