SuperServer SYS-6017R-MTLF

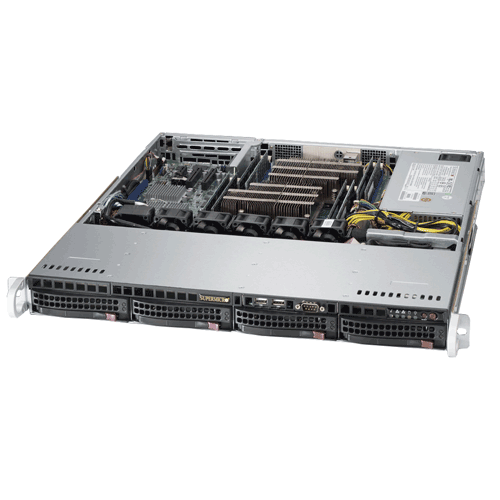

Supermicro 6017R-MTLF 1U Rackmount Server Barebone with 440W High-efficiency Power Supply Platinum Level Certified, Intel C602J Chipset, 4x 3.5" Hot-swap SATA HDD Bays using
Supermicro Super X9DRL-EF Server Motherboard and CSE-813MFTQ-441CB 1U Rackmount Server Chassis.
Supermicro Super X9DRL-EF Server Motherboard and CSE-813MFTQ-441CB 1U Rackmount Server Chassis.
Product SKU |
|
|---|---|
| SYS-6017R-M7UF | • SuperServer 6017R-MTLF (Black) |
Motherboard |
|
|---|---|
| Super X9DRL-EF | |
Processor/Cache (per Node) |
|
|---|---|
| CPU | • Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (60W to 115W TDP) |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| Note | • † BIOS version 3.0 or above is required |
| • Please contact WillJaya Technical support for additional information | |
System Memory (per Node) |
|
|---|---|
| Memory Capacity |
• 8x 240-pin DDR3 DIMM slots • Up to 512GB DDR3 ECC LRDIMM • Up to 256GB DDR3 ECC Registered memory (RDIMM) • Up to 64GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM) |
| Memory Type |
• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602J Chipset |
| SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1 |
| SAS | • SAS (6Gbps) via LSI 2208 • HW RAID 0, 1, 10 support |
| IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Connectivity | • Intel® i210 Gigabit Ethernet • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201F PHY (dedicated IPMI) |
| Graphics | • Matrox G200eW |
Input/Output (per Node) |
|
|---|---|
| SATA |
• 2x SATA 3.0 ports (6Gbps) |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 7x USB 2.0 ports total (4 rear + 2 via header + 1 Type A) |
| VGA | • 1x VGA port |
| Serial Port/Header | • 2x Fast UART 16550 serial COM ports |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-813MFTQ-441CB |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 19.8" (503mm) |
| Gross Weight | • 36 lbs (16.33kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED |
• Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express | • 1x PCI-E 3.0 x8 Full-height Half-length |
Drive Bays |
|
|---|---|
| Hot Swap | • 4x 3.5" Hot-swap SATA HDD trays |
SATA Backplane |
|
|---|---|
| • 1U SATA HDD Backplane | |
System Cooling |
|
|---|---|
| Fans | • 5x 4cm 17,500 RPM PWM fans |
Power Suplly |
|
|---|---|
| 440W/480W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC | |
| AC Input | • 100-140V, 50-60Hz, 5.5-4A • 180-240V, 50-60Hz, 3.5-2.5A |
| DC Output | • +3.3V: 15A • +5V: 18A • +5V standby: 3A • +12V: 35.8A at 100-140Vac, 39.1A at 180-240Vac |
| Certification | • Platinum Certified (94%) |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
