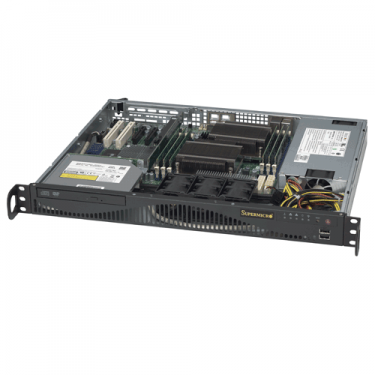

Supermicro 1U Rackmount SYS-6016T-MR - Angle

More Views

Supermicro 1U Rackmount SuperServer SYS-6016T-MR

Call for price.

SKU:SYS-6016T-MR

Quick Overview:

Key Features:
• 14-inch short depth server
• Intel® Xeon® processor 5600/5500 series, with QPI up to
6.4 GT/s
• Up to 48GB** DDR3 1333/ 1066/ 800MHz ECC Registered / 24GB
Unbuffered DIMM
• 1 (x8) PCI-E 2.0 (1 in x16 slot)
• Dual Intel® 82574L Gigabit Ethernet Controller
• 1x 3.5" Internal Drive Bay
• Integrated Matrox G200eW Graphics
• 520W High-efficiency Power Supply

Description

Details

SuperServer SYS-6016T-MR Rackmount

Supermicro SYS-6016T-MR 1U Rackmount with 520W High-efficiency Power Supply, Intel® 5500 (Tylersburg) chipset Support 1x 3.5" internal drive bay,using Supermicro
Super X8DTL-i Motherboard and SC512F-520 Rackmount Chassis

Product SKU
SYS-6016T-MR	• SuperServer 6016T-MR (Black)

Motherboard
	Super X8DTL-i

Processor/Cache
CPU	• Dual 1366-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Intel® Xeon® Processor X5600/E5600/L5600 Series (Westmere) 40W - 95W • Intel® Xeon® Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
QPI	• up to 6.4 GT/s

System Memory
Memory Capacity	• 6x 240-pin DIMM slots • Supports up to 48 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory • Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory • Memory Mirroring supported
Memory Type	• 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 1GB, 2GB, 4GB , 8GB
Memory Voltage	• 1.5 V / 1.35V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® 5500 (Tylersburg) chipset • ICH10R + IOH-24D
SATA	• Intel ICH10R SATA 3.0Gbps Controller • RAID 0 support
Network Controllers	• 2x Intel® 82574L Gigabit Ethernet Controllers • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	• Matrox G200eW 8 MB DDR2
Super I/O	• Winbond 83827HF chip

Input/Output
Serial ATA	• Six Serial ATA ports • Six SATA hard drives supported
LAN	• 2x RJ45 LAN ports
USB	• 2x USB rear ports • 1x USB on-board • 2x USB internal headers • Total 6 USB 2.0 Compliant
VGA	• 1x VGA Port
Keyboard / Mouse	• PS/2 keyboard and mouse ports
Serial Port / Header	• 1 Fast UART 16550 serial port • 1 Fast UART 16550 serial header (Option)

Chassis
Form Factor	• 1U Rackmount
Model	• SC512F-520

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 14.5" (369mm)
Weight	• 20 lbs (9.1kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED

Expansion Slots
PCI-Express	• 1x (x8) PCI-E 2.0 (1 in x16 slot)

Drive Bays
Internal Bay	• 1x 3.5" internal drive bay

Peripheral Drives
DVD-ROM	• Slim 8x DVD / 24x CD-ROM Drive

System Cooling
Fans	• 3x 4cm 4-Pin Counter-rotating Fans

Power Supply
	520W AC to DC power supply w/ PFC
AC Voltage	• 100 - 240V, 50 - 60Hz, 7 - 3Amp
+5V	• 20 Amp
+5V standby	• 3 Amp
+12V	• 39 Amp
-12V	• 0.5 Amp
+3.3V	• 16 Amp

System Bios
Bios Type	• 32Mb SPI Flash EEPROM with AMI® BIOS
Bios Features	• Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support

Operating Environment / Compliance
RoHS	• RoHS Compliant 6/6, Pb Free
Environmental Spec.	• Operating Temperature: 10° to 35°C (50° to 95°F) • Non-operating Temperature: -40° to 70°C (-40° to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)
