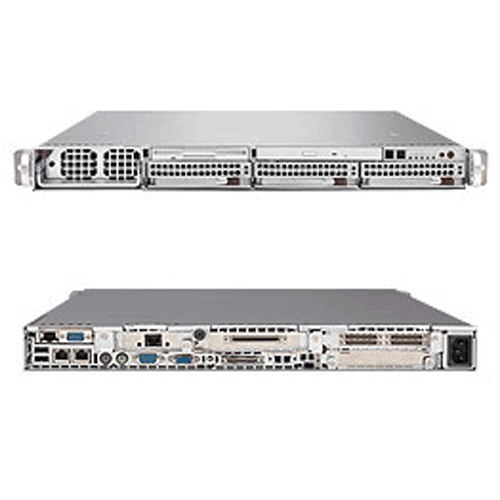

Supermicro SYS-6015X-TV / SYS-6015X-TB 1U Rackmount with 700W High-efficiency Power Supply, Intel® 5000P (Blackford) chipset, support 3x 3.5" Hot-swap SATA drive bays,
using Supermicro Super X7DBX-i Motherboard and SC819TQ-700V(B) (B = Black) Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-6015X-TV | • SuperServer 6015X-TV (Silver) |
| SYS-6015X-TB | • SuperServer 6015X-TB (Black) |
Motherboard |
|
|---|---|
| Super X7DBX-i | |
Processor/Cache |
|
|---|---|
| CPU | • Dual 771-pin LGA Sockets |
| System Bus | • 1333 / 1066 / 667 MHz system bus |
| Operating System Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory |
|
|---|---|
| Memory Capacity |
• Eight 240-pin DIMM sockets • Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory • Dual branch memory bus • Memory must be populated in pairs • Memory Mirroring supported |
| Memory Type | • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 512 MB, 1GB, 2GB, 4GB |
| Memory Voltage | • 1.8V only • 1.5V (AMB) |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® 5000P (Blackford) chipset |
| SATA | • Intel ESB2 SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support (Windows Only) • RAID 0, 1, 10 support (Linux) |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • 200-pin IPMI socket (SIM1U) • (Optional: AOC-SIM1U-3B and AOC-SIM1U-3D) |
| Network Controllers | • Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT support for fast, scaleable, and reliable networking |
| Graphics | • ATI ES1000 controller with 16 MB of video memory |
| Super I/O | • Winbond 83627HG chip |
Input/Output |
|
|---|---|
| Serial ATA | • Six Serial ATA ports • 3 Gbps transfer rate • Six SATA hard drives supported |
| IDE | • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card • Compact Flash (40-pin connector, IDE 1, single channel) slot • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB |
| LAN | • 2x RJ45 LAN ports |
| USB | • 2x USB rear ports |
| VGA | • 1x VGA Port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 1 Fast UART 16550 serial port |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC819TQ-700V(B) (B = Black) |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 19" (483mm) |
| Depth | • 27" (686mm) |
| Weight | • 38.5 lbs (17.5kg) |
| Available Color | • Silver, Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED • UID LED |
Expansion Slots |
|
|---|---|
| Left Universal Slot | • 1 PCI-Express (x8) Slot OR |
| Right Universal Slot | • 1 PCI-Express (x4) Slot OR • 1x 64-bit 133MHz PCI-X (3.3V) Slot • Low-profile |
Drive Bays |
|
|---|---|
| Hot Swap | • 3x 3.5" Hot-swap SATA drive bays |
Peripheral Drives |
|
|---|---|
| DVD-ROM | • Slim 8x DVD, 24x CD, DVD-ROM drive |
SATA Backplane |
|
|---|---|
| • 1U SATA Backplane w/ Enclosure Management |
|
System Cooling |
|
|---|---|
| Fans | • 5x Cooling Fans |
| Shroud | • 1x Air Shroud |
Power Supply |
|
|---|---|
| 700W AC power supply w/ PFC | |
| AC Voltage | • 100 - 240V, 50-60Hz, 10 - 4 Amp |
| +5V stand by | • 4 Amp |
| +12V | • 57 Amp |
| +5V | • 20 Amp |
| +3.3V | • 20 Amp |
| -12V | • 0.6 Amp |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.1 • PCI 2.2 • ACPI 1.0 • USB Keyboard support • Hardware BIOS Virus protection |
Operating Environment / Compliance |
|
|---|---|
| Environmental Spec. | • Operating Temperature: 10° to 35°C (50° to 95°F)
|
