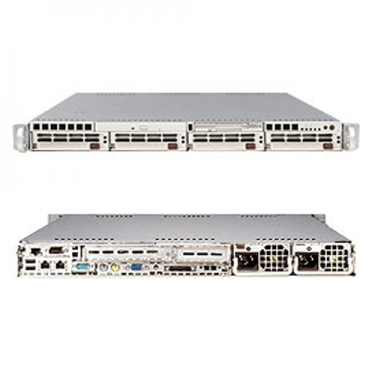

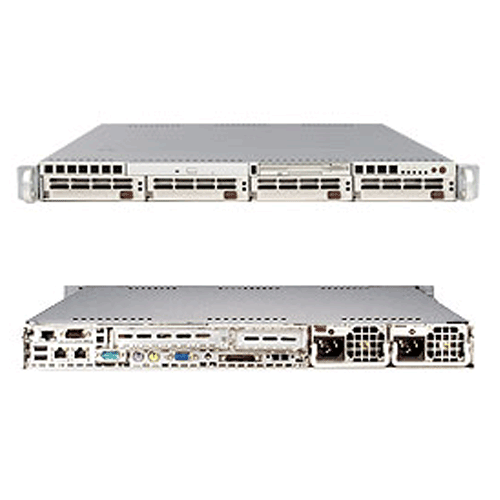

Supermicro 1U Rackmount SuperServer SYS-6015P-TRB

Call for price.

SKU:SYS-6015P-TRB

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 / 1333
MHz FSB
• Up to 32GB 667/533MHz SDRAM Fully Buffered DIMM
• Left Universal Slot: 1 64-bit 100MHz PCI-X OR 1 (x8) PCI-Express
• Right Universal Slot: 1 64-bit 133MHz PCI-X OR 1 (x8) PCI-Express
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• 4 x SATA (3Gb/s) Hot-swap Drive Bays w/ Enclosure Management
• 700W High-efficiency Power Supply

Description

Details

SuperServer SYS-6015P-TR / SYS-6015P-TRB 1U Rackmount

Supermicro SYS-6015P-TR / SYS-6015P-TRB 1U Rackmount with 700W Redundant High-efficiency Power Supply, Intel® 5000P (Blackford) chipset, support 4x 3.5" Hot-swap SATA drive
bays,using Supermicro Super X7DBP-i Motherboard and SC816A-R700 Rackmount Chassis

Product SKU
SYS-6015P-TR	• SuperServer 6015P-TR (Beige)
SYS-6015P-TRB	• SuperServer 6015P-TRB (Black)

Motherboard
	Super X7DBP-i

Processor/Cache
CPU	• Dual 771-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz • Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz
System Bus	• 1333 / 1066 / 667 MHz system bus
Operating System Software	• Supports 64-bit Operating Systems • Supports 32-bit Operating Systems

System Memory
Memory Capacity	• Eight 240-pin DIMM sockets • Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory • Dual branch memory bus • Memory must be populated in pairs
Memory Type	• 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 512 MB, 1GB, 2GB, 4GB
Memory Voltage	• 1.8V only • 1.5V (AMB)
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® 5000P (Blackford) chipset • MCH + PXH + ESB2
SATA	• ESB2 SATA Controller • RAID 0, 1, 5, 10 support (Windows Only) • RAID 0, 1, 10 support (Linux)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • 200-pin IPMI slot (SIM1U) • (Optional: AOC-SIM1U-3B and AOC-SIM1U-3D)
Network Controllers	• Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics	• ATI ES1000 controller with 16 MB of video memory
Super I/O	• Winbond 83627HF chip
Clock Generator	• CK410B chip

Expansion Slots
Left Universal Slot	• 1 (x8) PCI-e slot OR • 1x 64-bit 100MHz PCI-X (3.3V) slot
Right Universal Slot	• 1 (x8) PCI-e slot OR • 1x 64-bit 133MHz PCI-X (3.3V) slot
IPMI	• 1 SIM1U Slot (IPMI 2.0) (Supermicro Intelligent Management)

Input/Output
Serial ATA	• Six Serial ATA ports • Four SATA hard drives supported
IDE	• Single EIDE channels support up to two UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	• 1 Floppy controller; 1.44 MB
LAN	• 2x RJ45 LAN ports
USB	• 2x USB rear ports • 2x USB internal headers, 1 dual, 1 single • USB 2.0 Compliant / 1.1 Compliant
VGA	• 1x VGA Port
Keyboard / Mouse	• PS/2 keyboard and mouse ports
Serial Port / Header	• 2 Fast UART 16550 serial ports

Chassis
Form Factor	• 1U Rackmount
Model	• SC816A-R700

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 27" (686mm)
Weight	• 47 lbs (21.3kg)
Available Color	• Beige, Black

Front Panel
Buttons	• Power On/Off button • UID button
LEDs	• Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED • UID LED
Ports	• N/A

Drive Bays
Hot Swap	• 4x 3.5" Hot-swap SATA drive bays

Peripheral Drives
Floppy	• 3.5" 1.44MB Slim Floppy Drive
DVD-ROM	• Slim 8x DVD-ROM drive

Backplane
	• SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

System Cooling
Fans	• 4x 6-pin Counter-rotating Cooling Fans

Power Supply
	700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage	• 100 - 240V, 60-50Hz, 10 - 4 Amp
+5V stand by	• 4 Amp
+12V	• 57 Amp
With Power Distributor	• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp

PC Health Monitoring
CPU	• Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby, VBAT • CPU Core 5-Phase-switching voltage regulator with auto-sense from 0.86V-1.63V
FAN	• Total of ten proprietary fan headers for up to ten fans • Ten fans with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • I2C temperature sensing logic • Thermal Monitor 2 (TM2) support
LED	• CPU / System Overheat LED
Other Features	• Chassis intrusion detection • Chassis intrusion header • SDDC Support

System Bios
Bios Type	• 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features	• Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.3 • PCI 2.2 • ACPI 1.0 • USB Keyboard support • Fan Speed Control

Operating Environment / Compliance
Environmental Spec.	• Operating Temperature: 10° to 35°C (50° to 95°F) • Non-operating Temperature: -40° to 70°C (-40° to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)

Operating Environment / Compliance

Environmental Spec.

• Operating Temperature: 10° to 35°C (50° to 95°F)
• Non-operating Temperature: -40° to 70°C (-40° to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
