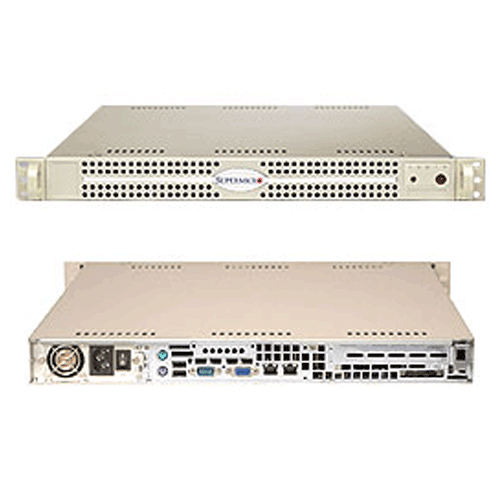

Supermicro 1U Rackmount SYS-6013E-iB

More Views

  • Supermicro 1U Rackmount SYS-6013E-iB

Supermicro 1U Rackmount SuperServer SYS-6013E-iB

Call for price.
SKU:SYS-6013E-iB

Quick Overview:

Key Features:
• Dual Intel® Xeon® Support up to 3.20 GHz
• Up to 4GB DDR 266/200 SDRAM
• 1 x 64-bit 33MHz Full-height, Lull-length PCI Expansion Slot
• 2 x Intel® 82540EM Gigabit Ethernet Ports
• ATI RageXL 8MB PCI Graphic Controller
• 2 x 3.5" Internal IDE Drive Bays
• 350W Power Supply


Details

SuperServer SYS-6013E-i / SYS-6013E-iB 1U Rackmount

Supermicro SYS-6013E-i / SYS-6013E-iB 1U Rackmount with 350W Power Supply,Serverworks™ GC-SL Chipset, 3x 3.5" Internal Drive Bays, using Supermicro Super X5DEi-GG
Motherboard and SC812L-350C Rackmount Chassis


Product SKU
SYS-6013E-i • SuperServer 6013E-i (Beige)
SYS-6013E-iB • SuperServer 6013E-iB (Black)
Motherboard
        Super X5DEi-GG
Processor/Cache
CPU

• Dual mPGA604 ZIF Sockets
• Supports up to two Intel® Xeon® processor(s) with 1MB integrated Advanced Transfer Cache up to 3.20GHz
System Bus • 533MHz/400MHz system bus
System Memory
Memory Capacity • Four 184-pin DIMM sockets
• Supports up to 4 GB DDR266/200 memory
Memory Type • DDR266/200 registered SDRAM 72-bit ECC, 184-pin gold-plated DIMMs
DIMM Sizes • 128MB, 256 MB, 512 MB, 1 GB
Memory Voltage • 2.5 V only
On-Board Devices
Chipset

• Serverworks™ GC-SL Chipset
IPMI • Support for Intelligent Platform Management Interface v.1.5 (Optional)
Network Controllers  • Dual Intel® 82540EM Gigabit Ethernet
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics • ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Expansion Slots
  • 1x full-height, full-length 64-bit 33MHz PCI expansion slot (Riser card required)
Input/Output
IDE • Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
USB • Up to 4 USB ports
Serial Ports • 2 Fast UART 16550 serial ports
Parallel Ports • 1 ECP/EEP parallel port
Floppy

• 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
Keyboard / Mouse • PS/2 keyboard and mouse ports
System Bios
Bios Type • 4Mb Flash EEPROM with AMI® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• APM 1.2
• DMI 2.1
• ACPI 1.0
• BIOS rescue hot keys
• Hardware BIOS virus protection








Chassis
Form Factor • 1U Rackmount
Model • SC812L-350C
Dimension and Weight
Height • 1.7" (43mm)
Width • 16.8" (426mm)
Depth • 25.6" (650mm)
Weight • 35 lbs (15.9 kg)
Available Color • Beige,Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat LED
Ports • none
Drive Bays
Internal Bay

• 3x 3.5" Internal Drive Bays
System Cooling
Fans • 2x 10cm blower fans
Power Supply
  350W AC power supply w/ PFC [ 24-pin, (8-pin=12V) ]
AC Voltage • 100 - 240V, 60-50Hz, 6 Amp
DC Output • 5V + 3.3V ≤ 157W
+5V • 25.0 Amp
+5V stand by • 2.0 Amp
+12V • 25.0 Amp
-12V • 0.8 Amp
+3.3V • 20 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +3.3V, +5V, ±12V, +3.3V Standby
• CPU Core 4-Phase-switching voltage regulator w/ auto-sense from 1.1V-1.85V
• Adjustable CPU clock frequency ratio settings (via Dip Switch)
FAN

• Total of five 3-pin fan headers
• 3x fans with tachometer monitoring
• Overheat backup fan connector
• Status monitor with firmware/software on/off control
Temperature • Monitoring for CPU, chassis, environment
• CPU thermal trip support
LED • CPU Overheat LED
• System Overheat LED
• Suspend-state indicator LED
Other Features

• Chassis intrusion detection
• Chassis intrusion header
