Details

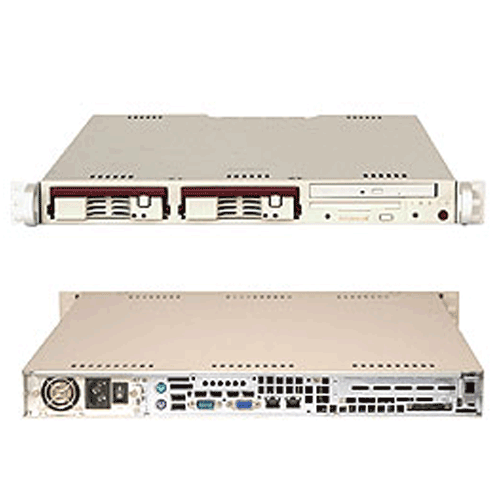

Supermicro SYS-6013A-T / SYS-6013A-TB 1U Rackmount with 350W Power Supply,Intel® E7501 chipset, 2x 3.5"SATA Hot-swap drive bays, using Supermicro Super X5DPA-TGM+
Motherboard and SC811T-350 Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-6013A-T | • SuperServer 6013A-T (Beige) |
| SYS-6013A-TB | • SuperServer 6013A-TB (Black) |
Motherboard |
|
|---|---|
| Super X5DPA-TGM+ | |
Processor/Cache |
|
|---|---|
| CPU | • Dual mPGA604 ZIF Sockets |
| System Bus | • 533MHz/400MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
• Four 184-pin DIMM sockets • Supports up to 8 GB ECC DDR266/200 memory • Dual channel memory bus • Memory must be populated in pairs |
| Memory Type | • DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1 GB, 2 GB |
| Memory Voltage | • 2.5 V only |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® E7501 chipset |
| IPMI | • Support for Intelligent Platform Management Interface v.1.5 (Optional) |
| Serial ATA | • ICH5R SATA controller • Dual Serial ATA ports • RAID 0, 1 Supported (Windows 2000, XP, 2003; RedHat 8.0/9.0; SuSE Linux 8.1/8.2) |
| Network Controllers | • 1x Intel® 82541 Gigabit • 1x Intel® 82551QM 10/100M • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
Expansion Slots |
|
|---|---|
| • 1x full-height, full-length 32-bit 33MHz PCI (5V) expansion slot (Riser card required) | |
Input/Output |
|
|---|---|
| IDE | • Dual EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| USB | • Up to 5 USB ports |
| Serial Ports | • 2 Fast UART 16550 serial ports |
| Parallel Ports | • Port header provided; parallel cable required for parallel port |
| Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
System Bios |
|
|---|---|
| Bios Type | • 4Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP)
|
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC811T-350 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 16.8" (426mm) |
| Depth | • 22.6" (574mm) |
| Weight | • 35 lbs (15.9 kg) |
| Available Color | • Beige,Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED |
| Ports | • none |
Drive Bays |
|
|---|---|
| Hot-swap | • 2x 3.5"SATA Hot-swap drive bays
|
Peripheral Drives |
|
|---|---|
| Floppy | • Panasonic 3.5" 1.44MB Floppy Drive |
| CD-ROM | • TEAC Slim 24x CD-ROM drive |
SATA Backplane |
|
|---|---|
| • 1x 1U Serial ATA backplane | |
System Cooling |
|
|---|---|
| Fans | • 2x 10cm blower fans |
Power Supply |
|
|---|---|
| 350W AC power supply w/ PFC [ 24-pin, (8-pin=12V) ] | |
| AC Voltage | • 100 - 240V, 60-50Hz, 6 Amp |
| DC Output | • 5V + 3.3V ≤ 157W • 12V + 5V + 3.3V ≤ 330W |
| +5V | • 25.0 amp |
| +5V stand by | • 2.0 Amp |
| +12 | • 25 Amp |
| -12V | • 0.8 Amp |
| +3.3V | • 20 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5, ±12V, 3.3V Standby |
| FAN | • Total of five 3-pin fan headers |
| Temperature | • Monitoring for CPU, chassis, environment • CPU thermal trip support |
| LED | • CPU Overheat LED • System Overheat LED • Suspend-state indicator LED |
| Other Features | • Chassis intrusion detection |
